Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SCXK-SMD P3.91 |
| Minimum Order Quantity: | 16sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case。it is up toyou. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm month |
| Application:: | Video | Color:: | Full Color |
|---|---|---|---|
| Model Number:: | P3.9mm Indoor Rental LED Screen | Usage:: | Indoor,Rental |
| Screen Dimension:: | Customized Size | Product Name:: | P3.9 Indoor Rental Led Screen |
| Application:: | Live Events, Concerts, Events, Stages, Trade Shows, School, Shops | Power Supply:: | Meanwell |
| Certificate:: | CE ROHS FCC CCC ISO9001 | ||
| High Light: | led stage display,stage background led screen |
||
P3.91 Indoor Super Slim Rental LED Display for Stage background
♦ Driver IC
Adopt the world top manufacturers’ high refresh rate, high grey scale driver IC under constant current. Perform excellent and stable
♦ LED
Adopt global famous manufacturers’ high-end chips to produce encapsulated LED, providing multi-choices for clients and guarantee the lifetime and quality of screen.
Patented technology SMD2022 RGB 3 in 1 series, white SMD
♦ Product specification
| indoor SMD P3.91 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 43222/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250x250 | |||||||||||||
| View distance | ≥3m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/13 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
| Product overviews | |
| Items | Indoor Led display: P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 Dance floor led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

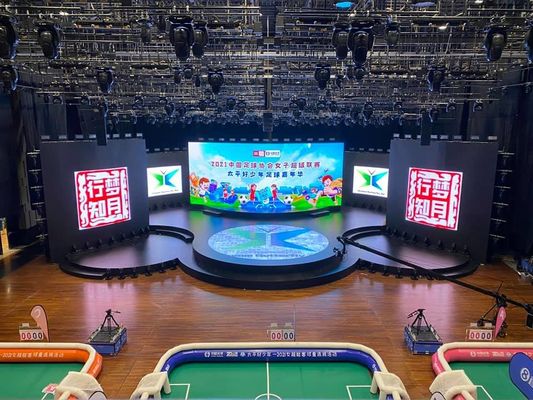

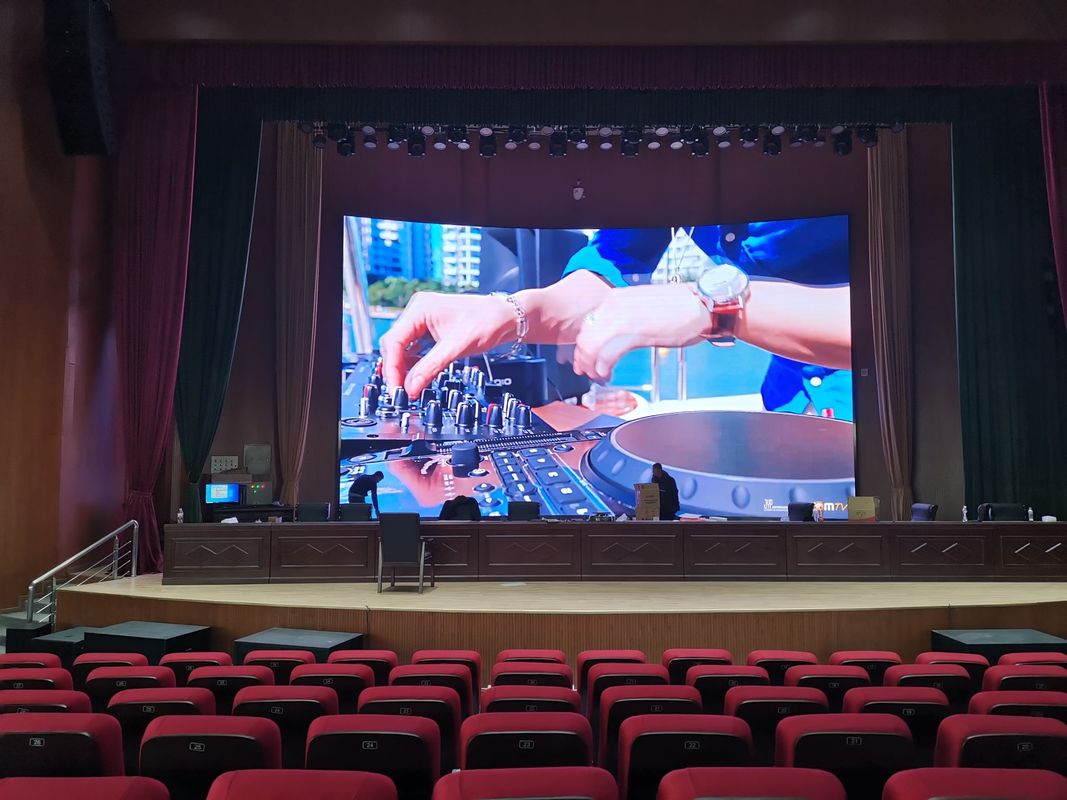

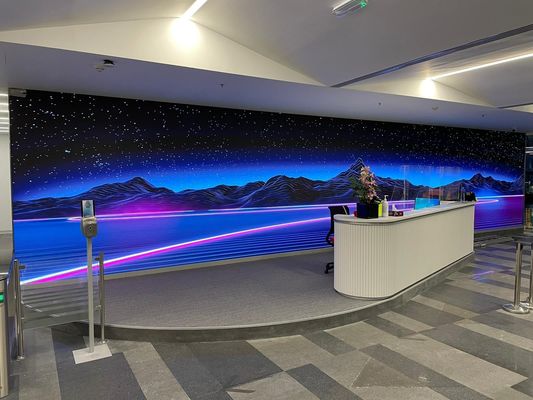

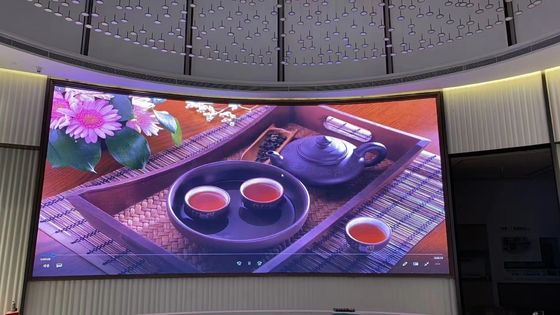

Our case
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.
Small Pixel LED Screen for Clearer Pictures
The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
