Small Pitch Indoor Full Color LED Display SMD P2 P2.5 Low Frequency Current large video screen

Brand Name:	SCX
Model Number:	P2.
MOQ:	1 SQM
Price:	USD 1000-10000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,FCC,SASO

Led Module:

256*128mm

Refresh Rate:

≥3840hz

Module Resolution:

128*64

Pixel Density:

250000

Cabinet Size:

512*512mm

Display Function:

Video

Brightness:

1000cd/sqm

Cabinet Size:

512*512mm*68mm

Packaging Details:

Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm

Highlight:

indoor led billboard

indoor led display screen

Product Description

HD Best price SMD small pixel pitch P2 P2.5 P3 P4 indoor LED screen indoor led display screen led video wall price for concert

Features

1. Use Taiwan Jingyuan first-level LED chips
2. Pure gold wire is used for internal connection of LED
3. The module frame and mask are made of large A-row material
4-layer PCB, copper plating thickness>18mil
5. Stainless steel screws are used for assembly
6. Quick and convenient disassembly and assembly
7. Warranty for 3-5 years
8. Energy saving 60%: low-frequency current drive, heat dissipation roller fan with automatic temperature control device.
9. Service life>11 years;

Specifications

Pixel Spacing	2mm	Model Size(W×H)mm	128x128mm
Model Resolution(W×H)dots	64×64dots	Module Weigh (kg)	0.14kg
(W)Maximum Module Power	17W	Cabinet Size(W×H)mm	512x512mm
Cabinet Composition(W×H)pcs	4x4pcs	Cabinet Resolution(W×H)dots	256×256dots
Cabinet Area(㎡)	0.262144㎡	Cabinet Weight (kg)	9.4KG±0.05kg
Pixel Density /㎡	250000/㎡	Maintenance mode	Post maintenance
Optimal Distance	1m-300m	White Balance Brightness	≧1500cd/㎡
Viewing Angle	≧160	Maximum Power Consumption (W/㎡)	<900W/㎡
Average Power Consumption (W/㎡)	<300W/㎡	Power Supply Requirements	220V±10% & 110V±10%
Drive Mode	Constant current drive :32Saul	Gray level	65536
Refresh rate(HZ)	≥1920HZ	Lifespan(hrs)	>100000 h
Temperature Range(℃/RH)	-35℃-80℃/RH	Humidity Range	10%-80% RH
Safety Standard	CCC, FCC,ROHS,TUV-CE,ETL ,UL...

Detailed Picture

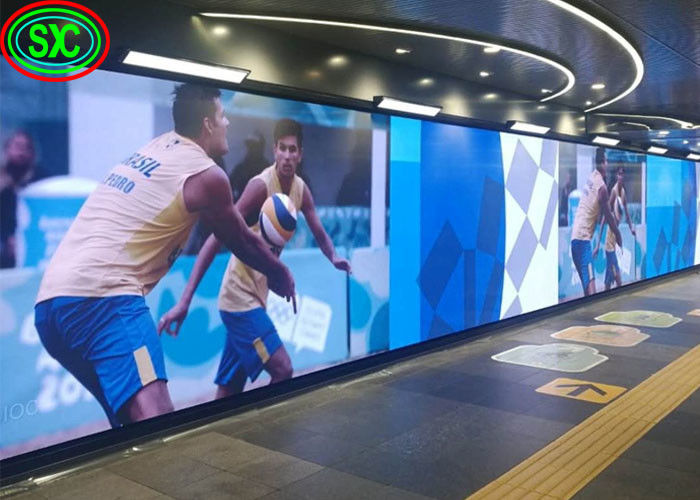

Small Pitch Indoor Full Color LED Display SMD P2 P2.5 Low Frequency Current large video screen 0

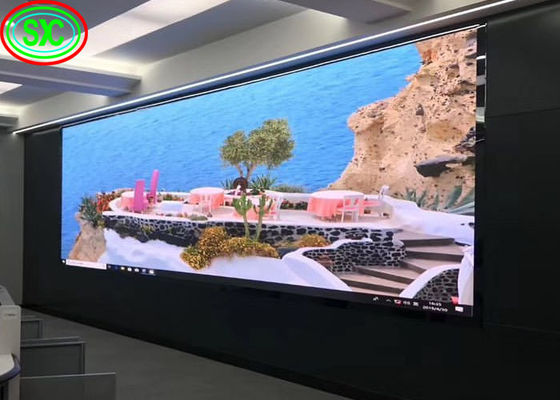

Small Pitch Indoor Full Color LED Display SMD P2 P2.5 Low Frequency Current large video screen 1

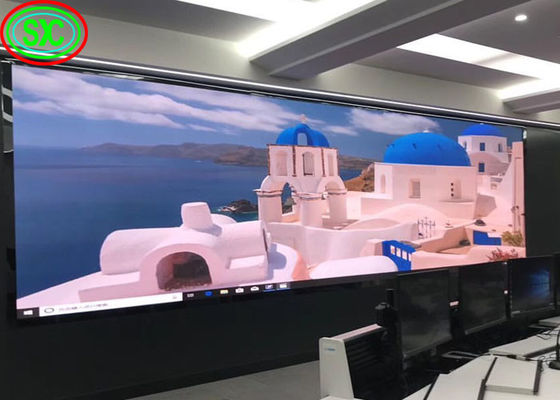

Small Pitch Indoor Full Color LED Display SMD P2 P2.5 Low Frequency Current large video screen 2

Production Process

Small Pitch Indoor Full Color LED Display SMD P2 P2.5 Low Frequency Current large video screen 3

Package

Our Service

1. Warranty

1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

1) We provide the technology training for free, which contains the operation training and maintenance

2) training in the factory.

3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation

1) We provide full maintenance for a lifetime and charge for the raw materials only.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification

1) We provide the operation manual, software, test report and so on.

2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing

1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service

1) We provide you the forwarding information, and some other information such as flight box, structure
