Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P10 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm month |
| Application:: | Video/Advertising/Picture | Color:: | RGB |
|---|---|---|---|
| Panel Size:: | 320mm*160mm | Pixel Pitch:: | 10mm, P10 |
| Pixels Density:: | 10000 Dots/ Square Meter | Pixel Configuration:: | 1R1G1B SMD3535 |
| LED Module Scan:: | 1/4 Scan 1/2 Scan | Brightniess Of White Balance:: | 6500mcd/square Meter |
| LED Cabinets Size:: | 960mm*960mm/640mm*640mm | Best View Distance:: | 10m-80m |
| Certificate:: | CE/Rohs | ||
| High Light: | full color led signs outdoor,outdoor full color led screen |
||
SCX LED Full color outdoor p10 advertising led displays fixed rental display billboard sign screen video wall
About fixed installation screen :
(1) High brightness SMD LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
(2) With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
(3) Weatherproof design, completely outdoor use.
(4) Easy for assembling and connection with the connector added.
(5) High color uniformity and clear image can bring you a vivid audio visual effect.
(6) The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
(7) Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.
(8) The maintenance of pixel and single led has been realized.
(9) Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
♦ Product specification
| outdoor P10 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | ≥9m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | constant driving static | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <600W | |||||||||||||
| Average power:/㎡ | <200W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

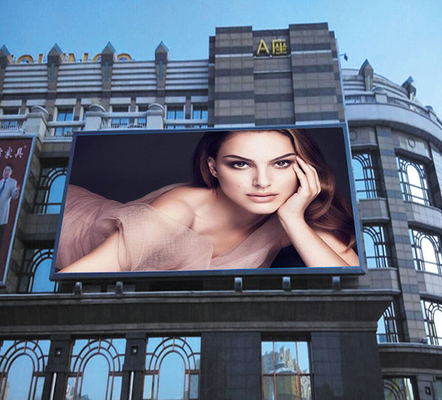

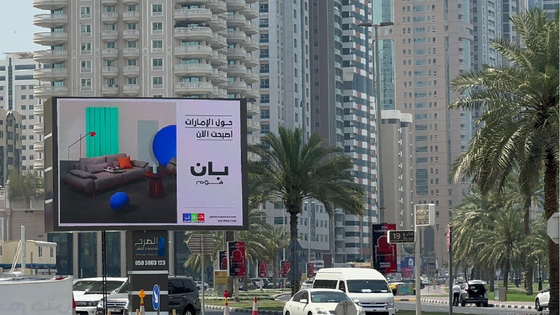

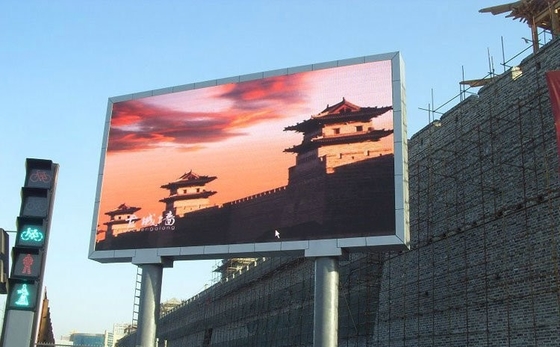

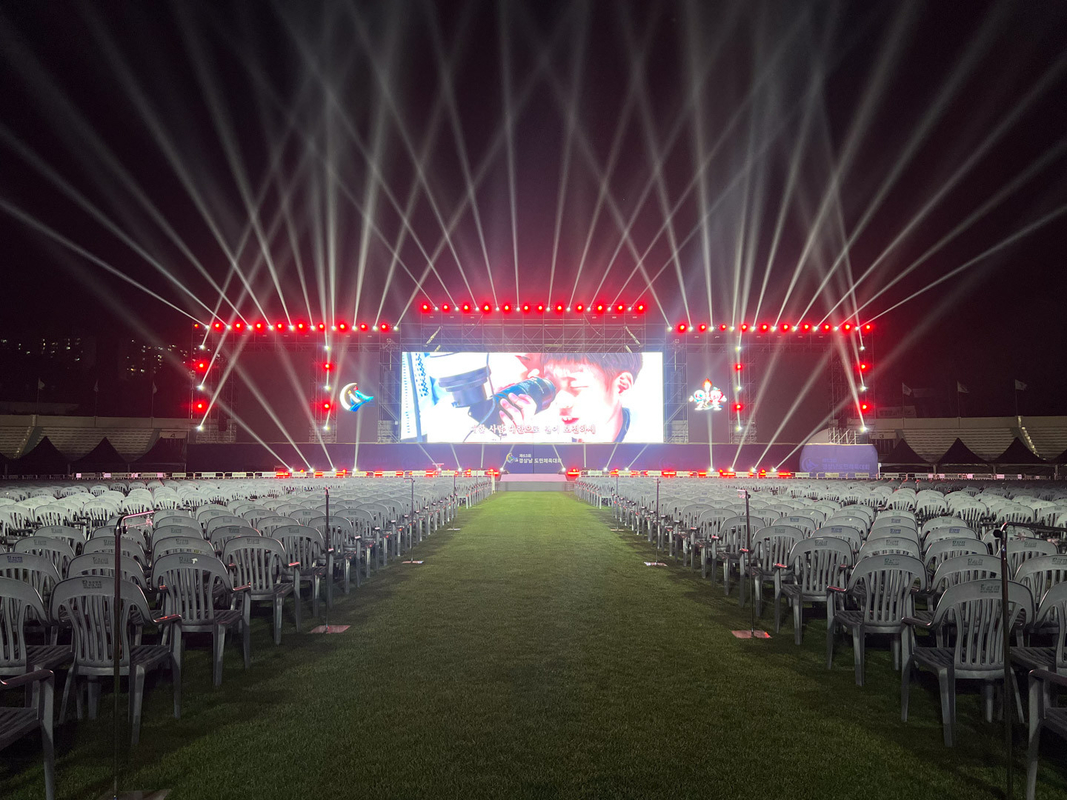

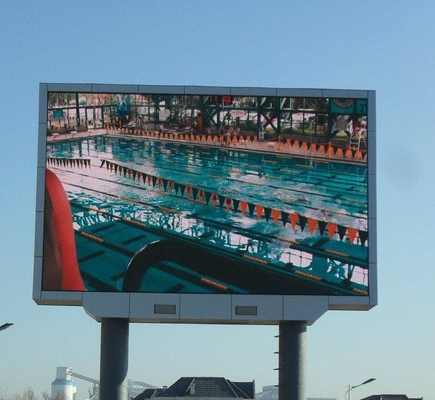

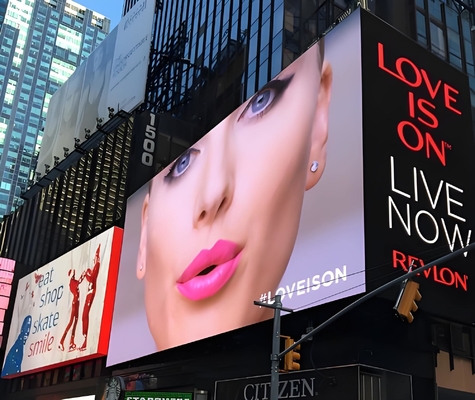

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
