Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P5 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5300 sqm month |
| Application:: | Outdoor, Outdoor Advertising | Color: | Full-color |
|---|---|---|---|
| Panel Size:: | 320*160mm | Pixel Pitch:: | 5mm |
| Product Name:: | P5 Outdoor Led Display | Brightness:: | 5000-6500cd/sqm |
| Warranty: | 2 Years | Cabinet Size:: | 960x960mm |
| Refresh Rate:: | 3840Hz | LED Chip:: | Epistar |
| High Light: | full color led signs outdoor,full color outdoor led display |
||
Product specification
| outdoor SMD P5 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 5 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 40000/m² | |||||||||||||
| Module resolution | 64x32 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | ≥4m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1800Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

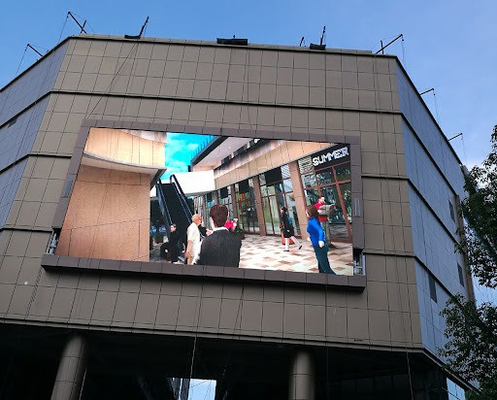

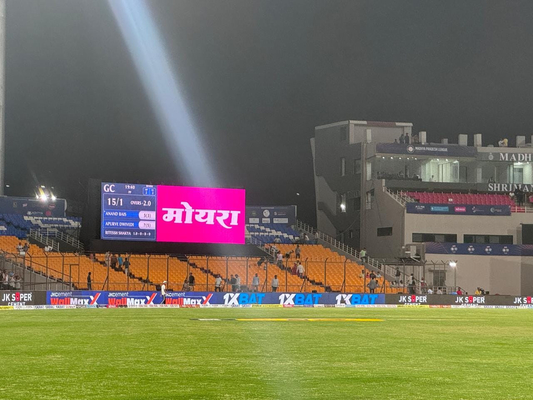

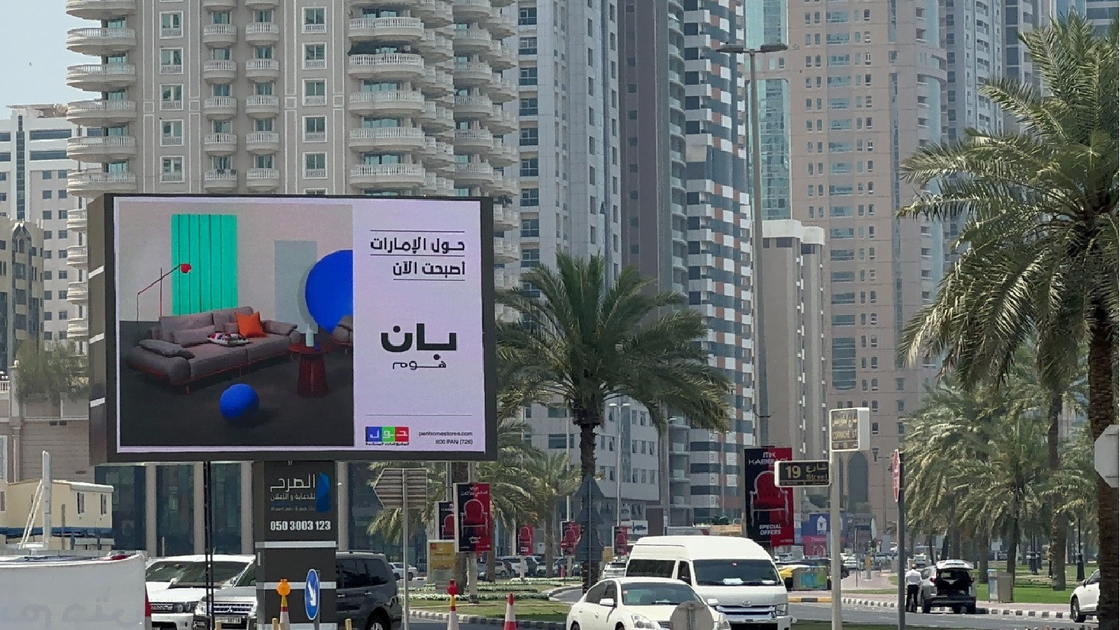

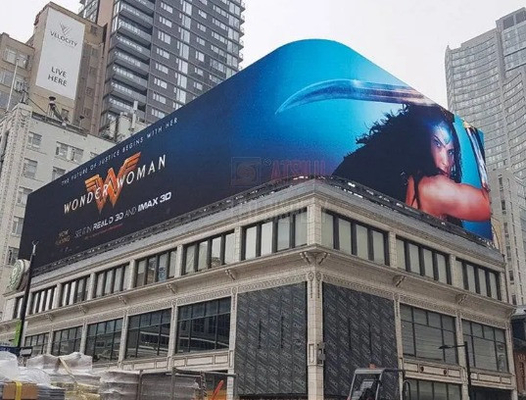

Our case
Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1. Are you a factory or trading company?
A:We are a factory.
Q2. Can I have a sample order for led screen panel?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q4. What's the shipping way, shipping time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q5. How to proceed an order for screen panels?
A: Please send us your purchase order by Email, Fax, Skype, Whats App, Facebook or making a call, and we will send you PI as your approval. Please let us know the following information for your order.
1) Product information: Quantity, Specification (Item , logo and Packing requirement)
2) Delivery time required
3) Shipping information: Company name, Detailed shipping address with zip code and Phone number.
Q6. Is it OK to print my logo on LED screen panel?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
