P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display

P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display

  • P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display
  • P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display
  • P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display
  • P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display
  • P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display
P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P4
Payment & Shipping Terms:
Minimum Order Quantity: 16 sqm
Price: negotiation
Packaging Details: wooden case ,flight case ,it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Application:: Indoor Led Advertising Screen Color:: Rgb
Panel Size:: 256mm*128mm Product Name:: P4 Indoor Led Display
Scan Mode:: 1/16scan Brightness:: 700-1000cd/sqm
Power Supply:: G-energy,Cl-power,meanwell LED Control System:: Novastar,Linsn,Colorlight,Huidu
Cabinet Size:: 512x512mm Warranty:: 3 Years
Life Span:: 100000hours
High Light:

indoor led billboard

,

indoor led display screen

Rental P4 Indoor Full Color LED Screen 512x512mm Fast Lock Light Thin LED Cabinet Panel For Stage Back LED Videowall LED





256x128 module 3840Hz high refresh Kinglight black SMD2020 512x512mm panel rental p4 indoor led stage screen

Product Feature:
1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3, The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
10. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
11.Low brightness and Hight gray scale:16Bit gray scale to bring excellent performance when brightness is reduced to 20%.



♦ Product specification

indoor SMD P4
Lamp size 3528
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 128x128
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

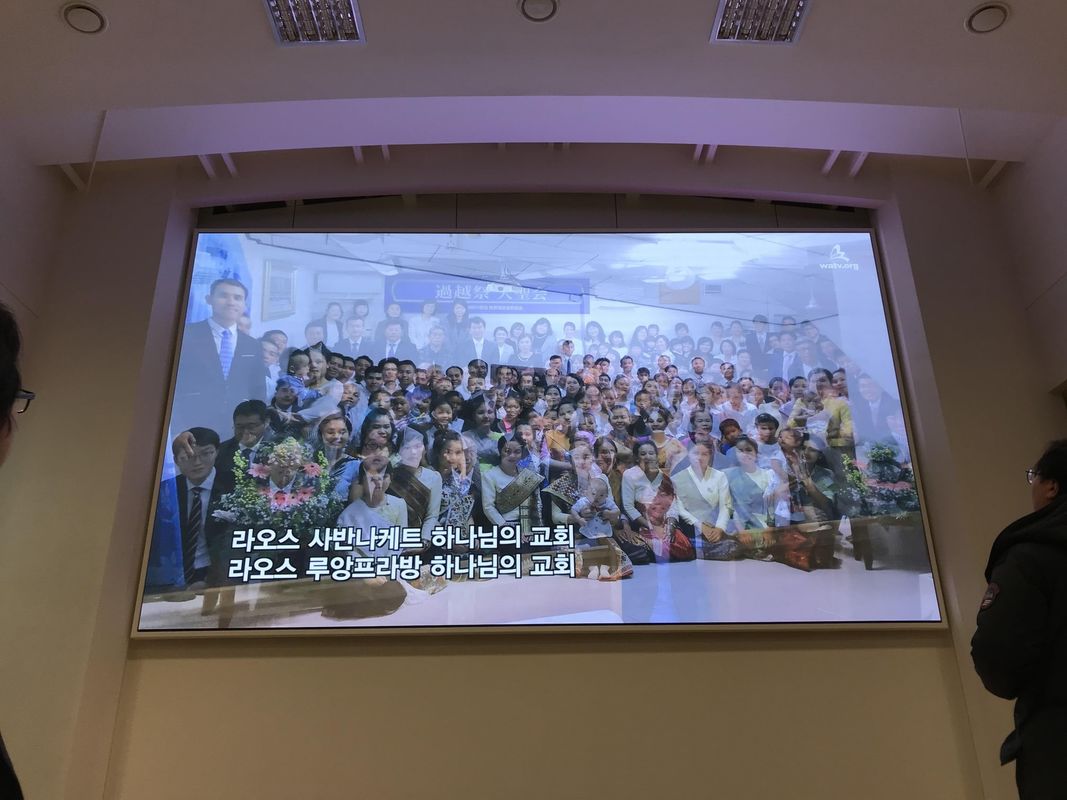

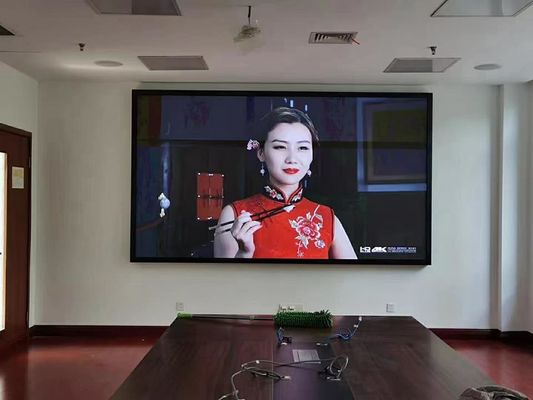

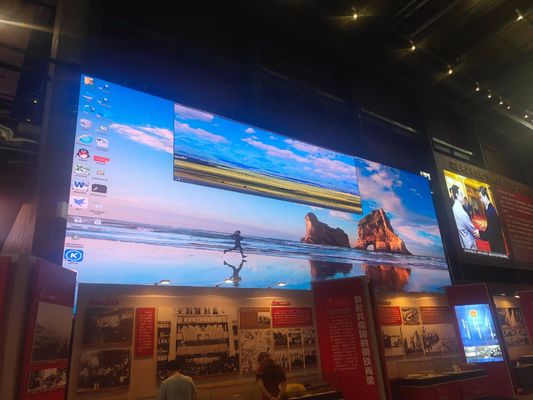

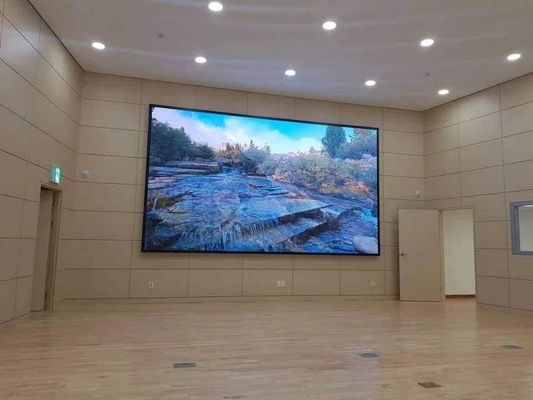

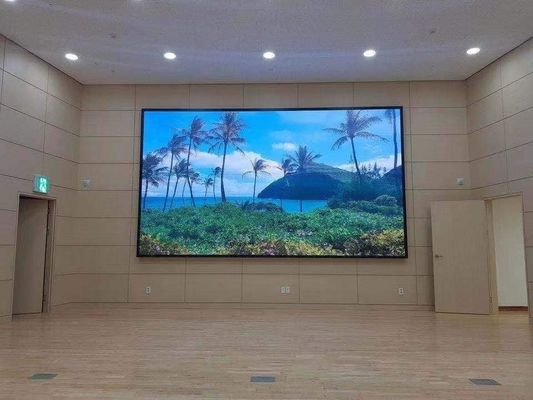

Our  case



P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display 0P4 Indoor Front Service Video LED Wall Screen indoor HD full color led screen wall cabinet led display 1





♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



♦ Frequently Asked Questions

What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.



FAQ



Q1: Are you the manufacturer or trading company? and where is your factory?
A: we are professional manufacturer. You are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.

Q2:May be we will need some samples, what is the lead time of samples and lead time of order?

A2:We will arrange your sample of the charges within 1-2 days and arrange your order within 5-12 days after receiving your salary.
Q3:How could us arrange order?
A:pls send your inquiry to us--click the "send" in below, then let us confirm all details, you can click "start order" in above, or we send you order link for your payment.
Q4:Which payment method does your company accept?
A:We support T/T or Trade Assurance. For more payment methods, please contact our customer service.
Q5:If have quality problems, how do you solve them?
A:Please provide relevant videos and photos within one month of receipt of the shipment. We will verify it at first. If it is really quality problem, we will work with the engineer to assist you in solving the problem. If we cannot solve it, we will give you a refund or resend you new one for free, but we will not bear the freight.
