Name: Outdoor Waterproof P6 P8 P10 Fixed Advertising Video Screen SMD LED Display Billboard Out of Home Advertising
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: SMD-P10
Price: 300 USD
Availability: InStock

Home Products Outdoor Full Color LED Display

Outdoor Waterproof P6 P8 P10 Fixed Advertising Video Screen SMD LED Display Billboard Out of Home Advertising

Product Details:

Place of Origin:	CHINA
Brand Name:	SCXK
Certification:	CB,CE,ROHS,FCC,SASO
Model Number:	SMD-P10

Payment & Shipping Terms:

Minimum Order Quantity:	6 sqm
Price:	300usd per sqm
Packaging Details:	wooden case，flight case，it is up to you.
Delivery Time:	3 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2500 sqm month

Contact Now

Detailed Product Description

Input Voltage:	AC 110-220V	Control System:	Linsn/nova/hd
Led Encapsulation:	1R1G1B	Operating Temperature:	-20~60°
Driver Ic:	MB5024/MB5124	Pixel Configuration:	SMD1921
Density:	10000dots/㎡	Working Voltage:	DC5V
Physical Density:	10000dots/㎡	Tube Chip Color:	Full Color

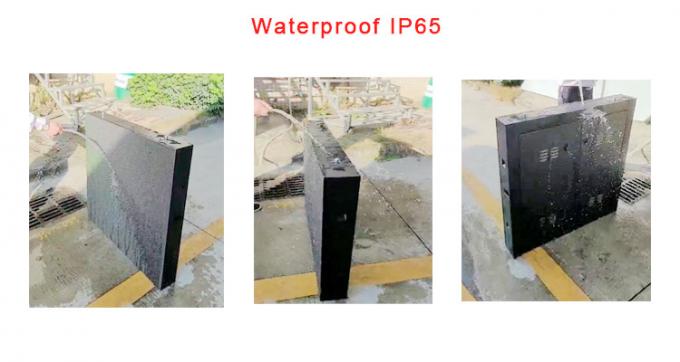

Protection Level:	IP65	Pixel:	10mm
Highlight:	full color led signs outdoor , outdoor full color led screen

Outdoor Waterproof P6 P8 P10 Fixed Advertising Video Screen SMD LED Display Billboard Out of Home Advertising

♦ Product Description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.

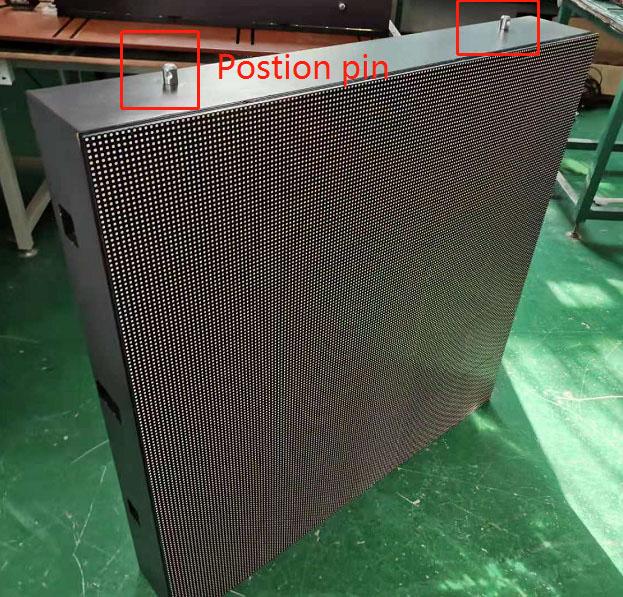

3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

♦ Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.

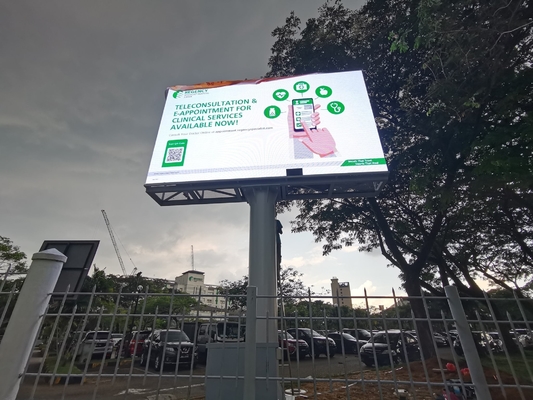

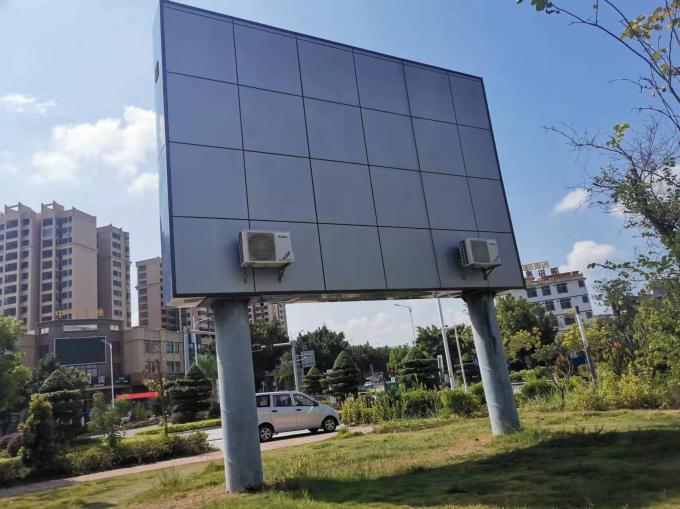

Our back maintenance led screens are the most common choice for those who need to install a signage (advertising) screen on a pole, and in some cases even on a wall, if you can leave a space on the back for maintenance.

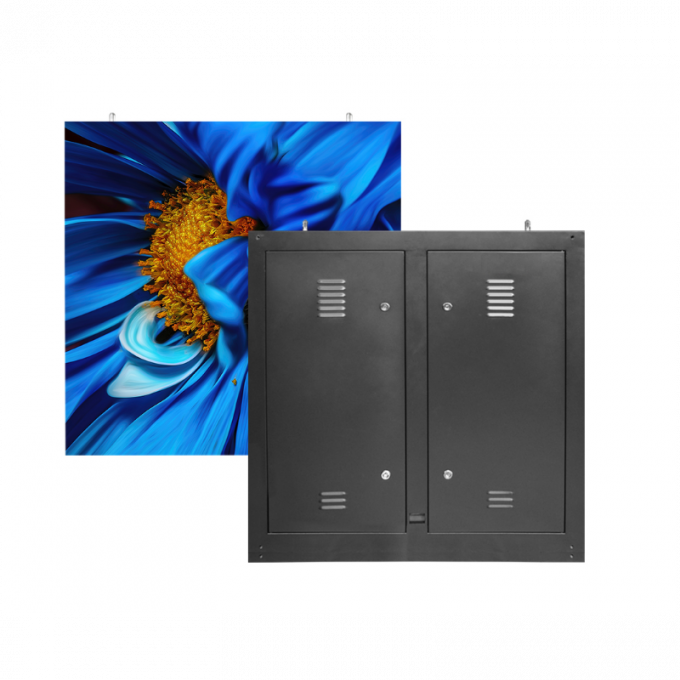

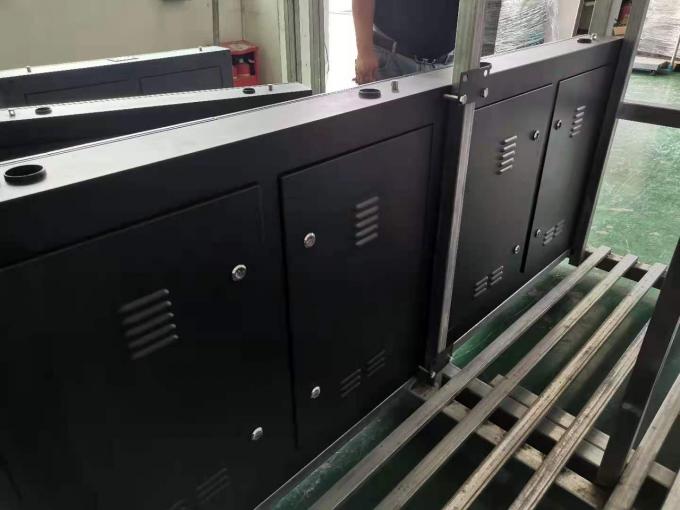

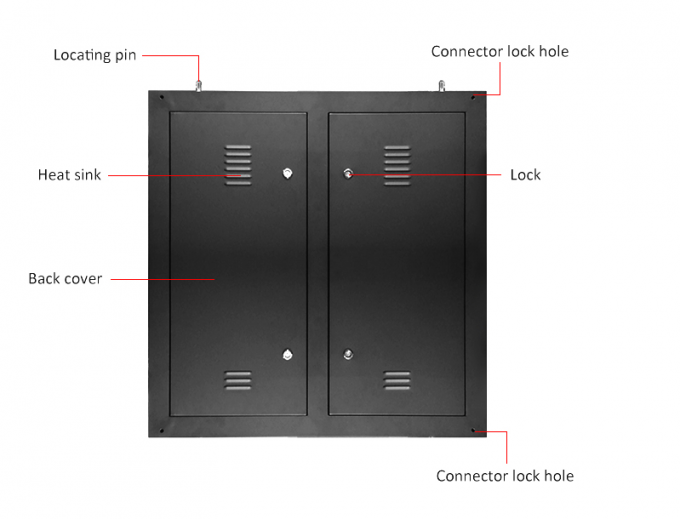

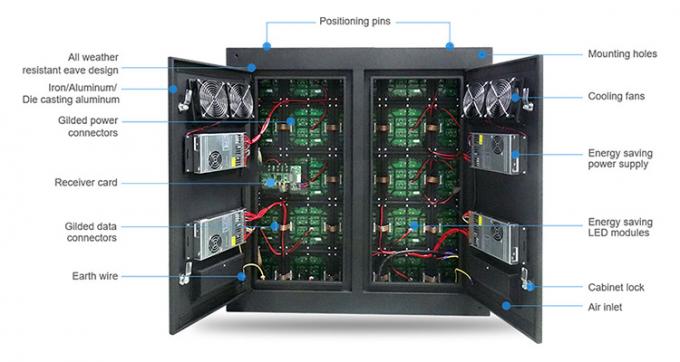

Screen structure are commonly made of bent steel, but can also be made of aluminum; in both cases, no cabling is visible from the outside and it is possible to close the rear access doors with a key. All our cabinets are equipped with thermostatic fans and high performance switch power supplies.

The screens are available in several pixel pitch (4,5,6, 8, 10), always with a wide viewing angle and high contrast and brightness levels to make the image visible even in full sunlight.

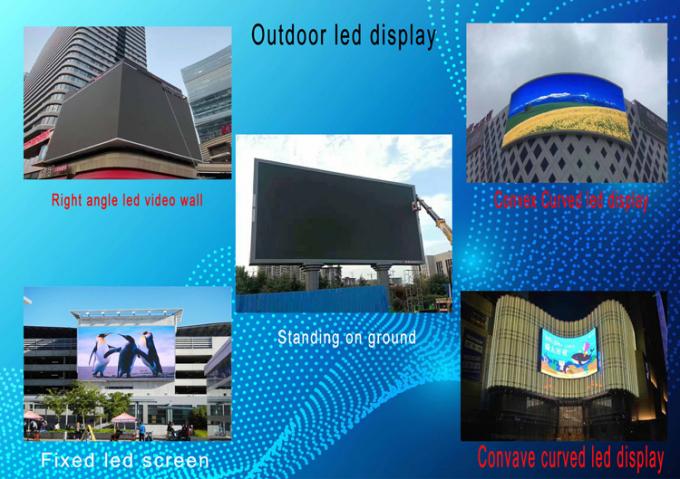

Iron and aluminum cabinet are options.Accept size customize,can do concave,convex shapes.Front and rear access. Another front open panel cabinet for choose.

Lighter sensor be added on the led display to adjust the bright according to environment. Extremly guaranteed the longer lifespan and better visual effective for display.

Lighter sensor should be added on the led display. It can adjust the brightness of the screen according to the brightness of the day and night. In this way, the screen will not work continuously at the extreme brightness, the failure rate of the screen will be reduced, and the power consumption will also be reduced.

Power cable and signal cable can just insert from the hole of beside,saved cost for customers.

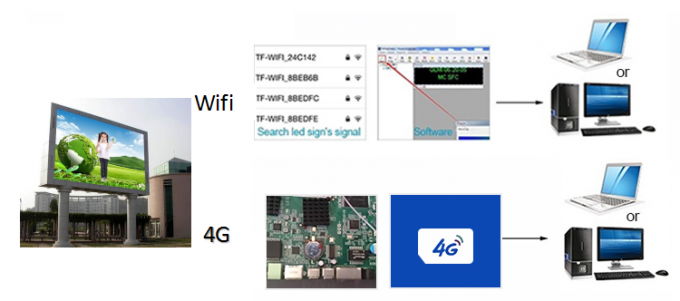

About control system, we classified synchronous control and asynchronous control.The asynchronous control can make use of USB,RJ45,WIFI and 4G to transmitted.

Control system
Synchronous

Asynchronous

Features

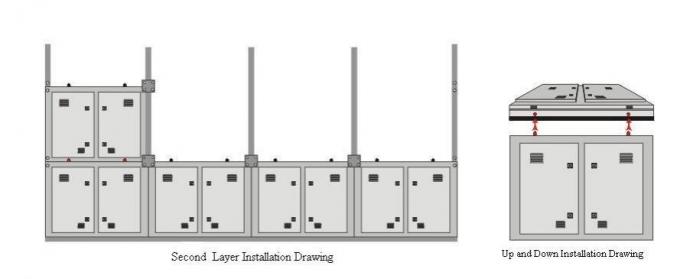

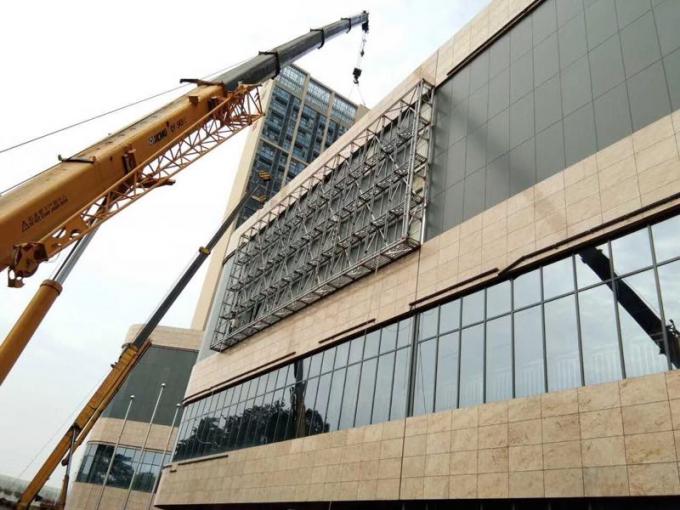

Installation Instructions

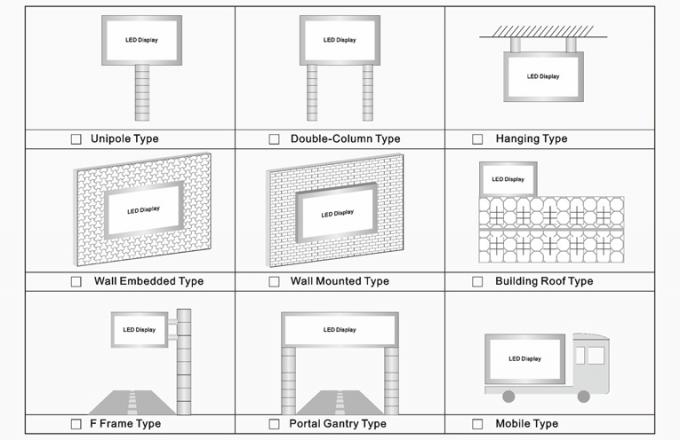

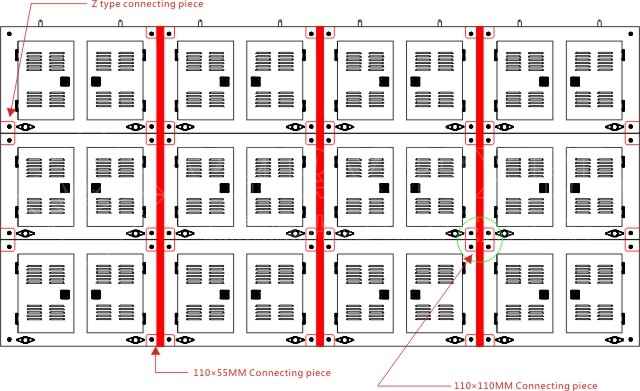

Installation ways

Our Technical support

Installation and Maintain Manual

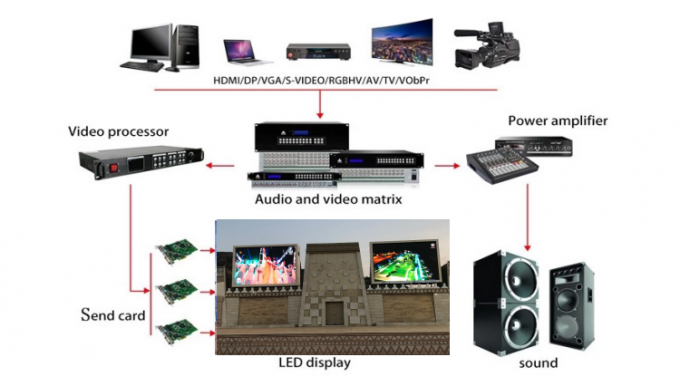

LED display system connection diagram

Data wire connection diagram

Power supply wire connection diagram

Multi-language software Guidance

Application

Related Products

♦ Technical specification

outdoor SMD P10

Resolution/mm

Pixel configuration

1R1G1B

Pixel density/pixels/m²

10000/m²

Module resolution

16x16

Module size/mm

160x160

View distance

4-250m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>8000cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 16bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:2km

Driving mode

Constant driving current

Scanning mode

(1/4)

Frame rate

60Hz

Refresh frequency

>3000Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃

Maximum power:/㎡

<950W

Average power:/㎡

<350W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

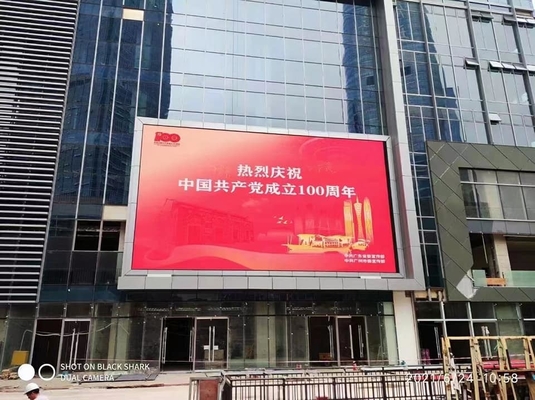

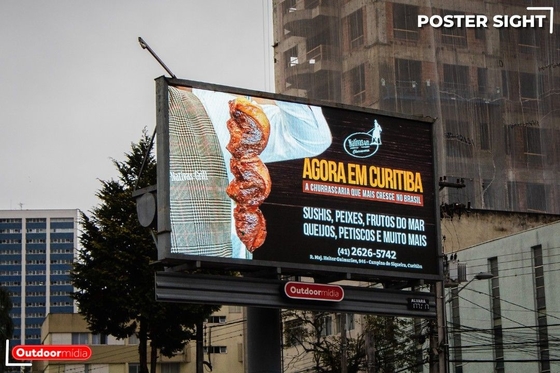

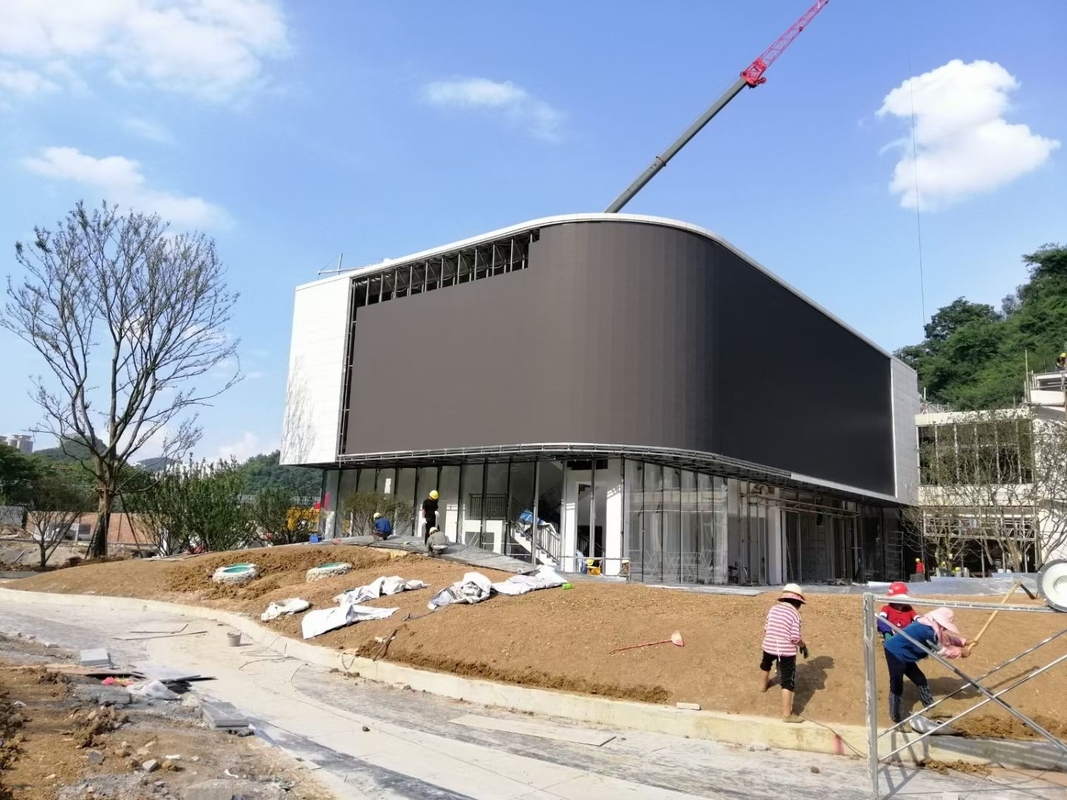

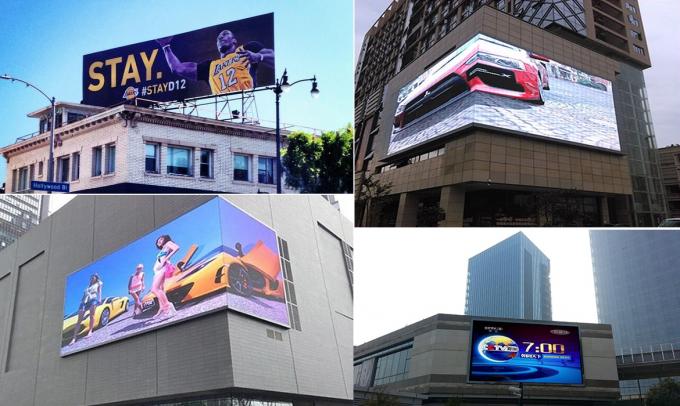

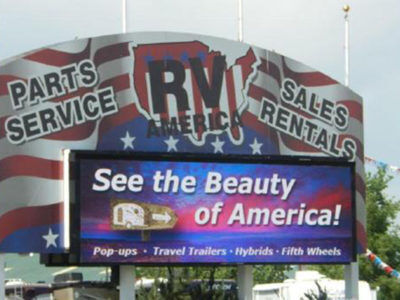

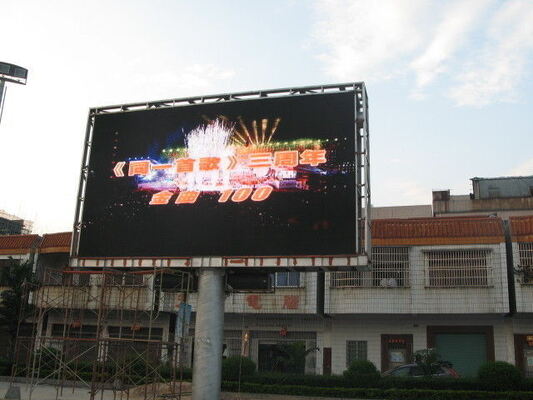

Our case

Outdoor Waterproof P6 P8 P10 Fixed Advertising Video Screen SMD LED Display Billboard Out of Home Advertising 16
our service

1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety,

maintain equipment

2) Installation and debugging

Wecould send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.

3) Warranty

Warranty: 3 years warranty, lifetime maintenance

Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance
if any problem causedby quality itself. While you should take the cost of the freight to us. After 2 years,
service is still available, but would charge for labor, material and freight cost that generates.

4) Maintenance

Maintenance principles: response in time, solve problems asap and ensure the use.

Maintenance period: In the maintenance period of the led display body, free of all maintenance charges

After maintenance period, only charge the material cost and labor cost.

FAQ
Q1: What is the shipping way?

A1: For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline

Q2: Can a sample order be placed before the mass production?

A2: Yes, we acceptable sample orders led display, please let us know your detail request then we will send you the sample asap

for confirmation.

Q3: Can a sample product be free?

A3: We offer free sample for some models, please advise what you need to see if we have available free samples here to be sent

Q4: Can a led display be any size?

A4: Nope, according the led module size and cabient size, such as p4.81mm is 500x500mm for smallest unit.
