Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P3 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 10 working days after payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 5000sqs/month |
| Pitch: | 3mm | Module Size: | 192*192mm |
|---|---|---|---|
| Color: | Full Color,RGB 3In1 | LED Chip: | Epistar |
| System: | LSN | Working Voltage: | DC5V |
| Waterproof: | IP34 | Warranty: | 3-5 Years |
| Application: | Dance Floor,stadium,airport,Shopping Mall Advertising | Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Highlight: | car led message board,car led message display |
||

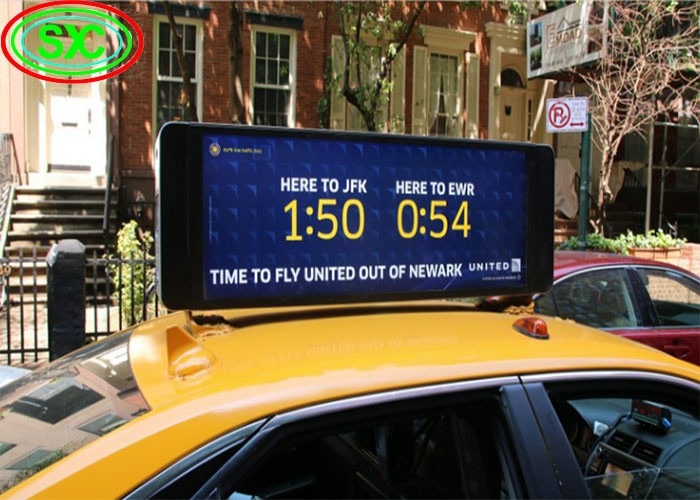

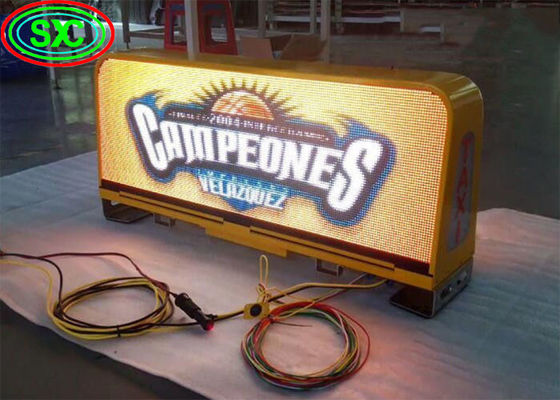

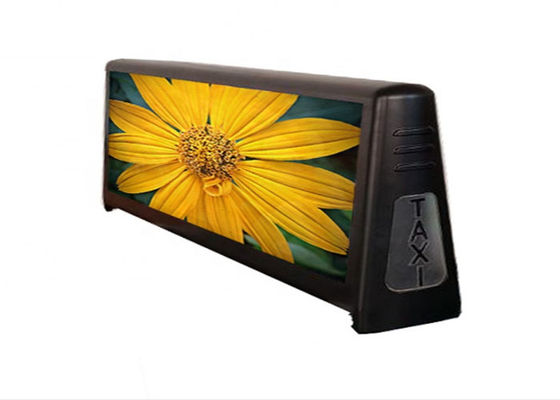

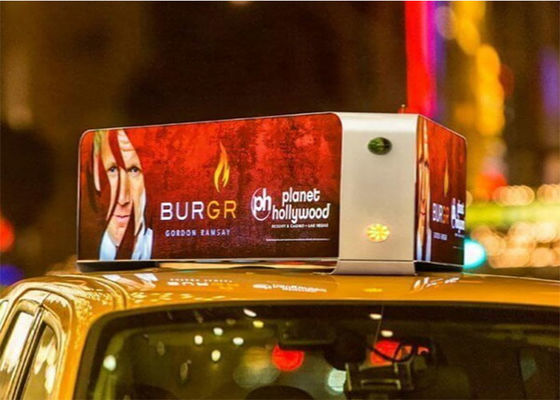

P3 IP65 Waterproof Car LED Sign Display Outdoor Full Color Less Power Waste
1,We have our own ERP of the main manufacturer for digital signage and led video wall with over 10 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service online 24 hours for customers.
3, We have a very strong quality control system.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8, Warranty for 3-5 years.
Specifications :
| Indoor P3 LED Display | |||||
| Resolution/mm | 3 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 111111/square meter | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 192x192mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
We know you have many choices when it comes to buying technology, and we believe we are your best choice. We are here to answer all your questions. We know technology can be daunting, so we offer a variety of services to help your do-it-yourself or digital project be a real-world success.
OEM Services: Shenzhen Shichuang Xinke Electronics Co., Ltd. can be customized to your specific design and needs. With strong design capabilities and rich OEM/ODM industry experience, we can easily customize your own products. We also provide comprehensive recommendations for installed parts. Replacement and Repair: We offer a variety of response times and coverage for ongoing fault repairs. We can also stock spare parts for your equipment and handle those critical parts that make or break your application.
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 2 years warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
