Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD p3 |
| Minimum Order Quantity: | 12 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-12 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm per month |
| Application:: | Video | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 192*192mm | Resolution:: | 64X64dots |
| Density:: | 111111dots/qm | Pixel Configuration:: | SMD 1R1G1B |
| Cabinet Size:: | 576x576mm | Brightness:: | 800cd/sqm |
| Viewing Angle:: | 140deg(H/V) | ||
| High Light: | 192*192mm indoor led display,P3 led panel screen indoor |
||
♦ Product specification
|
indoor SMD P3 |
||||||||||||||
|
Lamp size |
2020 |
|||||||||||||
|
Resolution/mm |
3 |
|||||||||||||
|
Pixel configuration |
RGB 3 in 1 |
|||||||||||||
|
Pixel density/pixels/m² |
111111/m² |
|||||||||||||
|
Module resolution |
64x64 |
|||||||||||||
|
Module size/mm |
192x192 |
|||||||||||||
|
View distance |
≥2m |
|||||||||||||
|
Single point brightness adjust |
Can be added |
|||||||||||||
|
Single point color adjust |
Can be added |
|||||||||||||
|
White balance brightness |
>2500cd/㎡ |
|||||||||||||
|
Color temperature |
6500K-9500K |
|||||||||||||
|
Horizontal view angle |
120(degrees) |
|||||||||||||
|
Vertical view angle |
60(degrees) |
|||||||||||||
|
Signal Process bit |
10 or 14 bit |
|||||||||||||
|
Grey process |
1024x1024x1024 16834x16834x16834 65536x65536x65536 |
|||||||||||||
|
Control distances |
Internet cable:100m, multimembrane:500m, monofilm:5km |
|||||||||||||
|
Driving mode |
Constant driving current |
|||||||||||||
|
Scanning mode |
1/16 |
|||||||||||||
|
Frame rate |
60Hz |
|||||||||||||
|
Refresh frequency |
>4200Hz |
|||||||||||||
|
Control mode |
Computer synchronous |
|||||||||||||
|
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
|
Out of control point |
<1/10000 |
|||||||||||||
|
Working hours |
≥72hours |
|||||||||||||
|
Mean Time Between Failure |
>5000hours |
|||||||||||||
|
Life time |
100000hours |
|||||||||||||
|
Life-all-white(brightness halving) |
50000hours |
|||||||||||||
|
Environment temperature range |
Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
|||||||||||||
|
Maximum power:/㎡ |
<1000W |
|||||||||||||
|
Average power:/㎡ |
<280W |
|||||||||||||
|
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
|
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
|
Software environment |
WindowsNT,Windows1999,WindowsXP |
|||||||||||||
|
Luminous point width between centres |
Deviation<3% |
|||||||||||||
|
Brightness uniformity |
<10% |
|||||||||||||
|
Color uniformity(chromaticity coordinate) |
±0.003 |
|||||||||||||
|
Power supply request |
AC85-264V(50Hz-60Hz) |
|||||||||||||
|
Contrast |
(1000:1) |
|||||||||||||
|
System protection |
Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
|||||||||||||
|
Humidity(working) |
working:10-95% |
|||||||||||||
|
Humidity(storing) |
storing:10-95% |
|||||||||||||

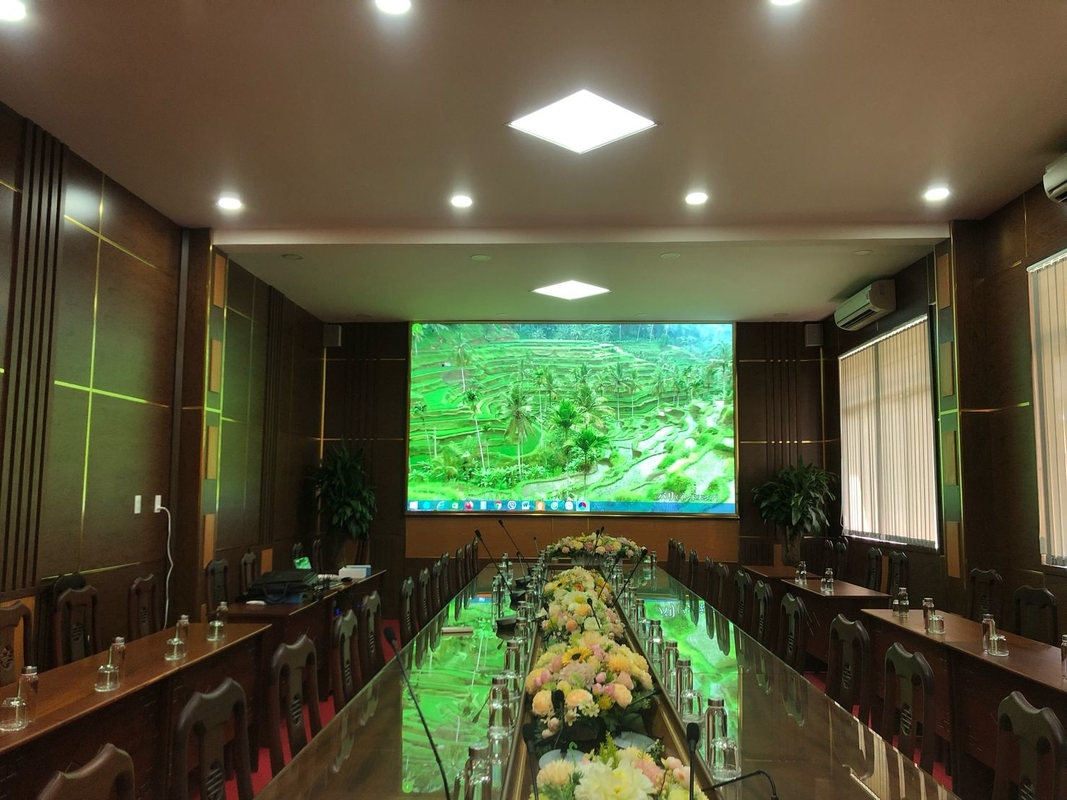

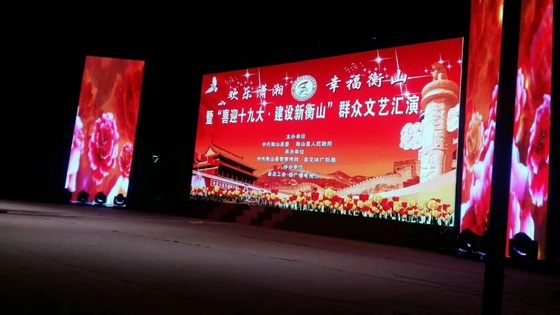

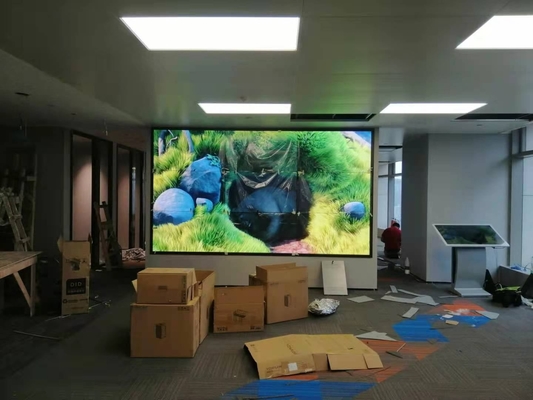

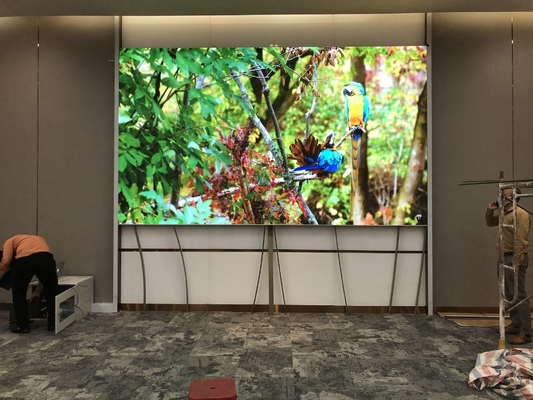

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are the real manufacturer which focus on LED display.
Q2: What is the warranty for your product?
A2: We are the only LED display manufacture can provide 3-6 years warranty,the failed items can be repalced with the new order no matter when you buy them,so you don't need to worry about the quality problem if cooperate with us.
Q3: What is your MOQ?
A3: The MOQ can be only 1 PCS.
Q4: What's your lead time?
A4: The delivery time is 1~15 days which depend on detail item and quantity.
Q5: Do you accept OEM/ODM?
A5: Yes.
Q6: Can we be your distributor?
A6: Yes,if your annuals sales much more than our other customers in your market that you can be our distributor.
Q7: What is your company advantage?
A7: We have the industry's top R & D strength, can provide customers with a variety of unusual solutions, customized development of the high difficulty of the LED display.
