Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD p3 |
| Minimum Order Quantity: | 12 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 5-17 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm per month |
| Application:: | Indoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 576x576mm | Brightness:: | 1500cd/sqm |
| Warranty:: | 3 Years | Module Size:: | 192x192mm |
| Pixel Density:: | 111111dots/m2 | Module Resolution:: | 64x64pixels |
| Life Span:: | 100000hours | Viewing Angle:: | H:120 V:120 |
| Scan Mode:: | 1/32scan | ||
| High Light: | P3 indoor led display,P4 indoor rental led display |
||
SCX LED Indoor popular 576x576mm indoor led display full color p3 led video wall led display screen
1) Magnetic cabinet, both front service and rear service.
2) Perfect screen flatness, Polymeric nanocomposites cabinet.
3) Ultra thin cabinet, only 60mm thick.
4) Ultra light cabinet, only 5.6KG.
5) Provide steel structure together, not need to build structure locally.
6) Simple structure, quick installation on the spot.
7) Various kinds of applications,permanent installation, rental hanging,front service installation, creative screen installation,ceiling LED display installation and many others which you imagine.
♦ Product specification
|
indoor SMD P3 |
||||||||||||||
|
Lamp size |
2020 |
|||||||||||||
|
Resolution/mm |
3 |
|||||||||||||
|
Pixel configuration |
RGB 3 in 1 |
|||||||||||||
|
Pixel density/pixels/m² |
111111/m² |
|||||||||||||
|
Module resolution |
64x64 |
|||||||||||||
|
Module size/mm |
192x192 |
|||||||||||||
|
View distance |
≥2m |
|||||||||||||
|
Single point brightness adjust |
Can be added |
|||||||||||||
|
Single point color adjust |
Can be added |
|||||||||||||
|
White balance brightness |
>2500cd/㎡ |
|||||||||||||
|
Color temperature |
6500K-9500K |
|||||||||||||
|
Horizontal view angle |
120(degrees) |
|||||||||||||
|
Vertical view angle |
60(degrees) |
|||||||||||||
|
Signal Process bit |
10 or 14 bit |
|||||||||||||
|
Grey process |
1024x1024x1024 16834x16834x16834 65536x65536x65536 |
|||||||||||||
|
Control distances |
Internet cable:100m, multimembrane:500m, monofilm:5km |
|||||||||||||
|
Driving mode |
Constant driving current |
|||||||||||||
|
Scanning mode |
1/16 |
|||||||||||||
|
Frame rate |
60Hz |
|||||||||||||
|
Refresh frequency |
>4200Hz |
|||||||||||||
|
Control mode |
Computer synchronous |
|||||||||||||
|
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
|
Out of control point |
<1/10000 |
|||||||||||||
|
Working hours |
≥72hours |
|||||||||||||
|
Mean Time Between Failure |
>5000hours |
|||||||||||||
|
Life time |
100000hours |
|||||||||||||
|
Life-all-white(brightness halving) |
50000hours |
|||||||||||||
|
Environment temperature range |
Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
|||||||||||||
|
Maximum power:/㎡ |
<1000W |
|||||||||||||
|
Average power:/㎡ |
<280W |
|||||||||||||
|
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
|
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
|
Software environment |
WindowsNT,Windows1999,WindowsXP |
|||||||||||||
|
Luminous point width between centres |
Deviation<3% |
|||||||||||||
|
Brightness uniformity |
<10% |
|||||||||||||
|
Color uniformity(chromaticity coordinate) |
±0.003 |
|||||||||||||
|
Power supply request |
AC85-264V(50Hz-60Hz) |
|||||||||||||
|
Contrast |
(1000:1) |
|||||||||||||
|
System protection |
Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
|||||||||||||
|
Humidity(working) |
working:10-95% |
|||||||||||||
|
Humidity(storing) |
storing:10-95% |
|||||||||||||

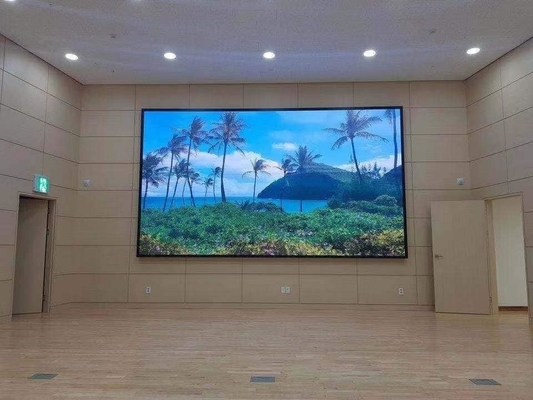

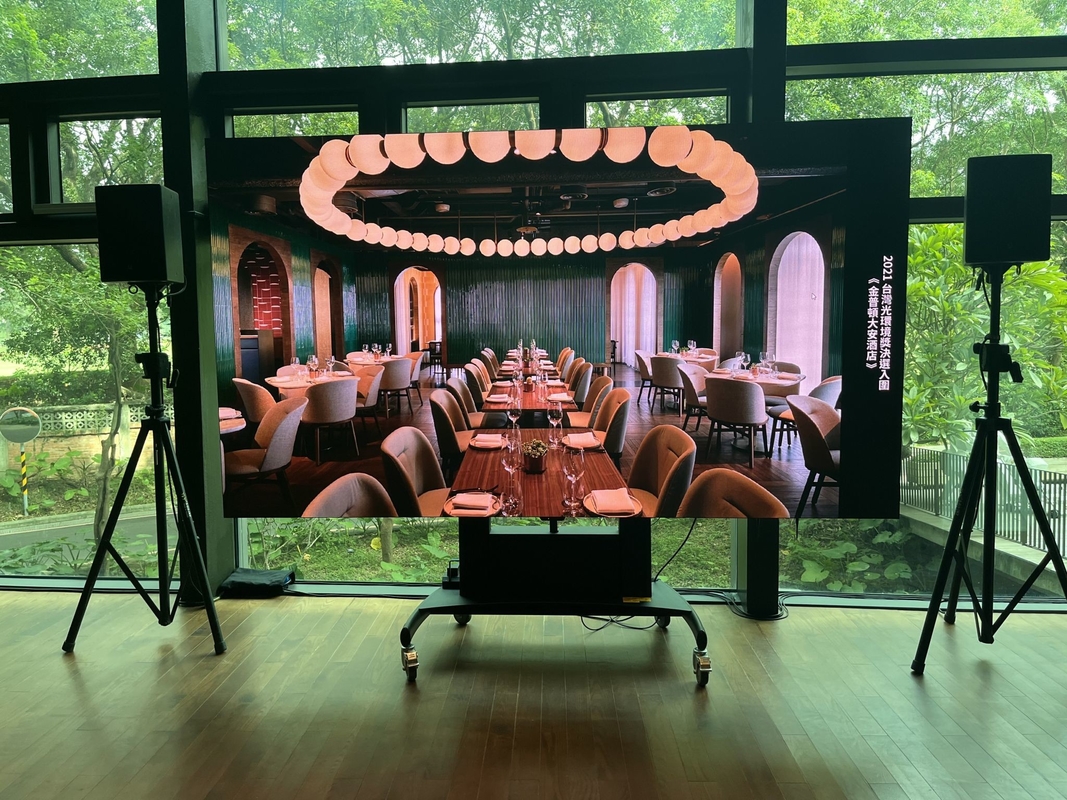

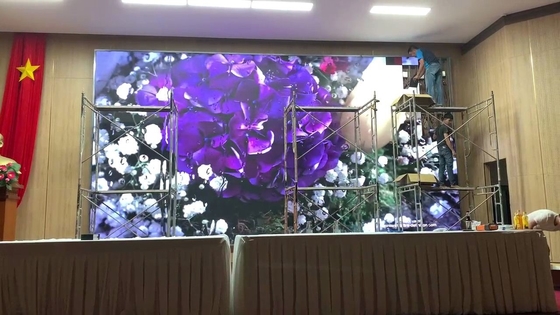

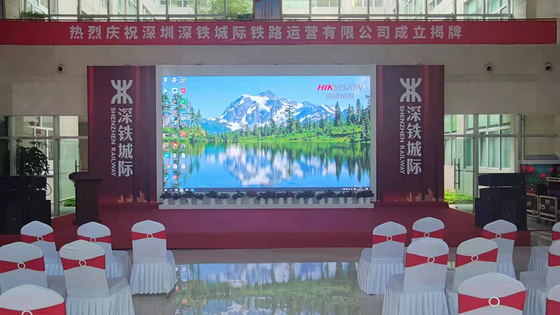

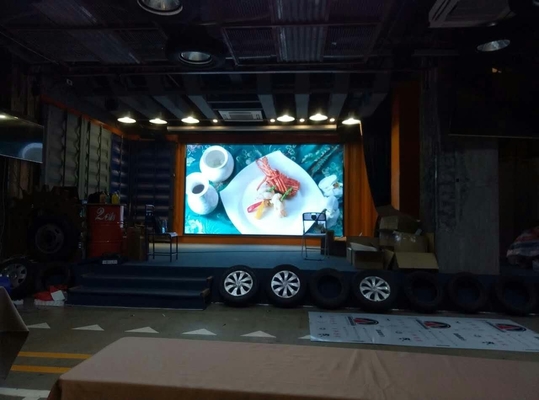

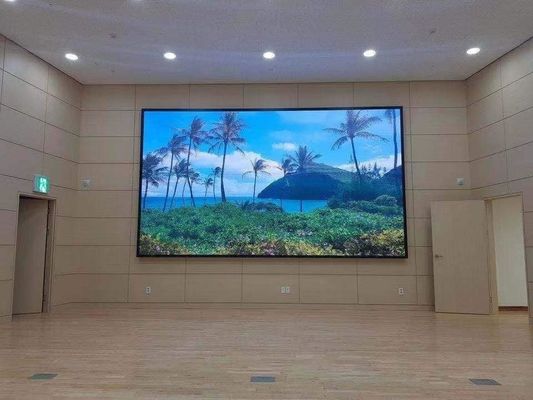

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 2-5 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
