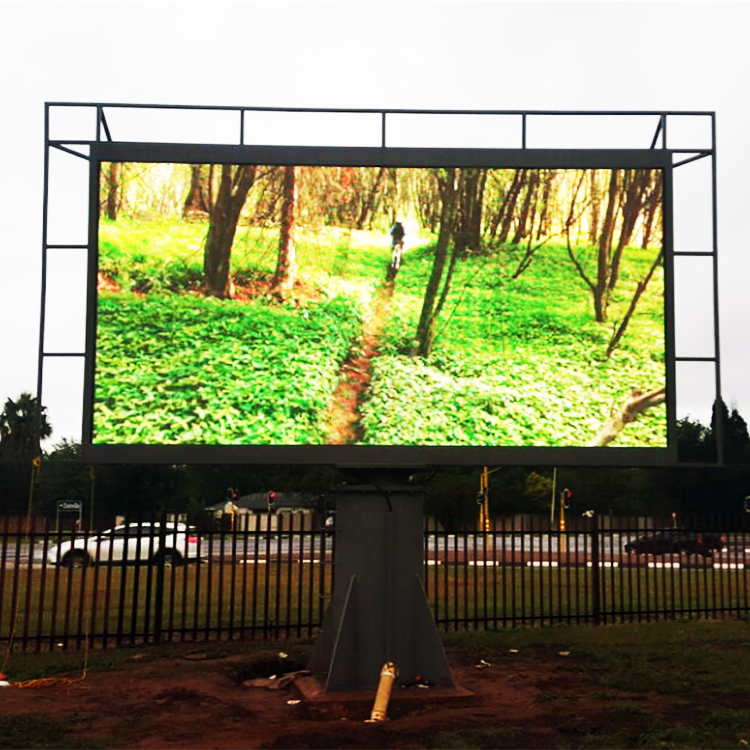

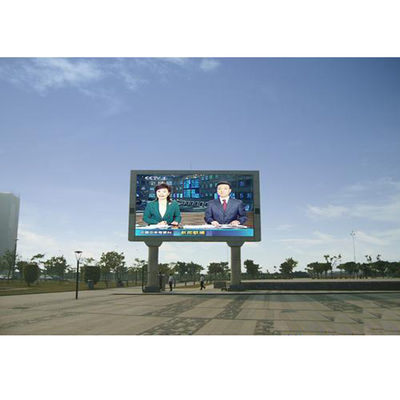

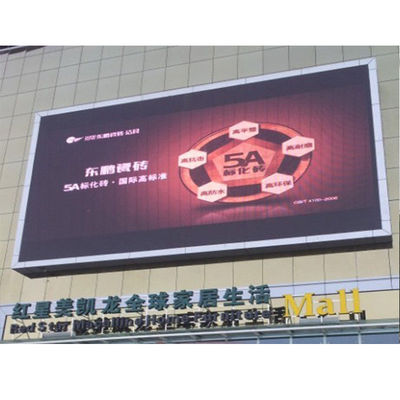

Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen

Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen

  • Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen
  • Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen
  • Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen
  • Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen
  • Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen
Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: SMD-P10
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-12 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5800 sqm month
Contact Now
Detailed Product Description
Application:: Outdoor Color:: RGB
Panel Size:: 320*160mm Pixel Pitch:: 10mm
Product Name:: Led Video Wall P10 Module Size:: 320mm*160mm
Cabinet Size:: 960*960mm Cabinet Material:: Waterproof Iron Cabinet
Power Supply:: G-energy Refresh Rate:: 1920HZ
IC:: MBI 5124 / 5153 Control:: Nova/ Linsn
High Light:

6500cd outdoor smd led display

,

P5 outdoor led video display

Outdoor P10 /P5/P6/P8 standing comercial advertising fixed led screen high brightness 6500cd led display



♦ Applications

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Product specification

outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32*16
Module size/mm 320*160
View distance 5-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >4000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Product overviews
Items Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display
Material steel,aluminum ,die casting aluminum
Certificates CE, FCC,RoHS, CCC, UL
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on
.



Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen 0

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen 1

♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen 2

♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

Standing Comercial P10 /P6/P5/P8 6500cd Fixed LED Screen 3

♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
