Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P4 |
| Minimum Order Quantity: | 12 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 5-16 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm per month |
| Application:: | Indoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 512x512 Mm | Pixel Pitch:: | 4 Mm |
| Display Function:: | Video | Cabinet Resolution(pixel):: | 128x128 Dots |
| Brightness:: | 1800 | Input Voltage:: | DC110~220V |
| Weight:: | 9 Kg | Life Span:: | 80000 Hours |
| Guarantee Period:: | 3 Years | ||
| High Light: | 62500/m² full color display,P4 indoor smd led display |
||
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
Wecould send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
3) Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
♦ Product specification
| indoor SMD P4 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 4 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 62500/m² | |||||||||||||
| Module resolution | 32x32 | |||||||||||||
| Module size/mm | 128x128 | |||||||||||||
| View distance | ≥4m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1800cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 120(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

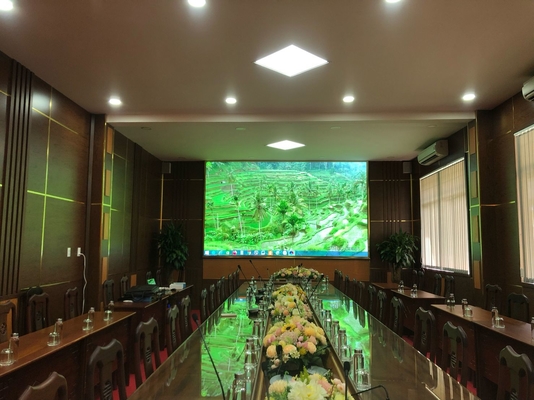

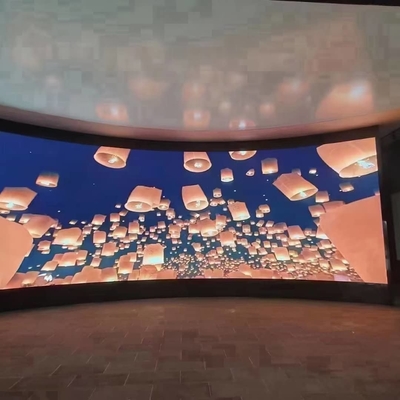

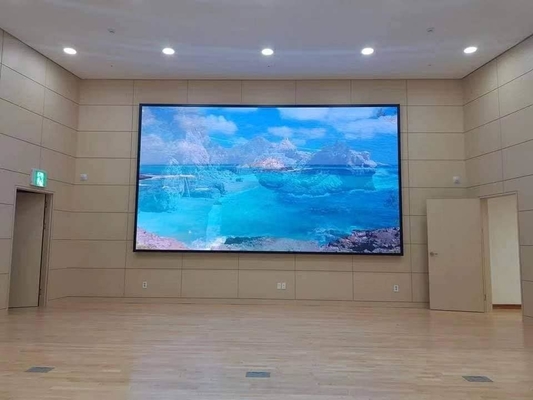

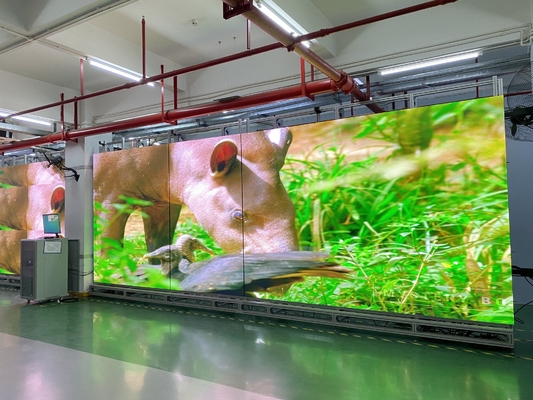

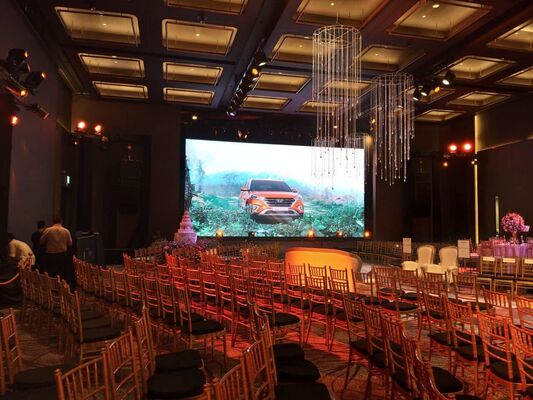

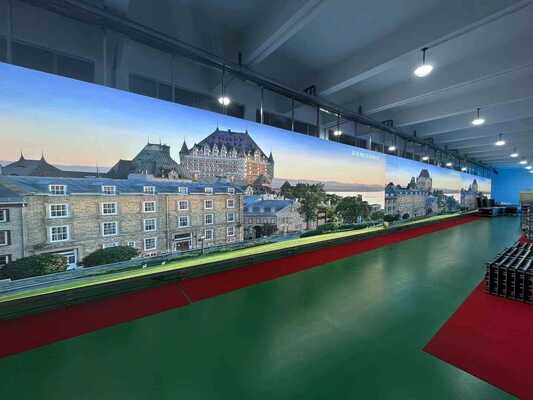

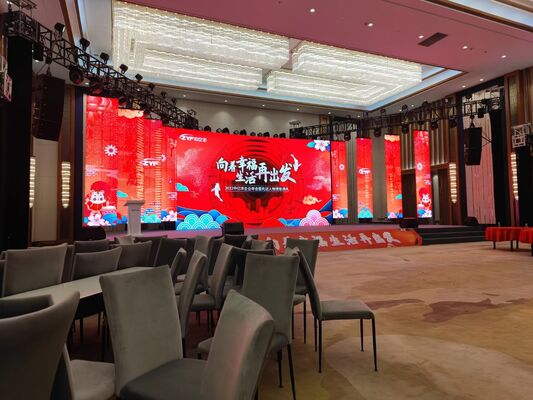

Our case
What is a GOB LED display?
GOB is Glue's high protection LED display on board, which is a new technology, similar to module packaging. It is working on the entire display module, for example 250*250mm. By covering the surface of the module's PCB board with patented transparent glue, thousands of SMD lamps have been soldered, and finally the module gets a special shield on its surface.
It uses high-protection LED display screen, with anti-collision, dust-proof, waterproof, moisture-proof, UV-proof, no harmful effects on heat dissipation and brightness loss. After a long period of rigorous testing, it has been clarified that the shielding glue even helps to dissipate heat and extend the service life.
The revolutionary change driving the entire LED display industry is that the goals of this GOB display are fine-pitch LED displays and rental screens, which have a natural need for LED diode protection.
♦ Applications
LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are th boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Features:
