Name: P3 LED Display Panel with 160 Degree Horizontal and 140 Degree Vertical Optimal Viewing Angle SCX LED
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P3
Price: 10000.00 USD
Availability: InStock

Home Products Indoor Full Color LED Display

P3 LED Display Panel with 160 Degree Horizontal and 140 Degree Vertical Optimal Viewing Angle SCX LED

Product Details:

Place of Origin:	CHINA
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P3

Payment & Shipping Terms:

Minimum Order Quantity:	16 sqm
Price:	negotiation
Packaging Details:	plywood case, flight case, you choose what you like.
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3900 sqm per month

Contact Now

Detailed Product Description

Application::	Play Video, Live Events Led Display	Certificate::	CE RoHS FCC Certifications
Warranty:	5 Years	Waterproof:	IP65
Gray Scale:	16bit	Power Supply:	5v/40a 5v/60a
Controller:	Linsn	Pxiel Configuration:	1r1g1b
With Power:	Video Sources	Color Temperature:	6500K
Brightness:	800-1500cd/m²	Scan Mode:	32scan
Highlight:	1200cd/Sqm Stage Led Advertising Display , 20mA Stage Led Advertising Display , SMD2121 Full Color Led Screen

SCX LED Indoor 576x576 Led Cabinet P3 Led Display Screen Panel Video Wall For Stage Background

Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.

Warranty Period
Each of our LED display products comes with at least two years warranty and a lifetime maintanance services.

Specifications
Item	P3
Pixel Pitch	3 mm
Pixel Configuration	3in1 (1R1PG1B)
Module Size(MM)	192x192mm
Module Resolution(Dots)	64*64
Module Weight(Kg)	0.36
Package LED Mode	SMD2121
Max Power(Watt)	21
Pixel Density(Dots/SQM)	111,111
Driving Method	Constant Current Driving
Scan Method(Scan)	1/32
Interface Way	HUB 75
Brightness(CD/SQM)	≥ 1200
Safety Standard	CCC,FCC,ROHS,TUV,CE,ETL,UL,BIS.....
Unit Cabinet Specifications
Cabinet Size(MM)	576x576mm
Cabinet Composing(PCS)	8
Power Supply Mode(Per Cabinet)	5V60A
Cabinet Resolution(Dots)	128x128
Optimal Viewing Distance(M)	3-300
Optimal Viewing Angle	Horizontal angle: 160 degree; Vertical angle: 140 degree
Environment Temperature	Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree
Relative Humidity	10% ~ 95%
Power Supply Specifications
Operating Voltage	AC:100V~120V AC:220~240V
Average Power(W/SQM)	150-350
Max Power Consumption(W/SQM)	≤ 800
Current	≤ 20mA (single LED)
Control System Specifications
Computer	Pentium4 or above P4 or above
Operate System	Win7-11/2000/NT/XP
Control Mode	Synchronization with PC
Main Technical Parameter Specifications
Driving Device	Constant Current Driving
Refresh Rate	≥ 1900-3840Hz
Gray/Color	RGB each 256 grade, can display 16.7color
Lifespan	≥ 100000hours
Power Switch	RGX Automatic Switch
Display Mode	2048102410247681280*960mm
For more information please contact our sales.

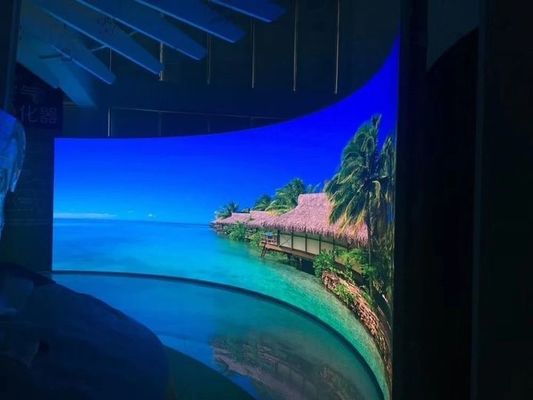

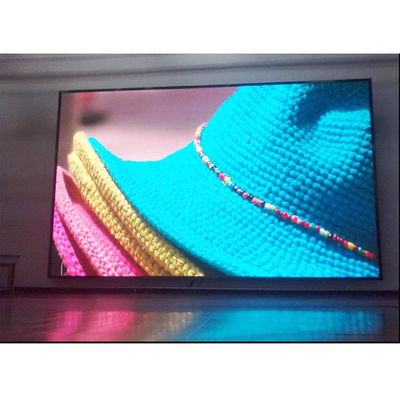

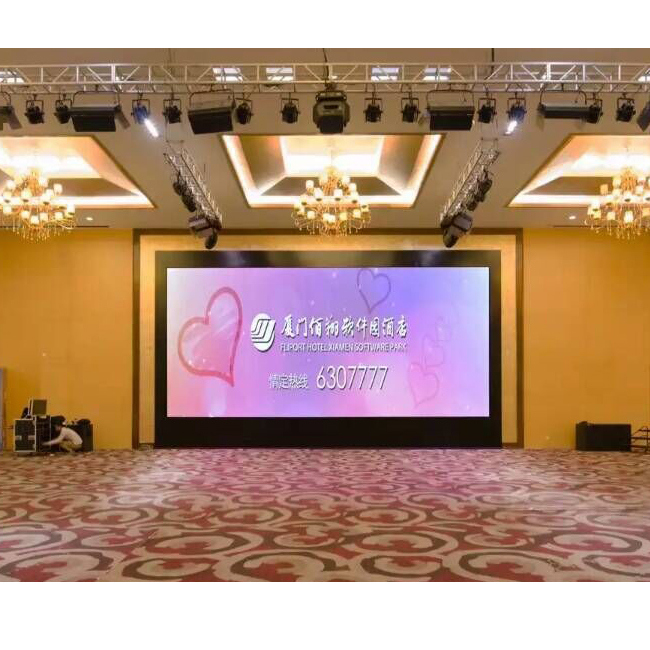

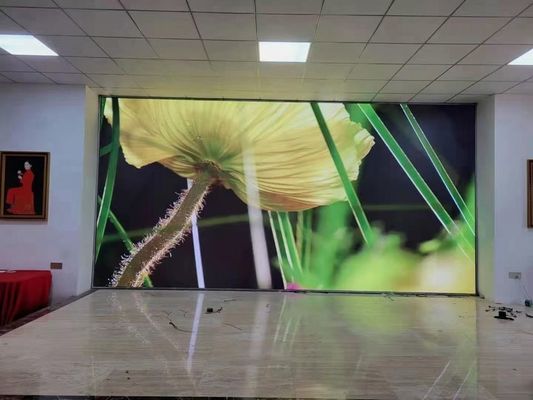

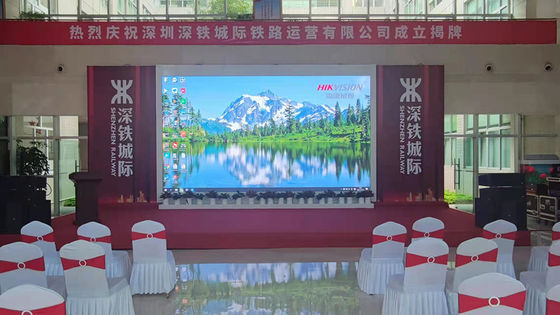

Our case

P3 LED Display Panel with 160 Degree Horizontal and 140 Degree Vertical Optimal Viewing Angle SCX LED 0

Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.

Certificate
P3 LED Display Panel with 160 Degree Horizontal and 140 Degree Vertical Optimal Viewing Angle SCX LED 2

Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
P3 LED Display Panel with 160 Degree Horizontal and 140 Degree Vertical Optimal Viewing Angle SCX LED 3

Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

FAQ

1.

Q: Are you a factory or trading company?

A: We are a OEM/ODM factory.

2.

Q: What payment methods your company accept?

A: We accept most ofthe payment methods,but mainly accept T/T, L/C, Western Union, Paypal and MoneyGram.

3.

Q: How long is the warranty time for your products?

A: Our officially promised warranty time is 1-3years after delivery at best.

4.

Q: I haven't done business with you guys before,how can i trust your company?

A: Our company has been in Alibaba. com for almost 6 years, which is longer than most of our fellow suppliers,we've been golden suppliers

5.

Q: what's the shipment terms and delivery time of your company?

A: Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. but mostly, the shipment time is 3-8 working days after delivery. For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.
