Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P8 or P10 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case are available. |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Application:: | Football Stadium, Football Stadium Basketball Natatorium Match | Color: | Full Color |
|---|---|---|---|
| Brightness:: | 6500cd/sqm | Refresh Rate:: | 2880hz~3840hz |
| Product Name:: | Gsport Led Screen | Viewing Angle:: | H140/V120 |
| Control System:: | Novastar | IP Rate:: | IP65/IP65 |
| Weight: | 35kg | Name:: | Led Screens For Football Basketball Volleyball |
| Certificate:: | CE RoHS UL SASO Certifications | ||
| High Light: | 6500cd/Sqm Stadium LED Display,IP65 Stadium LED Display,280W/sqm Perimeter Led Display |
||
Perimeter advertising led display video P10 led display for advertising Football Basketball Volleyball places
Product characteristic

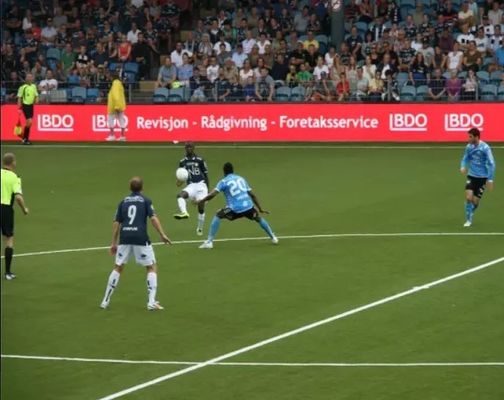

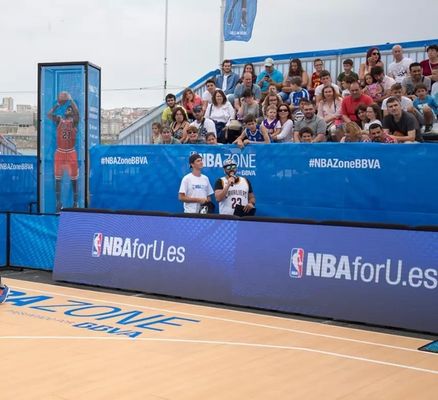

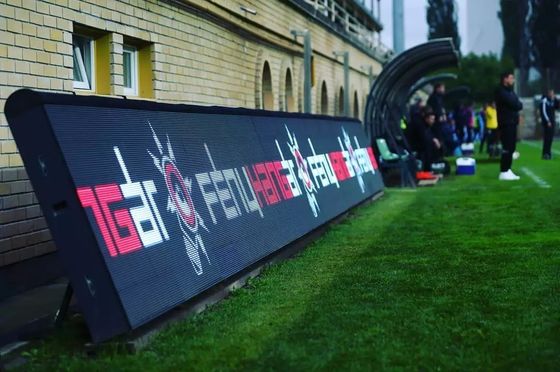

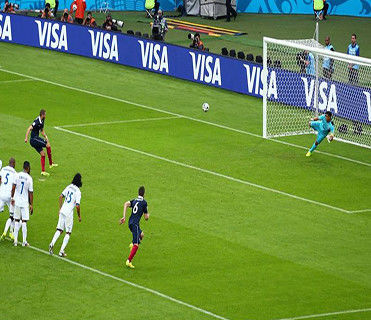

The stadium led displays are widely used in the football field, basketball court , swimming center and diving center.
1. Show function(advertising, such as Nike, Coca cola,etc)
2. Function of time and score(live showing the score)
3. Information processing function
4. Emergency treatment function
Parameter specification
| model | P8 | P10 | |
| Pixel unit module | Pixel pitch(mm) | 8 | 10 |
| Pixel density (dots/sqm) | 15625 | 10000 | |
| LED type | SMD | SMD | |
| Module size(mm) | W320xH160 | W320×H160 | |
| Pixel composing | RGB full color | RGB full color | |
| Pixel unit screen | screen size(mm) | 960*960mm | 960*960mm |
| module Resolution (nits) | 32*16 | 32*16 | |
| Cabinet structure | Water-proof | Water-proof | |
| screen material | Ironed steel cabinet | Ironed steel cabinet | |
| Protect degree | IP65 front ,IP54 rear | IP65 front ,IP54 rear | |
| Viewing distance(m) | 8-100m | 10~100m | |
| Brightness(cd/sqm) | ≥6000 cd/sqm | ≥6000 cd/sqm | |
| Power consumption (w/sqm) | Max 850W/sqm ,Min 280W/sqm | Max 600W/sqm ,Min 200W/sqm | |
| Driving IC | 1/4 scan MBI Brand Driver | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥960-2000 | ≥960-2000 | |
| Viewing angel(c) | H120 V120 | H120 V120 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc | |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | ||
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | ||
| Gray | 65536 | ||
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | ||
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | ||
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | ||
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | ||
| Average No Failure Time | 20000 hours | 20000 hours | |
| Life span | 100,000 hours | 100,000 hours | |
| Out-of Control rate | 0.0001 | 0.0001 | |
| To floor drain current | Less than 3.5MA | Less than 3.5MA | |
| Control system | Synchronized | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional | -20°C—65°C Optional | |

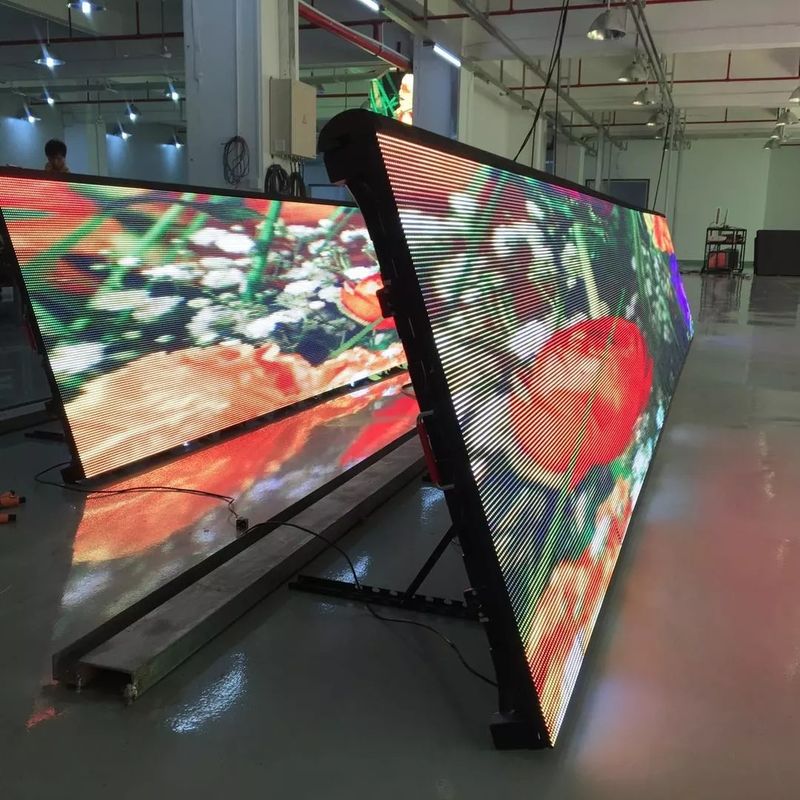

Cabinet photo
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
