Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | plywood case, flight case, you choose what you like. |
| Delivery Time: | 7-16 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm per month |
| Application:: | For Advertising Led Video Wall | Color:: | Full Color Video And Map |
|---|---|---|---|
| Refresh Rate:: | 3840Hz | Cabinet Dimension:: | 576x576mm Or Customized. |
| Name:: | P3 Led Advertising Screen | Module Resolution:: | 128*64dots |
| Resolution:: | 111111 Pixels/sqm | Function: | Advertising Led Video Wall |
| Warranty:: | 2 Years | ||
| High Light: | 1200nits Flexible Led Screen,SMD2121 Flexible Led Screen,FCC Curved Led Display Module |
||
Indoor advertising display large wall screen factory direct sales P3 unit 576x576mm led video wall panel for advertising
1.Standard dimension, module size: 192mm*192mm, cabinet size: 576mm*576mm,
compatible model3mm pixel pitch.
2.High precision die cast aluminum cabinet, light weight, cute size,strong and stable, better meet
outdoor rental screen.
3.Special hanging and seat mounted design,accurate, fast and flexible positioning installation,
can effectively respond to different application areas.
4.Seamless unit box, 120 degree all around view angle,and special module mask which assure
good looking for screen surface when it is turn off.
| Specifications | |
| Item | P3 |
| Pixel Pitch | 3 mm |
| Pixel Configuration | 3in1 (1R1PG1B) |
| Module Size(MM) | 192x192mm |
| Module Resolution(Dots) | 64*64 |
| Module Weight(Kg) | 0.36 |
| Package LED Mode | SMD2121 |
| Max Power(Watt) | 21 |
| Pixel Density(Dots/SQM) | 111,111 |
| Driving Method | Constant Current Driving |
| Scan Method(Scan) | 1/32 |
| Interface Way | HUB 75 |
| Brightness(CD/SQM) | ≥ 1200 |
| Safety Standard | CCC,FCC,ROHS,TUV,CE,ETL,UL,BIS..... |
| Unit Cabinet Specifications | |
| Cabinet Size(MM) | 576x576mm |
| Cabinet Composing(PCS) | 8 |
| Power Supply Mode(Per Cabinet) | 5V60A |
| Cabinet Resolution(Dots) | 128x128 |
| Optimal Viewing Distance(M) | 3-300 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree |
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree |
| Relative Humidity | 10% ~ 95% |
| Power Supply Specifications | |
| Operating Voltage | AC:100V~120V AC:220~240V |
| Average Power(W/SQM) | 150-350 |
| Max Power Consumption(W/SQM) | ≤ 800 |
| Current | ≤ 20mA (single LED) |
| Control System Specifications | |
| Computer | Pentium4 or above P4 or above |
| Operate System | Win7-11/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main Technical Parameter Specifications | |
| Driving Device | Constant Current Driving |
| Refresh Rate | ≥ 1900-3840Hz |
| Gray/Color | RGB each 256 grade, can display 16.7color |
| Lifespan | ≥ 100000hours |
| Power Switch | RGX Automatic Switch |
| Display Mode | 2048*10241024*7681280*960mm |
| For more information please contact us . | |

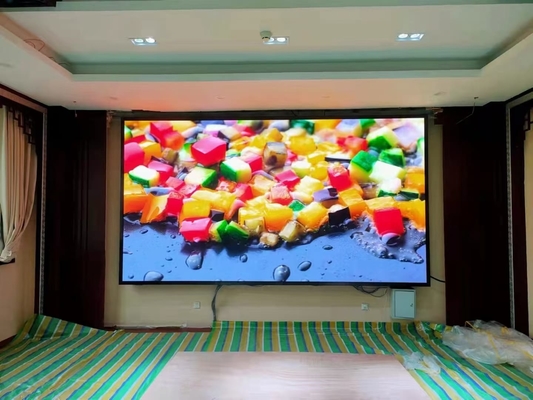

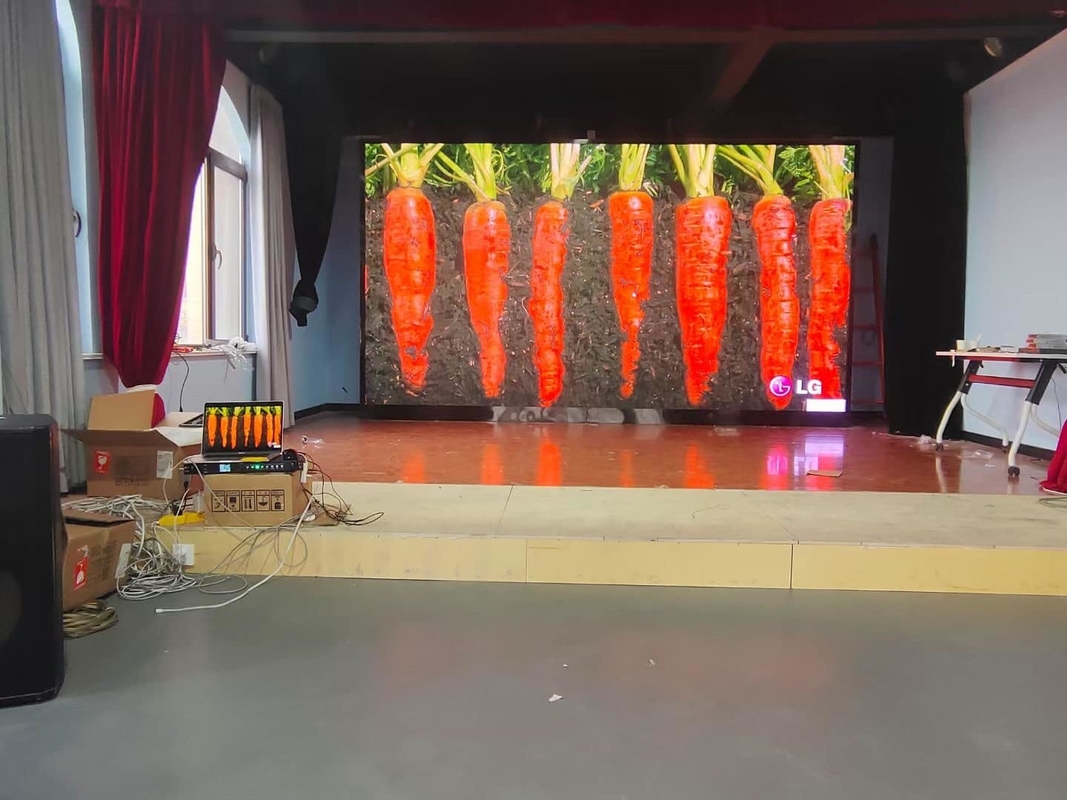

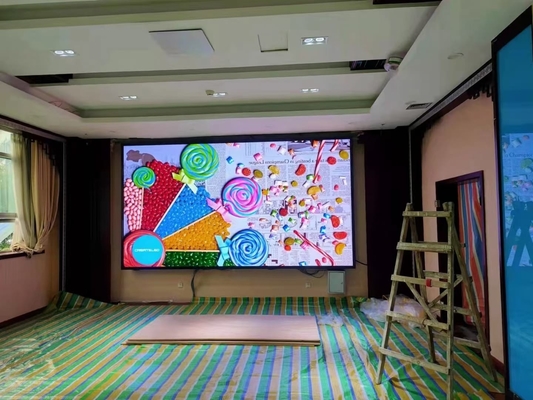

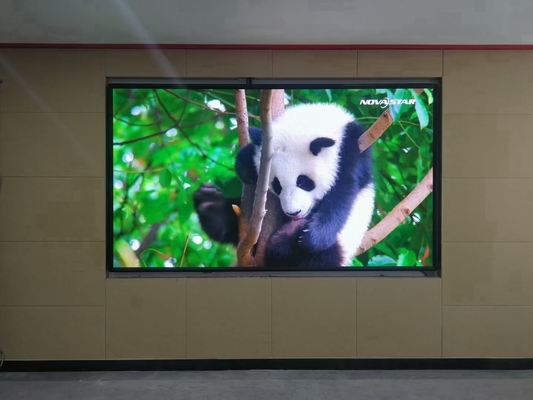

Our case
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit
Contact Person: BOSCO
Tel: +8615177780539
