Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | woooden case ,flight case ,it is up to you |
| Delivery Time: | 8-16 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Stadium Perimeter, Outdoor Advertising Led Screen | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 320*160mm | Pixel Pitch:: | 10mm |
| Product Name:: | P10 Outdoor Stadium Led Display | Cabinet Material:: | Iron Cabinet |
| Scan Mode:: | 1/2scan | Brightness:: | 6000-7500cd/sqm |
| Pixel Density:: | 10000dots/sqm | LED Control System:: | Novastar,Linsn,Colorlight,Huidu |
| Power Supply:: | G-energy,Cl-power,meanwell | Viewing Angle:: | Horizontal:140 Vertical:140 |
| Warranty:: | 2 Years | ||
| High Light: | 7500nits Live Broadcast Led Screen,P10 Live Broadcast Led Screen,Flicker Free Stadium LED Scoreboard |
||
Outdoor led display module Special Features

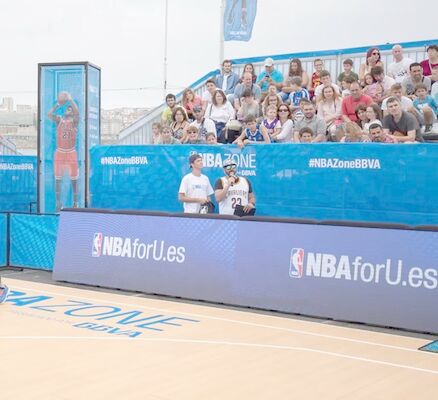

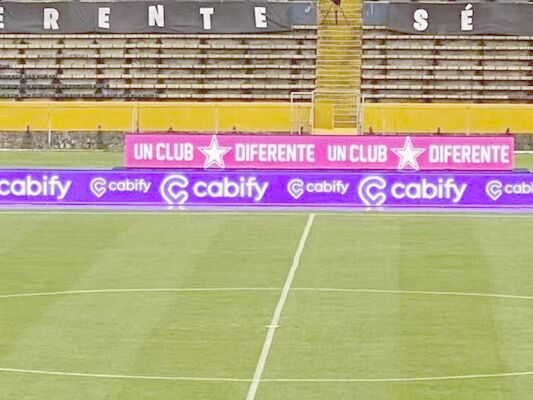

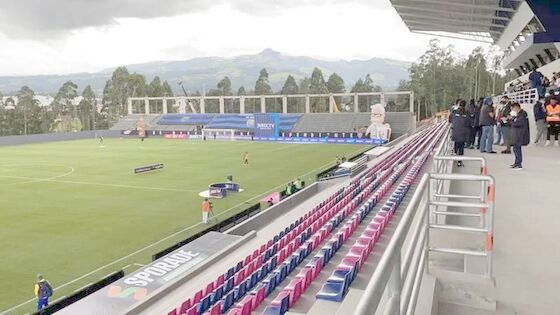

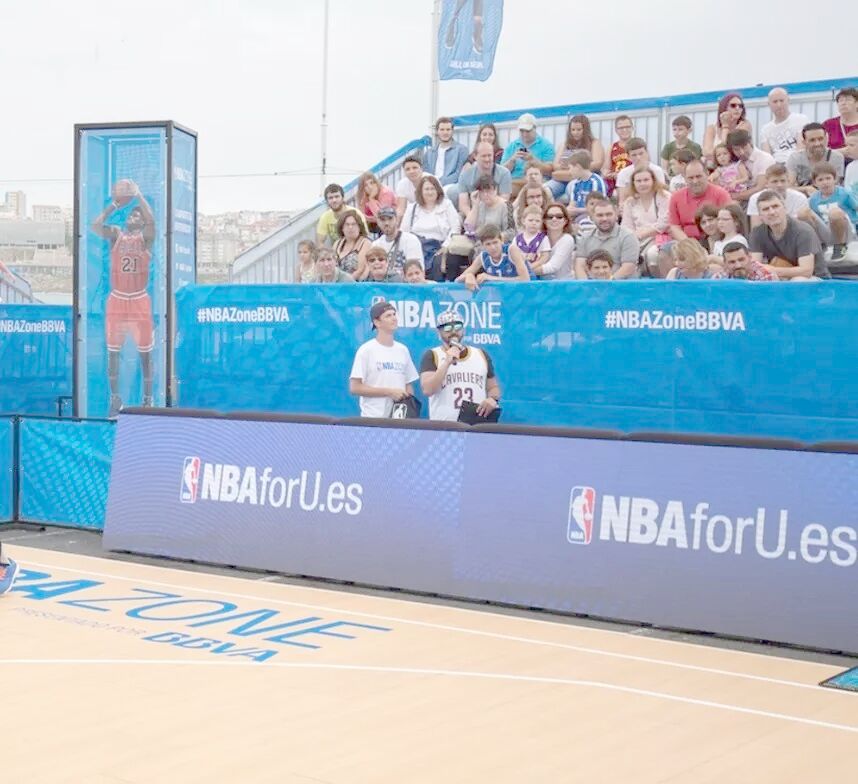

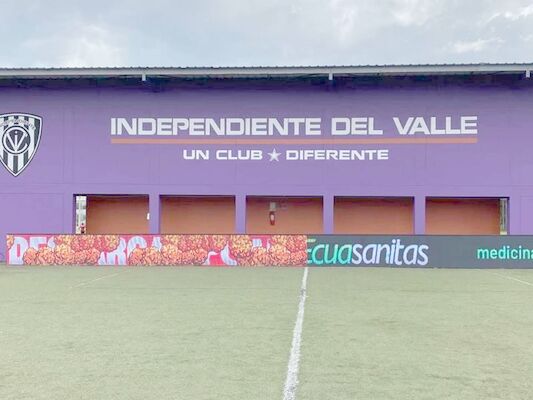

1.Stadium Perimeter LED Screen, effect image quality with high brightness and high refresh rate; Clear and vivid pictures and videos even under direct sunlight, very impressive way for customer’s brand promotion.
2.High brightness and stable performance lead long lifespan and low power consumption.
3.Accurate color uniformity and smoother, flicker-free video displaying.
4.Wide viewing angle, high contrast, high brightness (adjustable), high intensity (14bit gradation processing), high refresh, softer image, display life like images to meet the high-speed motion picture display.
5.LED display production capacity per day: 3,000sqm/month.
6.Strong R&D strength, 38000 square meter standard workshop.
Outdoor module Life is long, Stable, Save, High brightness
1.High protective dust waterproof and leakage.
2.Protection grade IP65 cabinets guidance before and after the glue tank panel cover circuit module to ensure worry-free.
3.Lamp bead reverse polarity, higher brightness, face to face with fierce can clear display screen.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the design firstly based on our sample.

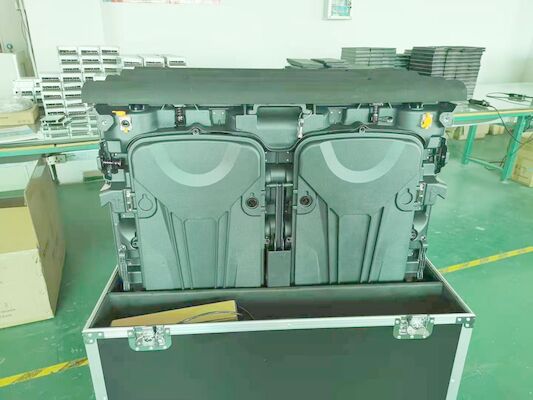

Packaging Details
Pack by flight case
Flight case size: Customized
Usually 1 flight case contain 6 cabinets
Professional & Trustworthy & Advantageous
1.Found in 2009,Scree® have developed into two factories, covering totally 38000 square meter area. Owned 30 SMT automated product lines.
2.SMD technology takes super wide viewing angle for the LED screen.
3.Manufactured by using best quality material, had lots of spot goods, can solve your urgent orders.
4.Certificated by CE,RoHS,CCC,FC,UL,ISO9001:2008.
Why choose us ???
1.High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
2.High refresh and gray level: realistic images , could meet the
requirements of high visual quality of commercial use.
3.Adopted the latest LED technology and control technology, have higher resolution and more vivid colorful and less component system electronic components to reduce the failure rate.
Company System: we have been in LED industry for almost 10 years, focusing on the led display, and we have completed more than 3000 projects home and aboard, thus we are fully experienced to provide led display solutions. We are focusing and professional!
R&D System: we have our R&D team with more than 10 years’ experience, and we will launch new products according to the customers ‘needs every year or even each quarter.
Products System: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as advertising led poster, soft led display and led curtain mesh, they are widely used for shopping mall, stage, events, conference room, church etc. meeting the demands of message display and delivery.
Manufacturing System: we have strict QC control and manufacturing management process, which enable our products high quality and stable working performance.
Service System: we have specialized technicians before and after sales. And strong marketing team to offer you the solutions 24 hours.
♦ Product specification
| outdoor SMD P10 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 64x32 | |||||||||||||
| Module size/mm | 320*160 | |||||||||||||
| View distance | ≥0.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >7500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <750W | |||||||||||||
| Average power:/㎡ | <200W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1).Will you use it indoor or outdoor?
2).Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3).what is the approximately size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market, for big size led screen(usually more than 20sqm) need to use synchronous control system, below 20sqm it's up to you to use syn or asyn. But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
Q4: How can you ensure the led display product quality?
A: We have nearly 10-year experience in producing Led Display with good reputation in this industry.
We would do 72hours aging to promise 100% non-dead chips before shipment.
Q5:What is the Delivery Time ?
A:Production time would be about 15-25 days according to your order quantity.
Q6: How do you ship the goods and how long does it take to arrive?
A:It is optional and we respect customer's choice. You can choose to ship by DHL(FedEx, UPS, TNT etc) international express company. Airline and sea shipping also optional, according to your goods weight and volume and the delivery time you need.
Q7:How to install it after i received it?
A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
Q8:What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.Also, we can send technical to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
