Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO,CB |
| Model Number: | SCXK-SMD3.91 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case ，flight case，it is up to you. |
| Delivery Time: | 3-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4200 sqm month |
| Resolution: | 3840hz | Product Name: | Indoor Full Color P3.91 500x500mm Led Screen |
|---|---|---|---|
| Cabinet Size: | 500x500mm And 500x1000mm | Led Lamp: | Kinglight Led Lamp |
| Control Cards: | Novastar，linsn，huidu | Warranty: | 5 Years |
| High Light: | P3.91 LED Video Wall,kinglight lamp LED Video Wall,3840Hz Indoor Rental LED Screen |
||
Advantages:
1.Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 500mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.
2.High-precision die-cast aluminum cabinet, seamless unit box.
3.New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.
4.Total hard connection ,easy to take off the power supply and receiving card.
5.Module with touchable back screw , uncessary to prepare tool, easy to fix and take off modules by hand.
6.Corners with small protectors, protect pixel while moving.
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 3.91 |
| Pixel matrix per panel | 64*64 |
| Pixel density (pixelsm) | 65410 |
| Cabinet Dimensions(L*W) mm | 500*500mm |
| Module Dimensions(L*W) mm | 250*250 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 7 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

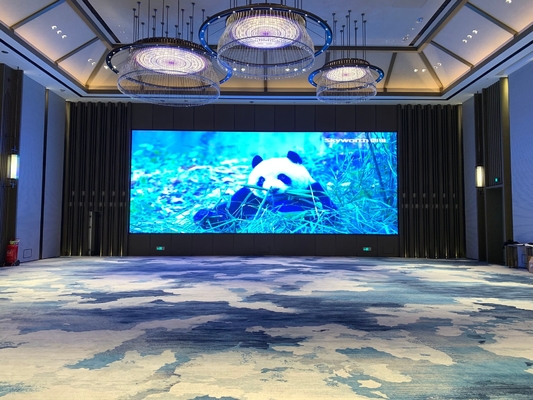

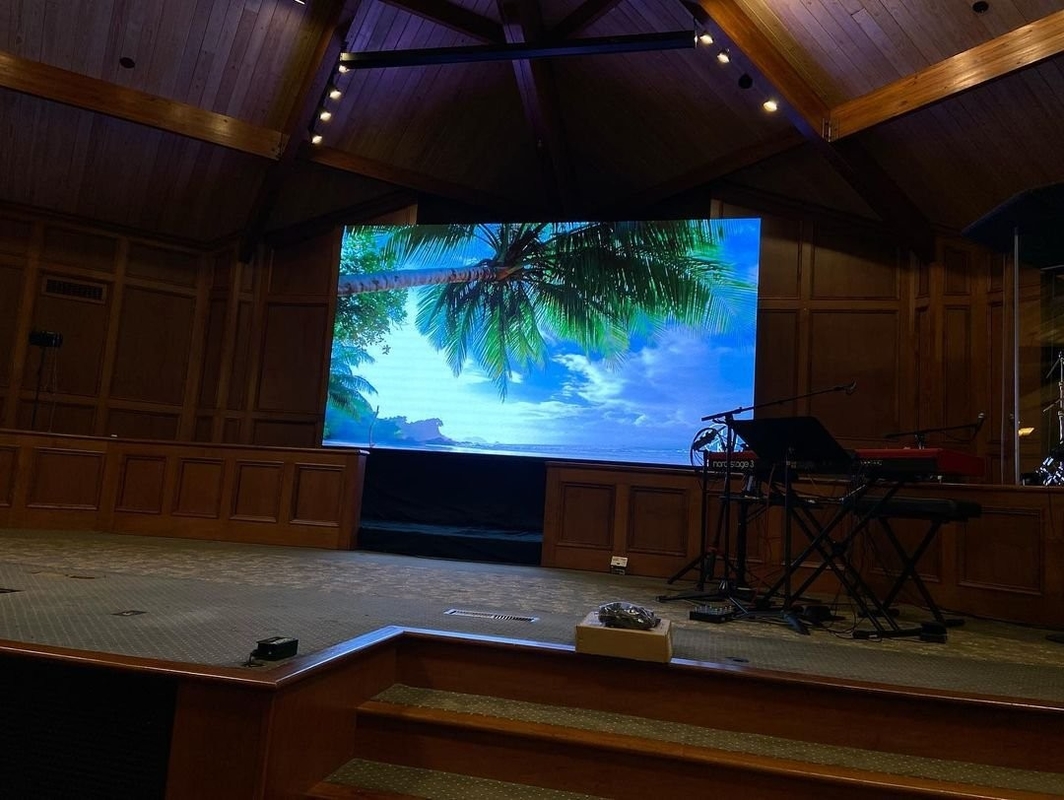

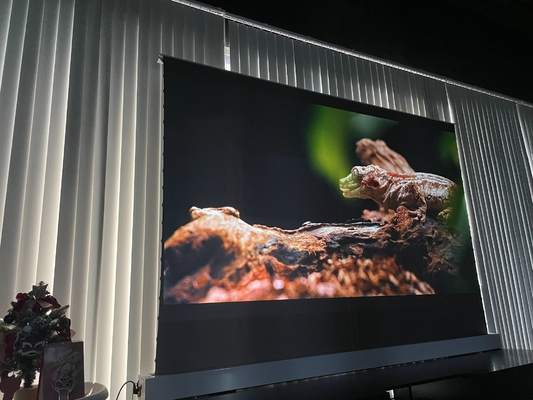

Our case
