P2.5 Indoor Digital LED Advertising Board 640*480 Die Casting Aluminum LED Screen

Product Details:

Place of Origin:	China，shenzhen
Brand Name:	SCX
Certification:	CB,CE,UL
Model Number:	indoo p2.5

Payment & Shipping Terms:

Minimum Order Quantity:	13sqm
Price:	negotiation
Packaging Details:	wooden case，flight case
Delivery Time:	3-12 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	4600 sqm month

Contact Now

Detailed Product Description

Product Name::	P2.5 Indoor LED Module Advertising Display	Display Function::	Video Picture Graphic Text Message
Module Resolution::	64x32 Pixels	Brightness::	1000cd/sqm
Refresh Frequency::	1920-3840 HZ/S	Cabinet Material::	Die-casting Aluminum
High Light:	Indoor Digital LED Advertising Board ODM , 1000cd/sqm Digital LED Advertising Board

Specification

P2.5 Indoor Rental
Best viewing distance	2-15 m
Viewing angle	140° W ; 140 °H
Input power frequency	60 Hz
Defect rate	≤0.0001
Maintenance mode	front / back
Average power consumption	300 W / m2
Max power consumption	600 W / m2
Operating temperature	–30℃ ~ +60 ℃ 10% ~ 95% RH

Product Description

	P2.5 Indoor LED module
Pixel pitch	2.5 mm
Pixel configuration	SMD 2121
IC	MBI 5124 / MBI 5153
LED lamp	Nation Star / Epistar / Kinglight

	P2.5 Indoor LED module
Module size	160160 mm / 320160 mm
Module resolution	6464 pixel / 12864 pixel
Pixel density	160,000 dots/m2
Scan	1/32 S

	P2.5 Indoor LED cabinet
Cabinet size	640*640 mm
Cabinet resolution	256*256 pixel
Cabinet material	Die-casting Aluminum
Cabinet weigt	30 kg/m2
Controller card	Nova Star /Linsn /Colorlight
Control method	Synchronization /Asynchronization

Production Process

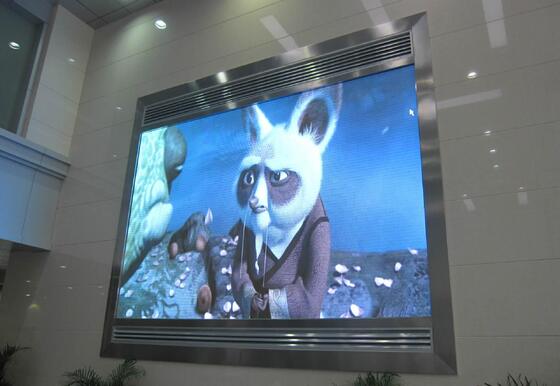

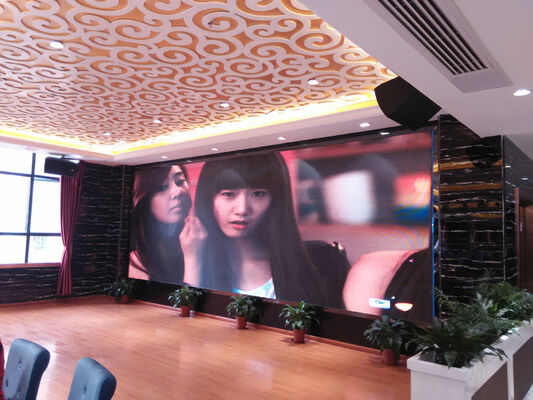

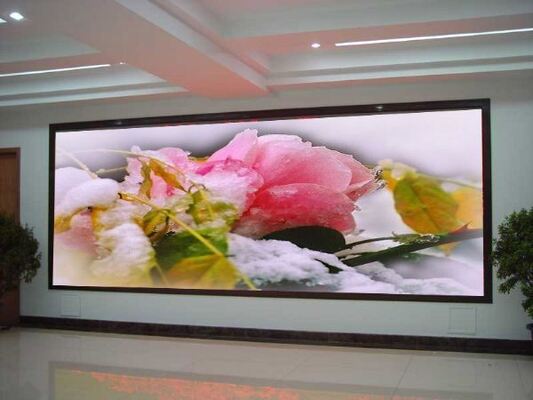

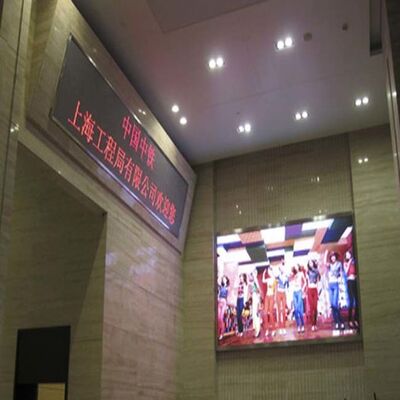

Applications

What is the shipping package of the product? Our company currently mainly provides the following packaging types: (1). Cartons: modular cartons and honeycomb cartons; (2). Wooden cases: common and export wooden cases; (3). Airbox; (4). Packaging requirements specified by the customer;

How to install the shipped LED display box into a complete LED screen? Before shipment, we will classify each material and affix corresponding material identification and number on each package. When shipment, we will provide structure drawing, installation drawing and data connection drawing. In addition, our service engineers are on line 24 hours a day and can consult relevant questions at any time.

How about the after-sale service? The company has set up a special after-sales service department, which is responsible for the tracking service of this order from the beginning of placing the order. The after-sales service department has service engineers on line 24 hours a day, so that customers can deal with the problems in a timely manner.

How to choose the appropriate LED display for you? Before you buy the LED display screen, as long as you put forward the use of the product place, purpose, size, we will provide several options for customers to choose according to the requirements.
