P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement

P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement

  • P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement
  • P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement
  • P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement
  • P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement
  • P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement
P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement
Product Details:
Place of Origin: China，shenzhen
Brand Name: SCX
Certification: CB,CE,UL
Model Number: outdoor p10
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: negotiation
Packaging Details: wooden case，flight case
Delivery Time: 7-16 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3600 sqm month
Contact Now
Detailed Product Description
LEDLamp Bead Model:: Kinglight/Nationstar Refresh Rate:: ≥1920Hz
Pixel Density:: 10000dots/m2 Brightness:: 6500cd/sqm
Cabinet Material:: Iron Cabinet Certificate:: CE ROHS FCC
High Light:

P10 Outdoor Full Color LED Display

,

Fixed P10 Outdoor LED Display

,

Waterproof P10 Outdoor LED Display

Products Description
Model
P6
P8
P10
LEDLamp Bead Model
Kinglight/Nationstar
Kinglight/Nationstar
Kinglight/Nationstar
Pixel Pitch(mm)
6mm
8mm
10mm
Pixel Density(Dots/㎡)
27777
15625
10000
Pixel Configuration
SMD3535
SMD3535
SMD3535
Scan Mode
8
4
2
Brightness (CD/㎡)
≥5000
≥5500
≥5800
Refresh Rate
≥1920Hz
≥1920Hz
≥1920Hz
Horizontal Viewing Angle(Deg)
140°
120°
140°
Vertical Viewing Angle(Deg)
120°
120°
120°
Driver Chip
ICND2037
ICN2037BP
ICND2037
Row Decoding Chip
ICN2012
RUC7258
ICN2012
Module Dimension
192*192mm
256*128mm/320*160mm
320*160mm
Module Resolution (W*H)
32*32
32*16/40*20
32x16
Panel Dimension(mm)
576*576mm/768*768mm/960*960mm
512*512,768*768,1024*1024/640*640,960*960
640*640/960*960
Input Voltage (DC)
5V
5V
5V
Module Maximum Current (AMPS)
≤6A
≤8A
≤8A
Maximum Power Consumption of Module(W)
≤30W
≤40W
≤40W
Mean Time Between
≥10000 Hours
≥10000 Hours
≥10000 Hours
Service Life
≥100000 Hours
≥100000 Hours
≥100000 Hours
Use Environment
Outdoor
Outdoor
Outdoor
Operating Temperature(℃)
-20℃-80℃
-20℃-80℃
-20℃-80℃
Operating Humidity(RH)
30-85%
30-85%
30-85%
Storage Temperature(℃)
0℃-40℃
0℃-40℃
0℃-40℃
Storage Humidity (RH)
10-85%
10-85%
10-85%
Protection Level
IP65
IP65
IP65

Features:

1. Energy-Saving and Low Power Consumption.With good lightening accordance and no mosaic
2. Can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3. Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced 4. High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5. Great Heat-dissipation, low temperature rise, waterproof IP65 6. Modularization design, easy to maintain from front and rear side
P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement 0
P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement 1
P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement 2
P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement 3
P10 Outdoor Full Color LED Display Fixed SMD Waterproof Screen Advertisement 4

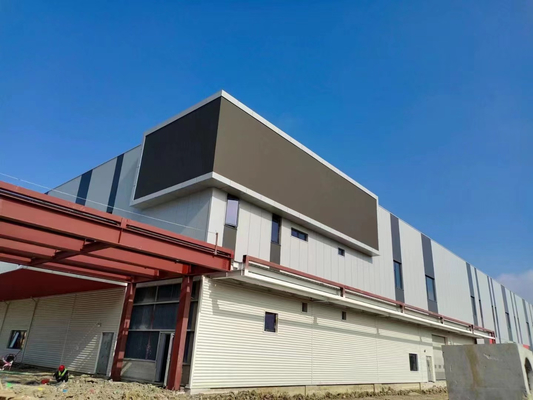

About fixed installation screen :

(1) High brightness SMD LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.

(2) With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.

(3) Weatherproof design, completely outdoor use.

(4) Easy for assembling and connection with the connector added.

(5) High color uniformity and clear image can bring you a vivid audio visual effect.

(6) The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.

(7) Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.

(8) The maintenance of pixel and single led has been realized.

(9) Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
