Indoor Full Color LED Display
Created with Pixso.

P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen

P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen

Brand Name: SCX
Model Number: indoor p3.91
MOQ: 12 sqm
Price: 600USD -960USD per sqm
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 3900 sqm per sqm
Detail Information
Place of Origin:
shenzhen,China
Certification:
CE,CB,IEICC,FC
Density:
65536dots/qm
Led Lamp::
SMD2121 Black
Brightness:
>1200cd/sqm
Driving Method::
1/16 Scaning
Use:
Shopping Mall, Exhibition Hall, Restaurant
Warranty:
3 Years
Packaging Details:
wooden case,flight case
Highlight:

Stage Indoor Full Color LED Display

,

3.91mm Indoor Full Color LED Display

,

SMD2121 Stage Video Wall

Product Description
Product Description
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 0
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 1
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 2
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 3
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 4
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 5

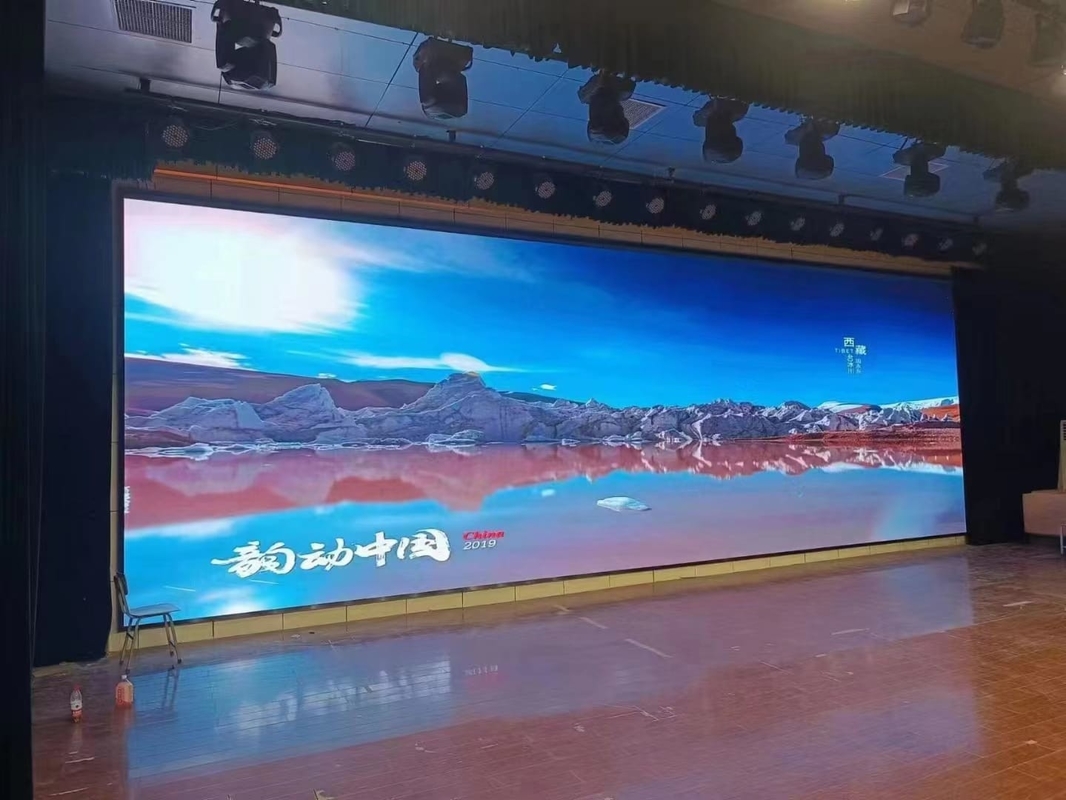

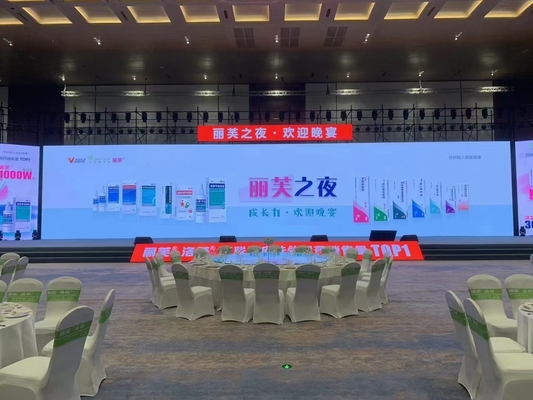

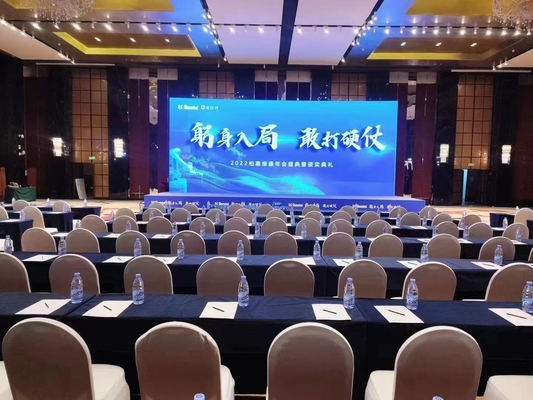

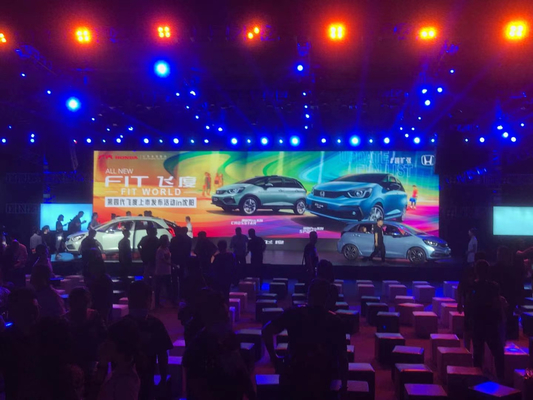

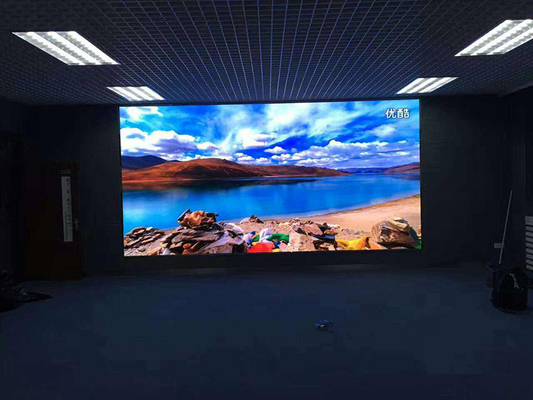

Project case

Our products are widely used in military, communications, airports, stations, ports, gymnasiums, banks, schools, factories, shopping malls, home appliances, hospitals, industry and commerce, taxation, customs, monitoring centers, energy-saving lighting and advertising entertainment and other fields.
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 6
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 7
Detailed Images
Product detail drawing
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 8
SMD LEDs
Colloid color: glossy
Luminous color: RGB tricolor half-power angle: 110°

Chip material: AlGaInP2 & InGaN ■ Black shell of the bracket, inner foot structure, high contrast
Application effect or application mode
Product Presentation

P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 9
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 10
P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 11
Items
Parameters/Specifications
Pixel pitch
3.91 mm
Display density
65536 dots/m2
Luminous dot color
Full color
LED composition
RGB SMD2121
Module size
250*250mm
Module resolution
64*64
Output Voltage
DC5V, 40A
Module Rated Power
15W
Module interface
75 interface
Module thickness
15MM

Product introduction: application, function, style, etc

P3.91 Indoor Full Color LED Display Stage Video Wall Large Screen 12
Product Name
SMD RGB LED Display Module
Material
ABS, Copper
Input Power
AC 240/100 ± 10%,50Hz/60Hz
Output Voltage
5V 40A
Environmental temperature humidity
Temperature:-20℃~+60℃,Humidity:10%-60%
Lifetime
≥80,000 hours.
Continuous working time
>72 hours
  • Size introduction and size picture

Pixel pitch
Scan
LED Size
Module Size
Panel Size
3.91 mm
1/16
SMD2121
250*250mm
500*500mm
3.91 mm
1/16
SMD2121
250*250mm
500*1000mm
