Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | shenzhen,China |
| Brand Name: | SCX |
| Certification: | CE,CB,IEICC,FC |
| Model Number: | indoor p3.91 |
| Minimum Order Quantity: | 16 SQM |
|---|---|
| Price: | 600USD -960USD per sqm |
| Packaging Details: | wooden case，flight case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3200 sqm per sqm |
| Certificate: | CE ROHS | Warranty: | 2 Years |
|---|---|---|---|
| Brightness: | 1500cd/sqm | Life Span: | 100000hours |
| Cabinet Size: | 500*500 &1000*500 | Product Name: | P3.91 Led Screen |
| High Light: | P3.91 Curve LED Video Wall,1500cd/sqm Curve LED Video Wall |
||
Famous Brands Raw Material Selection
1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
| Item | Technical Specifications | ||||
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| LED Configuration | SMD1010 (3-IN-1) | SMD1010 (3-IN-1) | SMD1010 (3-IN-1) | SMD1010 ( 3-IN-1) | SMD2121(3-IN-1) |
| Pixel Density | 112896pixels/sqm | 65746pixels/sqm | 43264pixels/sqm | 28224pixels/sqm | 25600pixels/sqm |
| Module Size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet Szie | 500mm*500mm/500mm*1000mm | ||||
| Cabinet Resolution | 168*168pixels | 128*128pixels | 104*104pixels | 84*84pixels | 80*80pixels |
| Cabinet Material | Die-casting Aluminum cabinet with curved design LED Display Screen | ||||
| Cabinet Weight | 7Kg curved LED Display panel cabinet | ||||
| Brightness | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm |
| Color Temperature | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K |
| Viewing Angle | H:160°/V:160° | ||||
| Ave Power Consumption | 230W/sqm | 230W/sqm | 230W/sqm | 230W/sqm | 230W/sqm |
| Max Power Consumption | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm |
| Drive Mode | 1/28scan | 1/16scan | 1/13scan | 1/7scan | 1/10scan |
| Best Viewing Distance | ≥2.97m | ≥3.91m | ≥4.81m | ≥5.95m | ≥6.25m |
| Input Voltage | AC220V/50HZ or AC110V/60HZ(±10%) | ||||
| Output Voltage | 5V 40A | ||||
| Refresh Rate | ≥3840Hz | ||||
| Frame Rate | 50/60Hz/sec | ||||
| Protection Level | IP43 | ||||
| Life Span | 100,000hours | ||||
| Malfunction dot rate | <0.0001 | ||||
| Storage Temp/Humidty | —40~+60°C/10-80%RH | ||||
| Operating Temp/Humidty | —25~+50°C/10-90%RH | ||||
| Input Signal | RF,TV.RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||
| Pc Operating System | Microsoft Windows 7.8.10.98.2000.XP and Vista | ||||

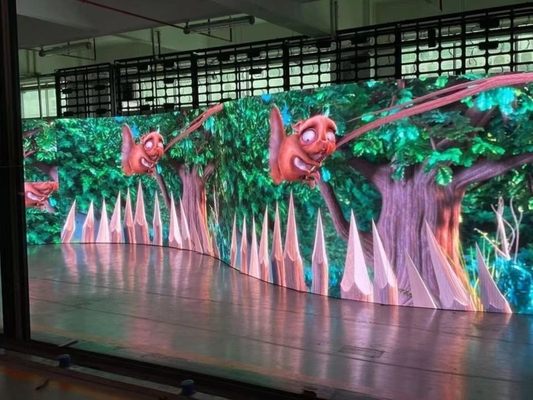

Indoor P3.91 high resolution curve LED video wall/LED screen panel/hd LED display screen for TV studio stram video live show
Indoor P3.91 high resolution curve LED video wall/LED screen panel/hd LED display screen for TV studio stram video live show
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Q3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
