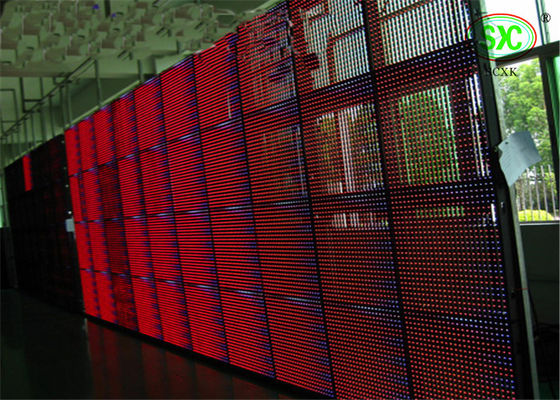

High resolution plaza PH10 LED video curtain With 16dots*16dots Resolution

High resolution plaza PH10 LED video curtain With 16dots*16dots Resolution

  • High resolution plaza PH10 LED video curtain With 16dots*16dots Resolution
High resolution plaza PH10 LED video curtain With 16dots*16dots Resolution
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: The Curtain Led Display Module Size(W * H): 160mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 10mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 16dots*16dots
High Light:

rgb led curtain


led curtain screen

10mm the curtain led Display With 16dots x 16dots Resolution
♦ Item Feature
1. LED Curtain Dsplay with CE , ROHS,FCC,ISO.
2. High brightness and support brightness automatically adjustment,Mainly used stage show.
3. Long lifespan, more than 50,000 hours;
4. Easy & simple installation interface and user friendly software to ensure the user friendly interface of
  the  LED curtain display system;
5. Rich LED curtain display engineering experience both in domestic and international market.
♦ Applications
 Public area
 Music concert
Television Relay
Advertising media
Sports stadiums
We are the professional manufacturer of outdoor and indoor led display. With more than 8 years experience, our led display enjoy good reputation . The curtain led display P10 led display is very high definition and brightness,its’ very attractive and hot sell.
1, It’s very flexible and slight

  1. full color and high definition and quality.
  2. Pixel composing:1R1G1B
  3. DC:5V and AC110V-220

5, 2 years warranty, more than 10 years life use
6, high quality and definition
The detailed parameter as follows.

1,  Item Name

  technology parameter

2,  pixel tube:

   pixel pitch:10mm;  primary colors: pure red+pure green+pure blue ,
   color composing: 1R1G1B
   Density 10000dots/sq m;  SMD3528

3 , unit box

  module size:160mm×160mm;  Module resolution:16X16
  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024

5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m
  max consumption:≤650 W/ sq m

6, main parameter

  1. driving mode: 1/8scan

2)refreshing rate:≥400Hz/s
3)frame frequency:≥60Hz/s
4)gray scale/color:≥16.7Mcolors(Synchronized)
5)manage gray:≥72bit
6)brightness:≥2000cd/sq m
7)color temperature condition:3500K~9500K,be adjustable
8)adjusting style of brightness: hand movement/auto
9)video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10)average trouble-free time:≥5000hours
11)evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12)switch power loading:5V/40A
13)display mode of computer:1024×768


  1. Applications:

 The single  color led display is very popular in LED display advertising field. This type                 digital billboards are widely used  ,store ,stadium,shopping ,airport etc;
 2. Features :
Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle
Super brightness the curtain LED display
In the curtain led display series, The module design of the curtain led display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.
1, Superb  brightness  and color uniformity and reproduction.  Brightness  variances  within+/-2.5%
2, High  reliability:  data  hot  backup  aims  to  avoid  any  communication  risks  during  the  show;  support automatic fault detection
3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition
 Methods for Quality Assurance
a. Aging
1. 100% fully test

  1. Condition: 72 hours with 256 Grey level

b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

Competitive Advantage:
1.  2 years’ warranty with free repair service
2.  24/7 Hours online Remote Support
3.  Solution and PCB design
4.  Free factory training
5.  On site installation instruction and regular inspection
6,  Small order accepted.
