Waterproof P6 DIP Outdoor Full Color LED Display , RGB LED Billboards

Waterproof P6 DIP Outdoor Full Color LED Display , RGB LED Billboards

  • Waterproof P6 DIP Outdoor Full Color LED Display , RGB LED Billboards
Waterproof P6 DIP Outdoor Full Color LED Display , RGB LED Billboards
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P6 Led Screen Module Size(W * H): 192mm*192mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 6mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 32dots*32dots
High Light:

full color outdoor led display

,

outdoor full color led screen

Shenzhen ShiChuangXinKe Electronics Co.,Ltd



Waterproof P6 DIP Outdoor Full Color LED Display , RGB LED Billboards



1.1.1 Specifications



1, Pixel composing:1R1G1B

2, view angle:H120,V:60

3, Voltage:DC5V

4, 2 years warranty, more than 10 years life use

5, full color and high definition and quality

6, color temperature condition:3500K~9500K,be adjustable





The detailed parameter as follows.



1,  Item Name

  technology parameter

2,  pixel tube:

   pixel pitch:5mm;  primary colors: pure red+pure green+pure blue ,

   color composing: 1R1G1B

   Density 40000dots/sq m;  SMD3528

3 , unit box

  module size: 160mm×160mm;  Module resolution:32X16

  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°

viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024



5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m

  max consumption:≤650 W/ sq m

6, main parameter

  1. driving mode: 1/8 scan

2) refreshing rate:≥400Hz/s

3) frame frequency:≥60Hz/s

4) gray scale/color:≥16.7Mcolors(Synchronized)

5) manage gray:≥72bit

6) brightness:≥2000cd/sq m

7) color temperature condition:3500K~9500K,be adjustable

8) adjusting style of brightness: hand movement/auto

9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

10) average trouble-free time:≥5000hours

11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

12) switch power loading:5V/40A

13) display mode of computer:1024×768

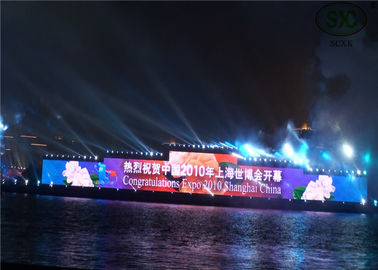

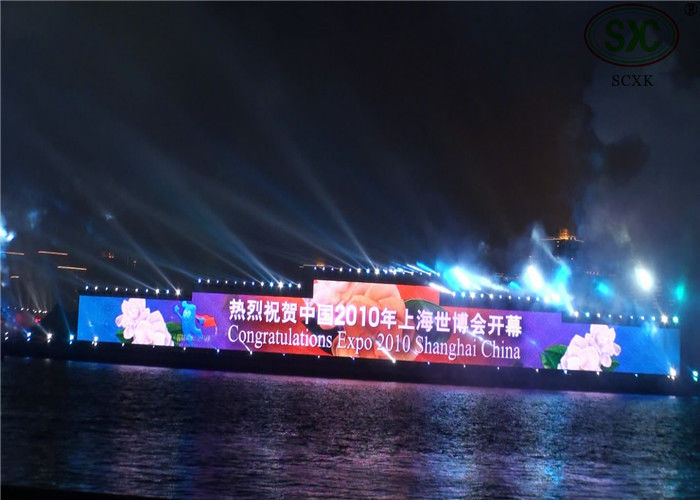

Applications:



The led screen is very popular in LED display advertising field. This type digital billboards are widely used  ,store ,stadium,shopping ,airport etc;

 2. Features :



Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system

and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Super brightness led screen advertising



In the led screen series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.

1, Superb  brightness  and color uniformity and reproduction.  Brightness  variances  within+/-2.5%

2, High  reliability:  data  hot  backup  aims  to  avoid  any  communication  risks  during  the  show;  support automatic fault detection

3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition



 Methods for Quality Assurance



a. Aging

1. 100% fully test

  1. Condition: 72 hours with 256 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range

Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.





Competitive Advantage:

1.  2 years’ warranty with free repair service

2.  24/7 Hours online Remote Support

3.  Solution and PCB design

4.  Free factory training

5.  On site installation instruction and regular inspection

6,  Small order accepted.
