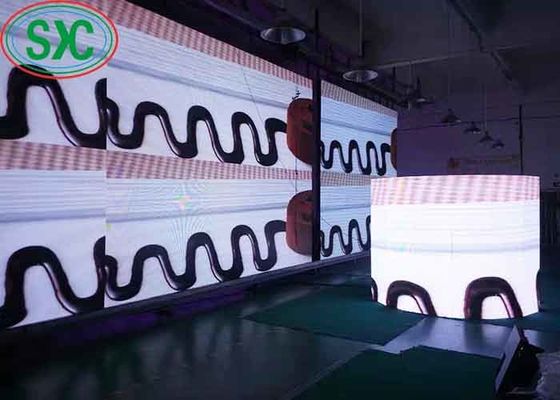

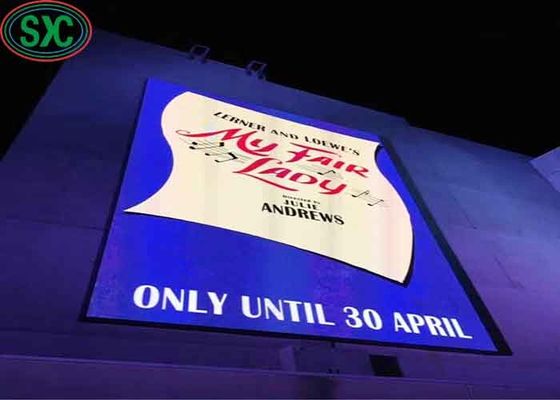

High definition outdoor p5 1R1G 1B color Led Display , 32dots x32dots Resolution

High definition outdoor p5 1R1G 1B color Led Display , 32dots x32dots Resolution

  • High definition outdoor p5 1R1G 1B color Led Display , 32dots x32dots Resolution
  • High definition outdoor p5 1R1G 1B color Led Display , 32dots x32dots Resolution
High definition outdoor p5 1R1G 1B color Led Display , 32dots x32dots Resolution
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000/ Sq m per month
Contact Now
Detailed Product Description
Product Name: Outdoor Full Color Led Display Module Size(W * H): 160mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: 1r1g1b
Pixel Pitch: 5mm Module Qty: 1pcs
Resolution(W*H): 32dots*32dots
High Light:

full color led signs outdoor

,

outdoor full color led screen

High definition outdoor p5 1R1G 1B color Led Display , 32dots x32dots Resolution



Shichuangxinke electronic Co.,Ltd in Shenzhen China is a real factory who making LED sign /display /billboard with high quality and competitive price.

Products:
From P1.9- P31.25 Indoor and P3.91-p10 Outdoor led display screen / Stage Rental LED display / LED truck,etc.



High definition outdoor p5 1R1G 1B color Led Display , 32dots x32dots Resolution 0



p5 SMD full color led screen technology parameter

Resolution/mm 5
Pixel configuration 1R1G1B
Pixel density/pixels/m² 40000/m²
Module resolution 32dotsx32dots
Module size/mm 160mmx160mm
View distance 4-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 5000 cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/8 scan
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 100000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <700W
Average power:/㎡ <200W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%




About our led displays



1.Wide application field & short ROI time:

commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen

air port LED display screen, telecommunication LED display screen system for information showing and instruction .



2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.



3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system



4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.



The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available










The wire or wireless controll system are available .( 3g and wifi controll will be welcome)








The steer consturction is very stable for led display,and you can purchase from your local market .





Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.




we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch



B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch

C.customized packing is acceptable
D. 20"FT container loading of 100sq.m





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
