| Brand Name: | SCXK |
| Model Number: | P3.91 |
| MOQ: | negotiation |
| Price: | negotiation |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5,000/ Sq m per month |
Shenzhen Shichuangxinke Electronics Co., Ltd started in 2005 in Shenzhen, China, and has been focusing on the international market to realize the global strategic layout. With a comprehensive global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.
Relying on strong technical strength, advanced production management systems, complete operating programs, and our international business team, we successfully established a base in Shenzhen that combines R&D, production, and sales capabilities.

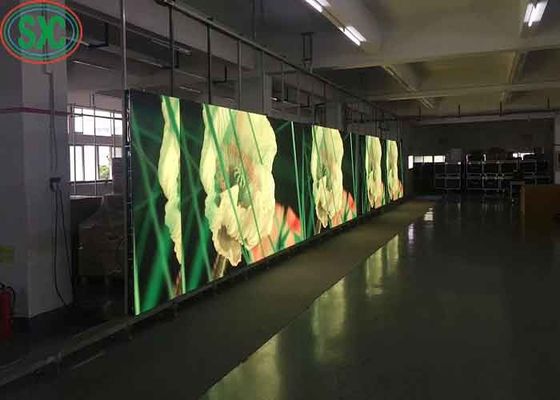

| Product Name | High resolution outdoor P3.91 advertising LED screen rental use, with 1/16 scanning 250mm*250mm |
|---|---|
| Service | Your inquiry will be replied to within 12 hours |
| Brand | SCX |
| Material | Stainless steel, aluminum, steel, epoxide resin, PE |
| Item | Indoor P2.5, P3, P4, P5, P6, P7.62 Outdoor P6, P8, P10, P12, P16, P20 |
| Feature | High brightness, good resolution, working stability, easy installation |
| Grade | IP43-IP65 |
| Driving Mode | Constant driving current |
| Stock | Regular items of LED display have stocks |
| Color Temperature | 6500-9500K |
| Packing Method | Flight case & Plywood case or Customized Packing |
| Power Supply Request | AC85-264V (50HZ-60HZ) |
| Payment Term | T/T, Western Union |
| Delivery Time | Within 7-30 days according to your required size & quantity |

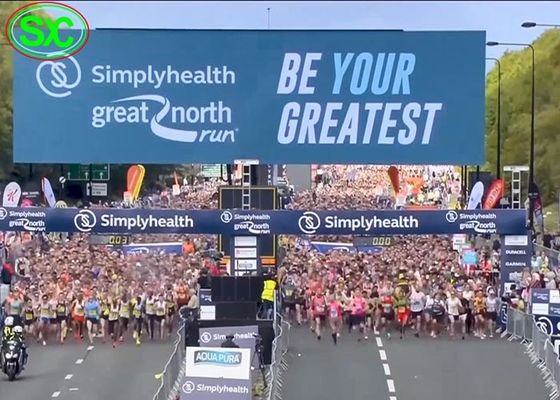

| Using Range | Shopping malls, banks, bus stations, train stations, downtown centers, airports, schools, factories, buses, taxis, and more |
| LED Lamps | Type | SMD2121 (High Brightness LEDs) |
|---|---|---|
| LED Standard | Type | Real Pixel (1R1G1B) |
| Red Wavelength | Range | 625-630nm |
| Green Wavelength | Range | 515-530nm |
| Blue Wavelength | Range | 465-475nm |
| LED Module | Pixel Pitch | 3.91mm |
| LED Module | Module Size | 250mm x 250mm |
| LED Module | Module Resolution | 64 x 64 dots |

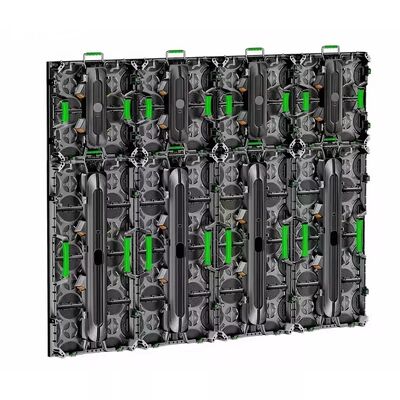

| LED Cabinet | Cabinet Size | 500mm x 500mm |
| LED Cabinet | Cabinet Resolution | 128 pixels x 128 pixels |
| LED Cabinet | Material | Iron steel cabinet |
| LED Display | Pixel Density | 65,410 pixels/sq.m |
| Drive IC | Type | MBI5024 |
| Power Supply | Connection | Series connection |
| Brightness | Level | >2500 cd/sqm |
| Display Color | Range | 16.7 million |
| Viewing Angle | Range | 110° (Horizontal), 50° (Vertical) |
| Best Viewing Distance | Range | 1m ~ 150m |
| Max Power Consumption | Level | 600 w/sq.m |
| Average Power Consumption | Level | 300 w/sq.m |
| Weight | Density | 35 kgs/sq.m |
| Refresh Rate | Frequency | 3000hz |
| Input Voltage | Range | AC220V/50H or AC110V/60H |
| Output Voltage | Specification | DC5V, 40A |
| Grey Scale Levels | Range | 1024 |
| Display Colors | Range | R(1024) x G(1024) x B(1024) |
| MTBF | Duration | 10,000 hours |
| Life-span | Duration | 100,000 hours |
| Protection Level | Rating | IP45 |
| Failure Percentage of LEDs | Rate | Less than 0.0003 |
| Working Temperature | Range | -25℃ ~ 65℃ |
| Drive Mode | Type | 1/8 scanning |
| Working Humidity | Range | 10% ~ 99% |
| Control System | Control Method | Synchronization & Asynchronization |
| Control System | System | LINSN Control System (sender, receiver, HUB with 75 interface, software) |
| Software | Application | LED Studio (LINSN) |
| Input Signal | Formats | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC, etc. |
| PC Operating System | Platform | Windows & Vista |
After the order is placed, professional training will be offered, including software use, operational safety, and equipment maintenance.
We can send professionals to conduct on-site installation and debugging in strict accordance with the requirements of the schemes and original manual.
2 years warranty, lifetime maintenance. Equipped with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem is caused by quality itself. You will be responsible for the freight cost to us. After 2 years, service is still available, but we will charge for labor, material, and freight costs.
Maintenance principles: respond in time, solve problems as soon as possible, and ensure usability. During the maintenance period of the LED display body, all maintenance charges are free. After the maintenance period, we only charge for material and labor costs.
