Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | P2.5 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5,000/ Sq m per month |
| Product Name: | Indoor P2.5 Led Display | Module Size(W * H): | 160mm*160mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 2.5mm | Module Qty: | 1pcs |
| Type: | Free Standing | Resolution(W*H): | 64dots*64dots |
| Highlight: | led display rgb,rgb led screen |
||
We are the professional manufacturer of outdoor and indoor led display. With more than 11 years experience, located in Shenzhen city which is enjoyed the name of chinese silicon valley.over the past years,our led products and service got many good comments for our clients
Methods for Quality Assurance
a. Aging
1. 100% fully test
Condition: 72 hours with 1024 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,Automatic Glue- pouring Machine, Solder Paste Printing Machine,Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
♦ Product specification
| Specifictions | |||||||||
| LED Lamps | Type | SMD2121(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 2.5mm | |||||||
| Module Size | 160mx160m | ||||||||
| Module Resolution | 64*64dots | ||||||||
| LED Cabinet | Cabinet Size | 640mmX640mm | |||||||
| Cabinet Resolution | 256pixels *256pixels | ||||||||
| Cabinets Material | Iron steel cabinet | ||||||||
| LED Display | Pixel Density | 160000pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >2500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
| Best Viewing Distance | 1.5m~160m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 35Kgs/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 1024 | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP45 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/32 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | LINSN Control System (sender,receiver,HUB with 75 interface,software) | ||||||||
| Software | LED Studio (LINSN) | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista |
||||||||

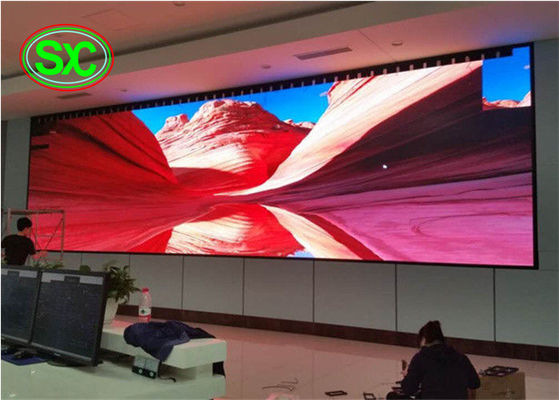

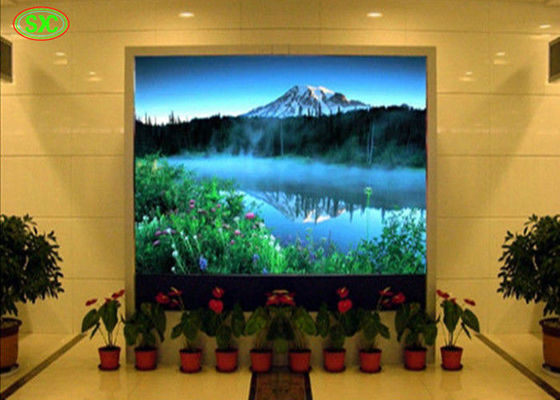

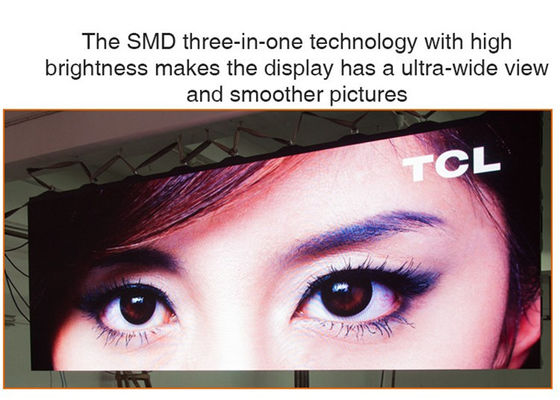

| Product Name | HD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel with 160000dots/sqm |
| Service | Your inquiry will be reply within 12 hours. |
| Brand | SCX |
| Material | Stainless, aluminum ,steel, epoxide resin,PE |
| Item |
Indoor P2.5,P3,P4,P5,P6,P7.62 OutdoorP6,P8,P10,P12,P16,P20 |
| Feature | High brightness, good resolution, working stable , easy installation. |
| Grade | IP43-IP65 |
| Driving mode | constant driving current |
| Stock | Regular items of led display have stocks. |
| Color temperature | 6500-9500K |
| Packing Method | Flight case &Plywood case or Customized Packing |
| Power supply request | AC85-264V(50HZ-60HZ) |
| Payment Term | T/T, Western Union |
| Delivery Time | Within 7-30 days according to your required size & quantity. |
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi, and etc. |
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
