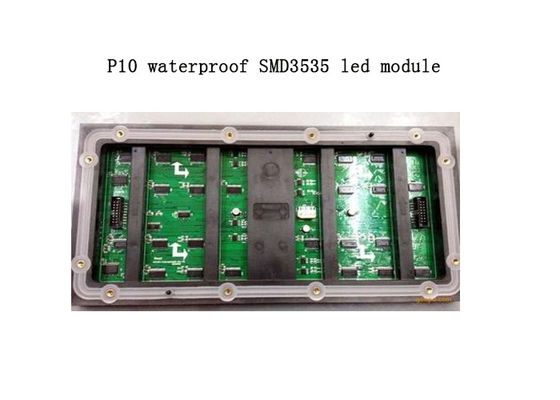

Waterproof P10 SMD 1R1G1B LED Display Module Size 320*160mm 1/4 Scanning

1,  Item Name

waterproof P10 SMD 1R1G1B LED Display Module size 320*160mm 1/4 scanning

2,  pixel tube:

   pixel pitch:10mm;  primary colors: pure red+pure green+pure blue ,
   color composing: 1R1G1B
   Density:3906dots/sq m;  smd3535

3 , unit box

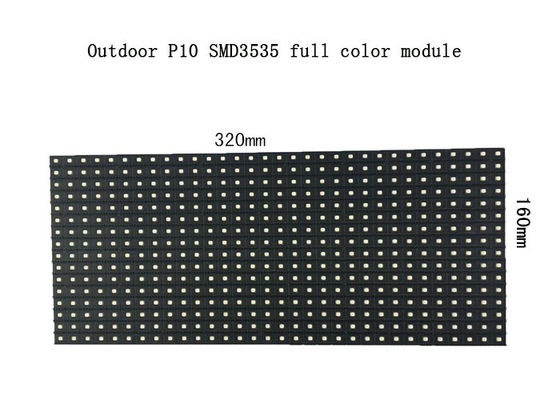

  module size:320mm×160mm;  Module resolution:32X16
  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024


5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m
  max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: 1/4 scanning
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768
