1/8 Scan Smd P3.91 Indoor Full Color Led Display Advertising Rental

Brand Name:	SCX
Model Number:	indoor p3.91
MOQ:	8sqm
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	3600 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen,China

Certification:

CE,CB,IEICC,FC

Brightness:

≥1200cd/㎡

Control System:

Synchronization

Display Type:

Indoor Full Color LED Display

Gray Scale:

16bit

Scan Mode:

1/8 Scan

Viewing Angle:

Horizontal 140°/Vertical 140°

Packaging Details:

wooden case，flight case

Highlight:

1/8scan indoor full color led display

CE indoor full color led display

1/8scan indoor full color led screen

Product Description

Item				Specifications
Modle				p3.91
Module size				250*250mm
Module resolution				64*64 dots
Cabinet size				500*500mm
Cabinet resolution				128*128 dots
Cabinet weight				8kg
Colour grayscale				32 bit
Gray scale per colour				4096-65535
Refresh rate				3840 HZ
Driving type				1/16Scan
Signal transmission distance				Cats cable: <100m single mode fiber: < 10km
Brightness				>1200
Optimal horizontal viewing angle				180°
Optimal vertical viewing angle				180°
AC input voltage				AC 90-240 V
AC input frequency				50/60 HZ
AC input power typical value				250w/sqm
Storage temperature				From -25C° to 65C°
Work temperature				From -20C° to 50C°
IP rating				IP42 front/rear
Storage humidity				10%-90% non -condensation RH
Working humidity				10%-90% non -condensation RH
Video Signal Source				Cable TV, DVD, VCD, PC, rgbhv, YUV, YC, composite, video
Playback Mode				An alternate or arbitrary combination of video, animation, text information, etc
Image Regulation				White Balance/contrast/visual correction/backlight regulation/single module tuning brightness
Image Switching				VGA synchronous with the frame
Blind spot rate				<0.0001 (like a meta-failure rate/discrete state)
Signal processing capability				Not less than 10 bit
Lifetime Typical value				100,000 Hr

Led moduleUse kinglight led chip smd 2121 , MBI ic or 2038S ic , high refresh 3840hz , module size 250*250 mm, the resolution is 64*64 =4096 dots

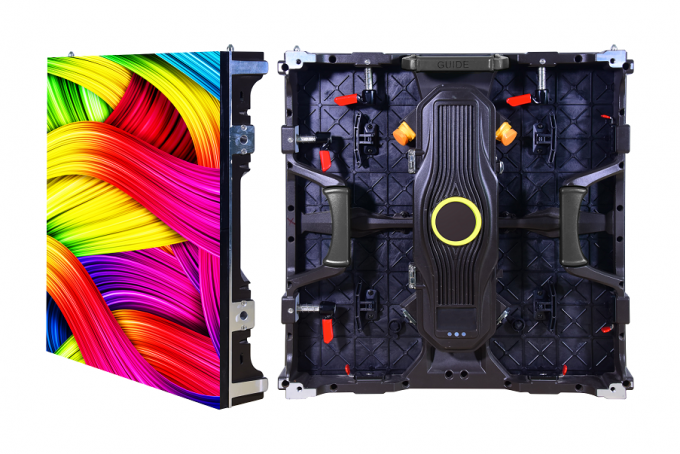

Led cabinetDie casting aluminum cabinet , thin and light, we have 500*500mm and 500*1000mm both size .

How to install and control the led display

Control methods

Through computer, wifi, 4G, usb, remote, internet, mobile, ipad, etc?Yes, you can control in your convenient management.

Many screens together?

Without problem, your laptop can manage all of them whenever and wherever.

Production Application

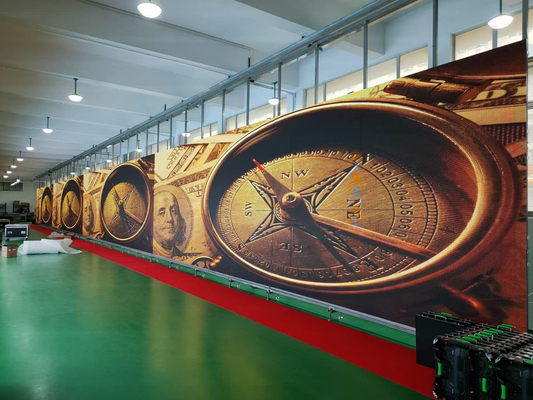

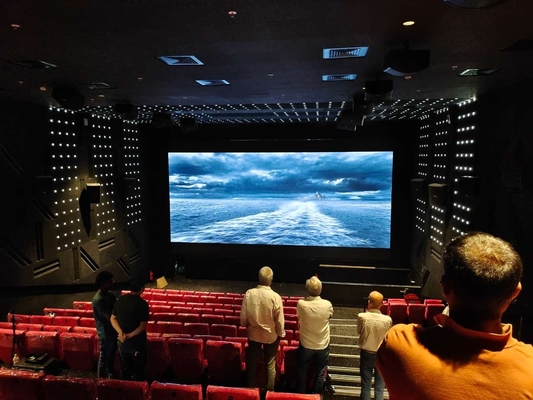

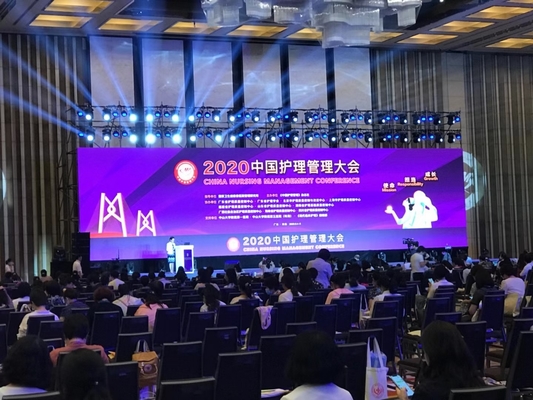

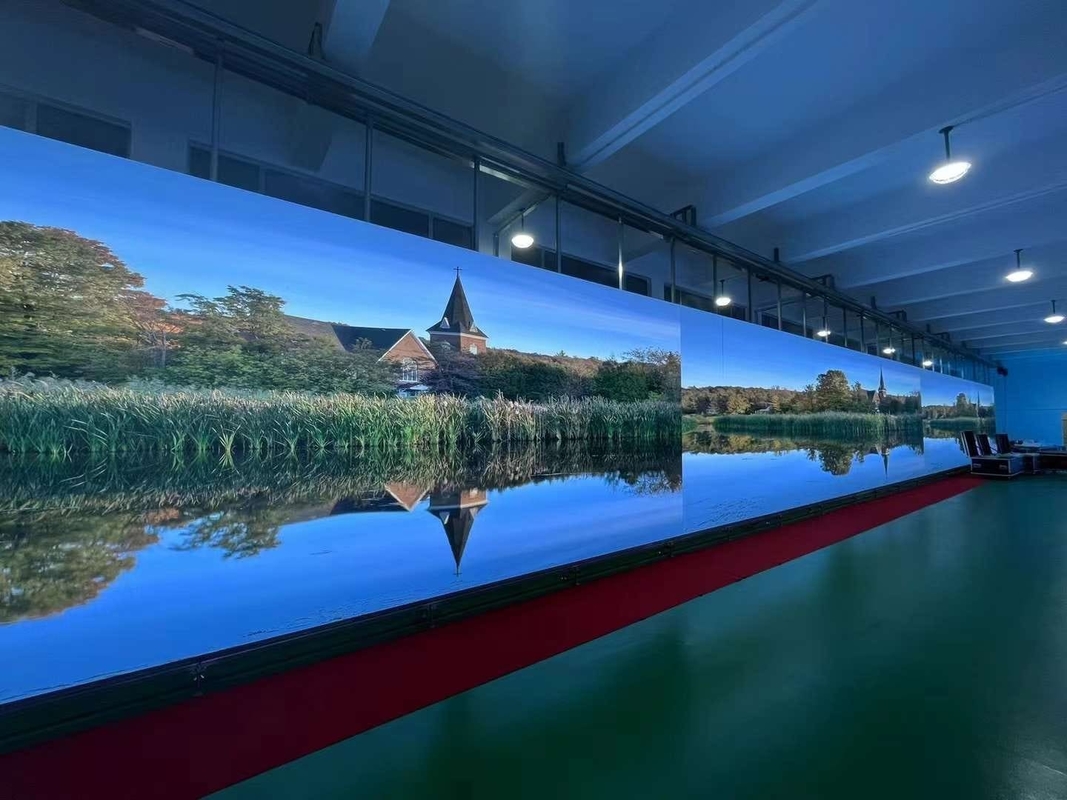

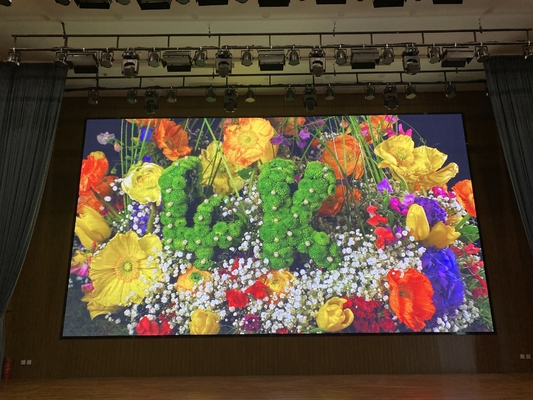

Rental led screen is widely used in advertising leasing, video conference, product release,stage background, wedding celebration and so on , it use die-casting aluminum, hoisting, stowage,back frame fixed installation requirements. ,it has high refresh and gray-scale ,high contrast ,high quality fine picture.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.The flight case we have several color can choose , black , red , yellow .Flight case size 89*59*74 cm , 8 pieces cabinets in one flight case , one flight case 30 kg.
