GOB Thin P7.62 3 in 1 SMD LED Screen , 1/8 scanning high resolution led display 244mm x122mm

Brand Name:	SCXK
Model Number:	inSMDP7.62-F8
MOQ:	negotiation
Price:	negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/ISO/UL

Product Name:

P7.62 SMD 3 In 1 Indoor Full Color LED Display 1/8 Scanning 244mmx122mm

Usage:

Indoor

Pixels:

7.62mm

Led Type:

SMD3528

Tube Chip Color:

Full Color

Display Function:

Video

Waterproof:

IP30

Cabinet:

Steel Or Aluminum For Options

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

smd led display

outdoor smd led display

Product Description

Thin P7.62 3 in 1 SMD LED Screen , 1/8 scanning high resolution led display 244mm x122mm

♦ Quick Detail

1. Super lighter and thinner; 

2. Easy to connection and uninstall; 

3. It can display,words,texts,graphics and videos.

4. High resolution and high frequency dynamic image.

♦ Applications

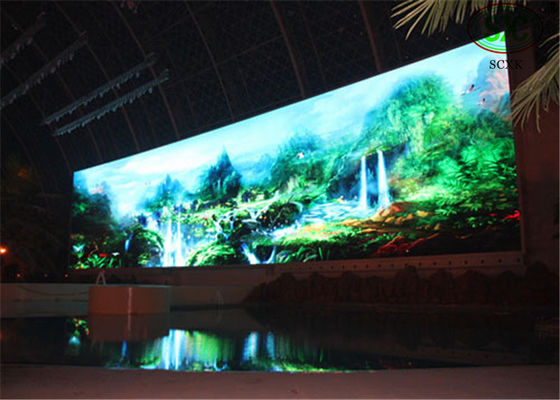

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.

♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

♦ Product specification

indoor SMD P7.62

Lamp size

3528

Resolution/mm

7.62

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

17222/m²

Module resolution

32x16

Module size/mm

244x122

View distance

≥7m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>2000cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

120(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/16

Frame rate

60Hz

Refresh frequency

>1200Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<370W

Average power:/㎡

<200W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluin
