P10 SMD3535 Outdoor LED Advertising Screen 10mm Pitch IP67 Waterproof

Brand Name:	SCXK
Model Number:	P10
MOQ:	5sqm
Price:	negotiation
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels Pitch:

10mm

LED Chip:

Epistar, Kinglight

Cabinet Material:

Iron Or Die-casting Aluminum For Option

Cabinet Size:

960mm*960mm

Working Voltage:

DC5V

Warranty:

3 ~5 Years

Pixel Density:

10000dots/sqm

Certificates:

CE,RoHs,FCC,ISO

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

Die-casting Aluminum LED Advertising Billboards

Iron LED Advertising Billboards

P10 SMD3535 LED Advertising Billboards

Product Description

Highway and Street Full Color P10 SMD3535 LED Advertising Billboards

Product Specifications

Attribute	Value
Pixels pitch	10mm
LED chip	Epistar, kinglight
Cabinet material	Iron or Die-casting Aluminum for option
Cabinet size	960mm*960mm
Working voltage	DC5V
Warranty	3 ~5 years
Pixel density	10000dots/sqm
Certificates	CE,RoHs,FCC,ISO

Product Overview

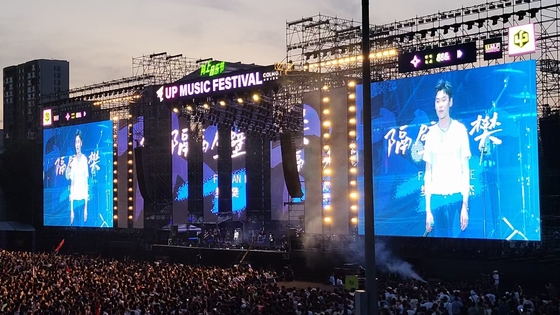

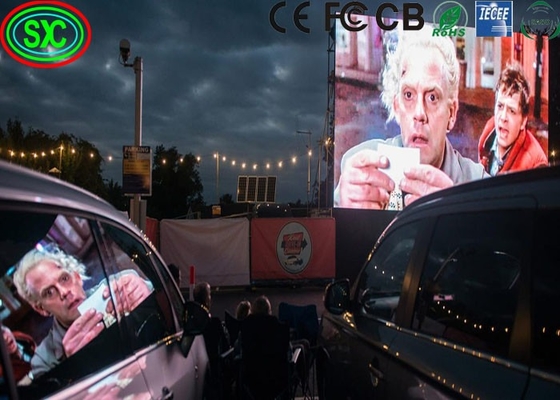

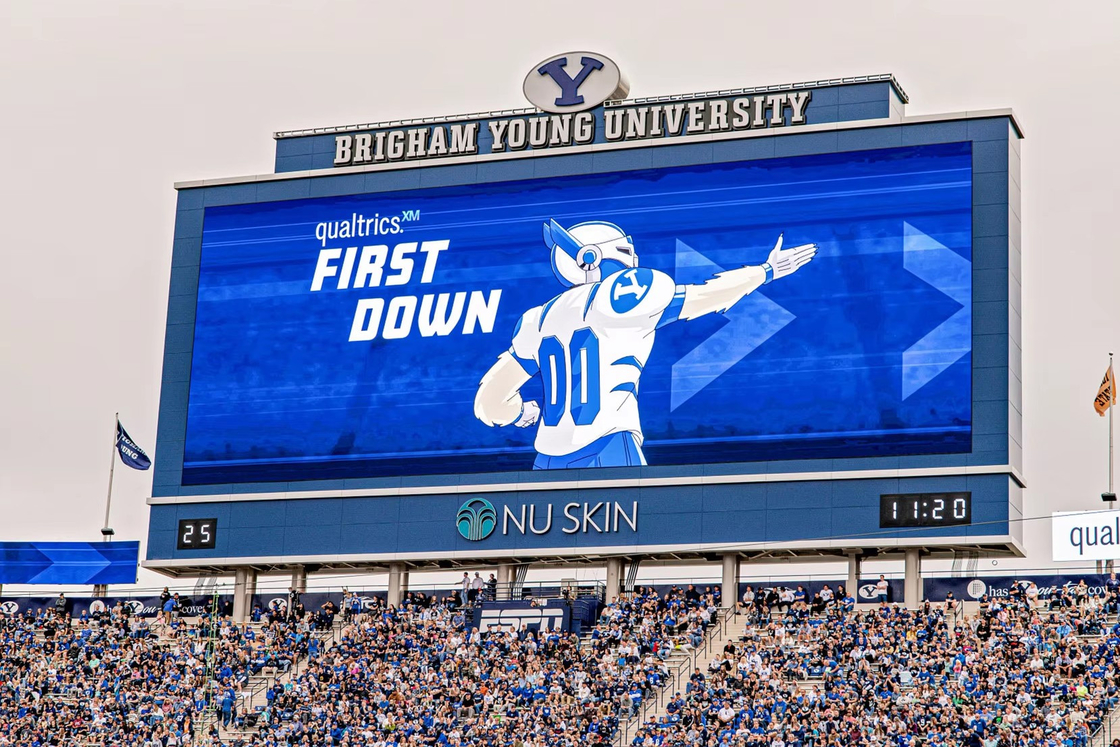

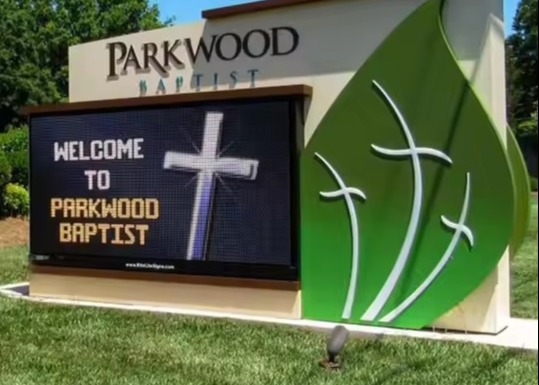

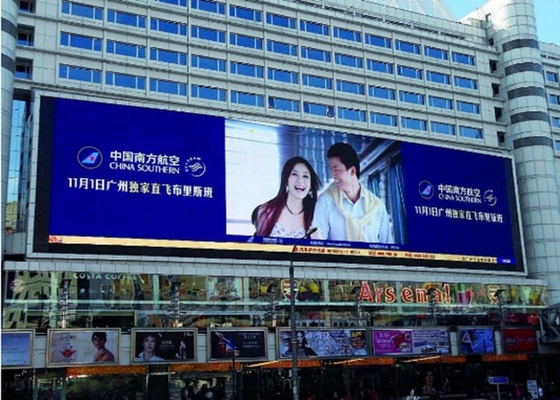

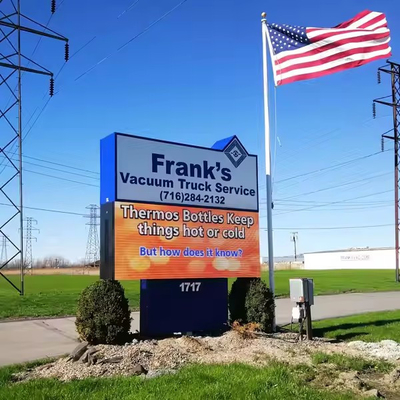

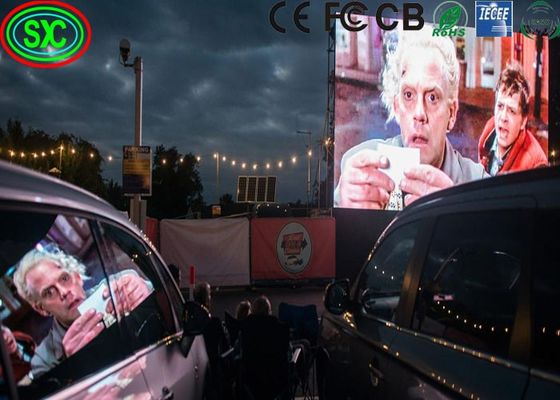

The P10 Outdoor LED Display is engineered for superior performance in highway and street advertising applications. Featuring high brightness and excellent picture quality, this display is ideal for outdoor environments including stages, banks, stations, stadiums, and public spaces.

Key Features

High brightness with adjustable settings to meet varying environmental requirements
Excellent lighting consistency with no mosaic effect
Virtual pixel technology for superior text, graphic, and video display
Wide viewing angles: 160° horizontal and 140° vertical
Modular design allows individual LED repair, reducing maintenance costs
Advanced heat dissipation system
Environmentally friendly construction
High refresh rate (1000Hz) for smooth video playback

Technical Specifications

Module Specification

Color type	Real full color
Module size	320*160mm
Pixel LED	SMD3528
Resolution rate	32*16
Driving IC	MBI5024
Working voltage	DC5V
Power	100W
Working temperature	-30°C - +50°C

Screen Specification

Material	Iron/Steel
Color	Black
Size	960*960mm
Resolution rate	64*48
Module quantity	4*6
Density	10000dots/m2
White balance luminance	≥6500cd/m2
Color temperature	6500
Horizontal view angle	110°
Vertical view angle	50°
Protection grade	Before/after: IP67/IP43
Non-Flatness	1mm
Module interval	1mm
Weight	35kg
Maximal power/m2	600W
Frame frequency	≥60Hz/s
Refresh frequency	≥300Hz/s
Gray grade	16777216
Luminance adjustment	256 grade by hand & 8 grade by auto-optic/color
Input signal	RF, S-video, RGB, RGBHV, YUV, YC & Composition, etc
Control system	PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmission (Optional)
MTBF	>5000h
Life-span	>100000h
Speckles rate	<0.0002

Control System

Certifications

Our Mission

To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.

Why Choose Us?

Packing & Shipping

Packing options: wooden case or flight case available

Shipping methods: by air, sea, train, or DHL - you choose the best option for your needs
