IP65 Outdoor Full Color Waterproof 10mm Truck LED Display SMD 3535

Brand Name:	SCXK
Model Number:	P10
MOQ:	2 sqm
Price:	negotiation
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

10mm

Led Type:

SMD 3535

Display Function:

Video

Waterproof:

IP65

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Transmiiting Distance:

Internet Cable <100m

Refresh Rate:

>=1920HZ

Maximum Power:

600m2

Module:

320*160mm

Cabinet Size:

960*960mm

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

Product Description

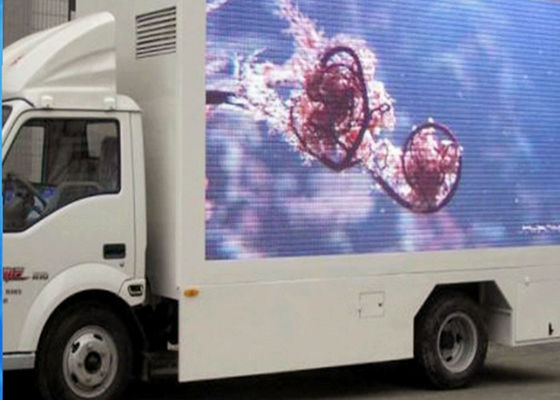

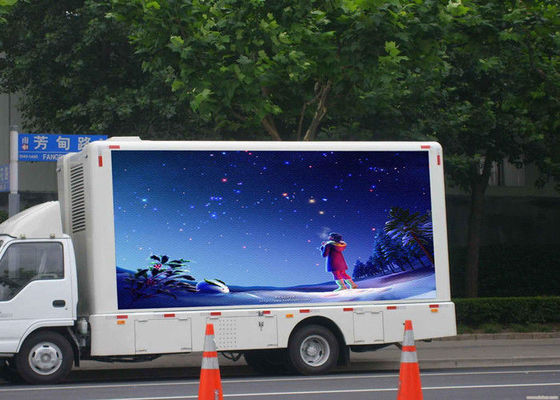

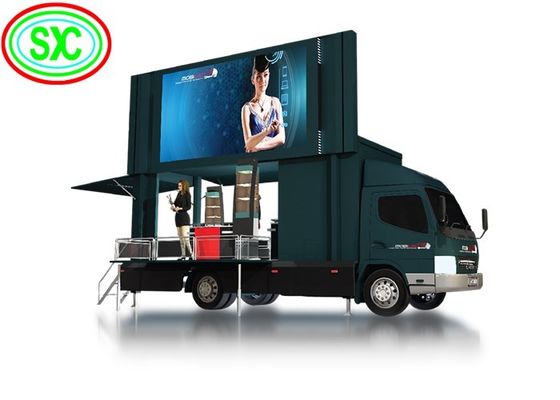

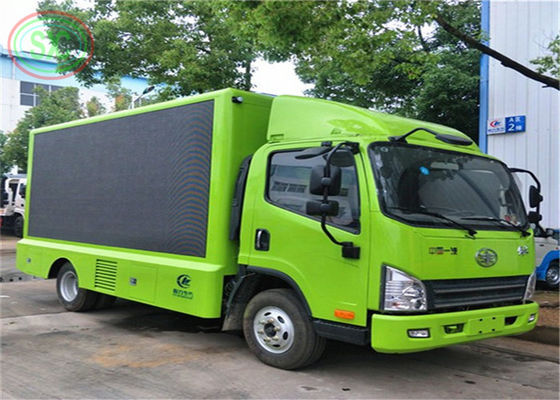

IP65 Video Digital Truck Mounted LED Display Full Color 10mm Pixel Pitch

Product Specifications

Product Features

LED Screen: Uses imported EPISTAR chips with high illumination, long lifespan, high refresh frequency, and easy maintenance
Generator Set: Specially designed for this model with lower noise and stable operation
Lifting System: Uses electric puts with synchronization error of only 1mm
Vehicle Air-Conditioner: Cools LED screen, generator, and carriage while providing comfortable environment for staff
Multi-Media Control System: Integrated control cabinet with industrial computer, amplifier, and operation buttons

Applications

Technical Specifications

Model	Outdoor SMD P10
Resolution	10mm
Pixel Configuration	1R1G1B
Pixel Density	10000 pixels/m²
Module Resolution	32*16
Module Size	320*160mm
View Distance	12-300m
White Balance Brightness	>8000cd/㎡
Color Temperature	6500K-9500K
Viewing Angles	120° horizontal, 60° vertical
Frame Rate	60Hz
Refresh Frequency	3000Hz
Working Temperature	-20°C to +50°C
Maximum Power	<800W/m²
Average Power	<300W/m²
Warranty	2 years quality warranty, 10 years spare parts support
