Portable Video Wall Dance Floors Panels for Disco Wedding Party Led Screen
Product Specifications
| Attribute | Value |
| Pixels | 4.81mm |
| Tube Chip Color | Full color |
| Led Type | SMD3535 |
| Display Function | Video/Text/Image |
| Cabinet | Iron or Aluminum For Options |
| Optimum viewing angel | H:160°,V:140° |
| Power supply | AC100-260V±10%/50Hz,60Hz |
| Regular cabinet size | 500mmx500mm |
| Module size | 250mmx250mm |
| Warranty time | 3 years |
| IC | MBI 5024 IC |
| Pixel density | 43222dots/㎡ |
| Chip brand | Epistar led |
Product Overview

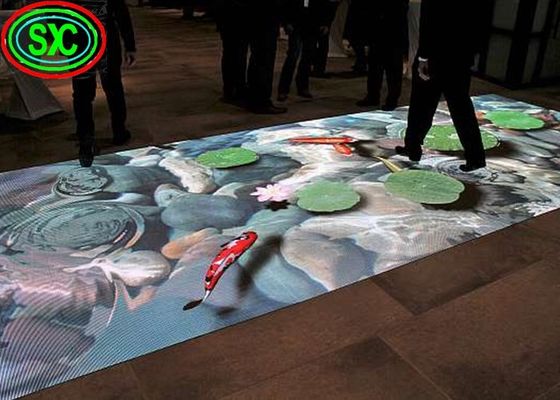

LED tile screen is a specialized LED display designed for ground installation, featuring enhanced load-bearing capacity, protective properties, and thermal performance to withstand high-intensity foot traffic while maintaining normal operation.
Applications

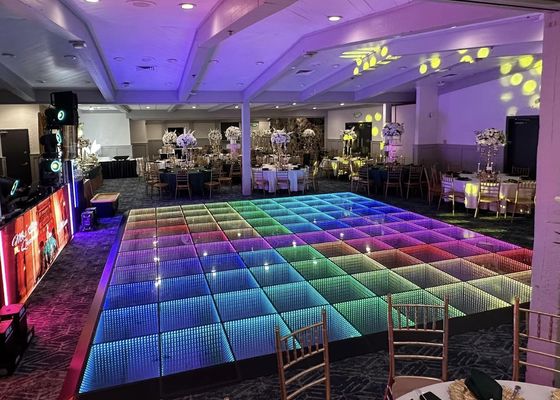

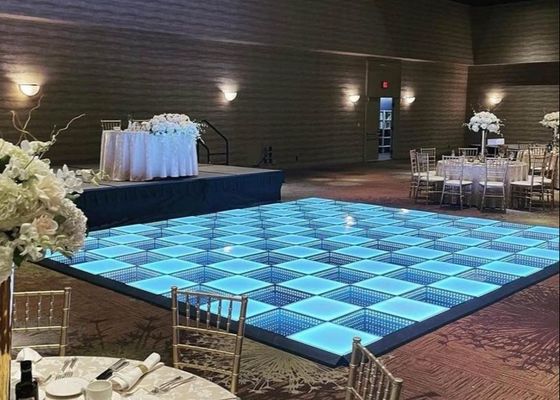

Ideal for stages, concerts, performances, bars, discos, shopping malls, and other entertainment venues.
Key Features
- Quick and flexible installation: No tools required for direct or rail installation
- High load-bearing performance: Aluminum alloy structure supports up to 1.5 tons per square meter
- Excellent maintenance: Modules can be exchanged without removing adjacent boxes
- High contrast design: Mask technology ensures clear playback
- Outstanding low light performance: Uniform grayscale with excellent consistency
Technical Specifications
| LED Specifications |
| Type | SMD |
| LED Standard | Real Pixel(1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| Module Specifications |
| Pixel Pitch | 4.81mm |
| Resolution | 52x52dots |
| Module size | 250x250mm |
| Cabinet Specifications |

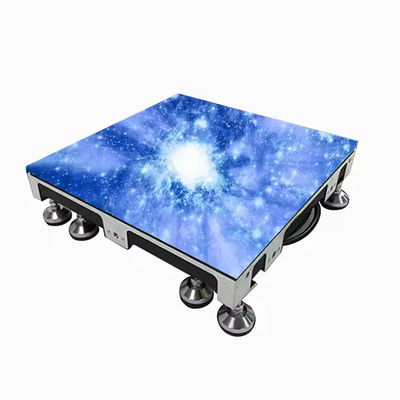

| Cabinet Size(W*H) | 500x500mm |
| Cabinet Resolution | 104x104dots |
| Pixel Density | 43222dots/㎡ |
| Cabinet Weight | ≤6.5kg |
| Material | Die casting aluminum |
| Flatness of cabinet | ≤0.3mm |
| Screen Parameters |
| Color/Brightness Calibration | Yes |
| Color Temperature(K) | 3000-10000 |
| Light Centre Distance Deviation | ＜3% |
| Brightness Uniformity | ≥97% |
| Color Uniformity | Within ±0.003C×,Cy |
| Contrast Ratio | 5000:1 |
| View Angle | Horizontal160°/Vertical140° |
| Input Voltage | AC100~240V(50-60Hz) |
| Power Consumption | Max:800w/㎡ Avg:280w/㎡ |
| Driving Method | 13 scanning |
| Protection Level | IP65 waterproof |
| Grey Scale Levels | R(256) G(256) B(256) |
| Life Span | 100,000 Hrs |
| Temperature-Operating | -20 -- 40℃ |
| Humidity-Operating | 10 - 99% |
| Features | Anti-slip, anti-collision, big load-bearing capacity |

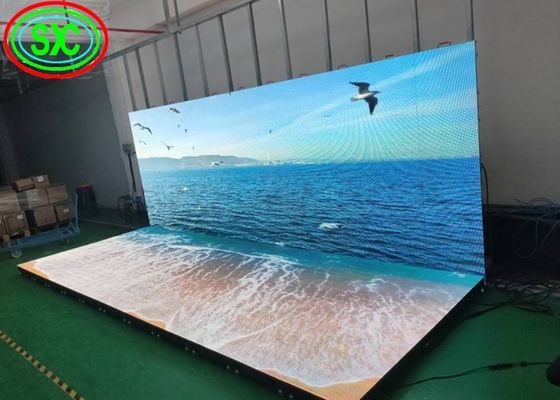

| Usage | LED floors, LED wall background |
| Display function | Txt, picture, video |
Manufacturing Process
- Select load-bearing, high transmittance PVC mask and bottom shell
- SMT high-speed SMD technology packages 3528 lamp beads on PCB board
- Lock mask pan and module with stainless steel screws
- Use professional standard box to lock module with stainless steel screws
- Connect boxes using pure copper wire and aviation plug
- Join cabinets with high load-bearing tokens as required
- Connect screen to computer using synchronization control software for debugging
- Wrap screen body with stainless steel
Product Selection
Multiple options available for your screen. Welcome to visit our factory.
Outdoor series: P3.91, P4, P4.81, P5, P5.95, P6, P6.67, P8 (SMD) and P10, P12, P16, P20, P25 (DIP) full color LED modules/displays.
Indoor series: P2, P2.5, P3, P3.91, P4, P5, P6, P10 (SMD) indoor full color LED modules/displays.
Packaging & Shipping
Available in wooden case or flight case packaging. Shipping options include sea, air, or DHL.
Buying Guide
For a customized solution, please provide:
- Desired effect (star or video)
- Dimensions (Width and Height)
- Installation location (photos preferred)
- Intended purpose
After-Sale Service
- 3-year warranty with lifetime free maintenance
- 24-hour complaint response; 48-hour solution provision
- Customer satisfaction tracking
- Free technician training
- Comprehensive documentation including installation guides and software manuals
- Special services for large projects (stadiums, exhibitions, etc.)
