P6.67mm Outdoor Waterproof LED Advertising Screen IP65 SMD 3535

Name: P6.67mm Outdoor Waterproof LED Advertising Screen IP65 SMD 3535
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P6.67
Price: 10000 USD
Availability: InStock

Brand Name:	SCXK
Model Number:	P6.67
MOQ:	3 pcs
Price:	negotiation
Payment Terms:	Western Union,MoneyGram,D/P,T/T
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL/CB

Pixels:

6.67mm

Tube Chip Color:

Full Color

Led Type:

SMD 3535

Display Function:

Video

Waterproof:

IP65

Cabinet:

Iron/die Casting Aluminum

MBI:

5124

Viewing Angle:

H:100 V:50

Optimal Viewing Distance:

>=4m

Voltage:

DC5V

Brightness:

More Than 5000cd/㎡

LED Parameter:

R:625-630nm

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

Outdoor Waterproof Fixed Led Screen

2x3m Fixed Led Screen

P6.67 Fixed Led Screen

Product Description

P6.67 Fixed LED Screen Outdoor Waterproof Digital Advertising Billboard 2x3m

Product Specifications

Attribute	Value
Pixels	6.67mm
Tube Chip Color	Full color
LED Type	SMD 3535
Display Function	Video
Waterproof	IP65
Cabinet	Iron/die casting aluminum
MBI	5124
Viewing Angle	H:100° V:50°
Optimal Viewing Distance	≥4m
Voltage	DC5V
Brightness	More than 5000cd/㎡
LED Parameter	R:625-630nm

Product Features

Front or rear maintenance option: Module, power supply and receiving card can be maintained from front or rear, saving maintenance costs.
Energy Saving ≥50%: Uses high brightness with low power consumption LED lamps, with 28 patented techniques for maximum efficiency.
Excellent Display Quality: Broadcast-level color scale with adjustable color temperature and brightness, smooth colors and high contrast ratio.
IP65 Waterproof: Meets outdoor naked installation requirements with fast installation and maintenance capabilities.
Robust Construction: Dark black surface, firm and flat design with anti-UV module parts for long-term durability.

Module Specifications

Item	Specification Parameter
Pixel Pitch, Resolution, Size	6.67mm, 4848 Dots, 320320*30mm
Pixel Color, Pixel LED	1R1G1B, SMD2727
Working Voltage, Module Power	DC5V, 71.5W
Driving Method	1/6

Cabinet Specifications

Item	Specification Parameter
Material, Cabinet Weight	Iron, 50kg/Cabinet
Resolution, Size, Module Quantity	4848 Dots, 960960150mm, 33
Density	22498
White Balance, Color Temperature	5000~5500CD, 8500K
View Angle, Non-Flatness, Module Interval	H:120°; V:120°, <0.4mm, <0.4mm
Maximal Power, Average Power	700W, 230W
Working Temperature, Protection Grade	-20℃ - +50℃, Front/Back: IP65/IP54
Frame Frequency, Refresh Frequency, Gray Grade	60Hz, 19200Hz, 14bit

Applications

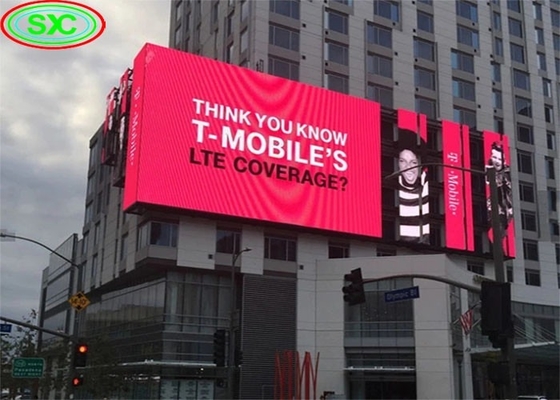

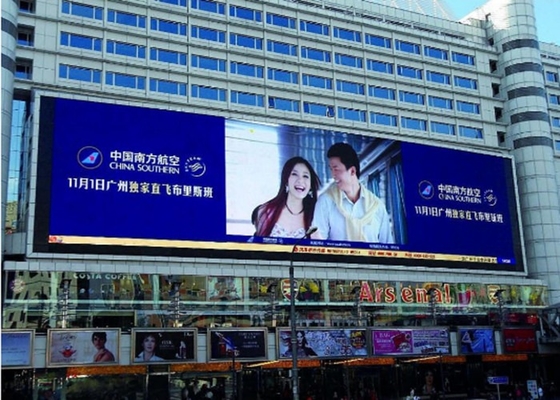

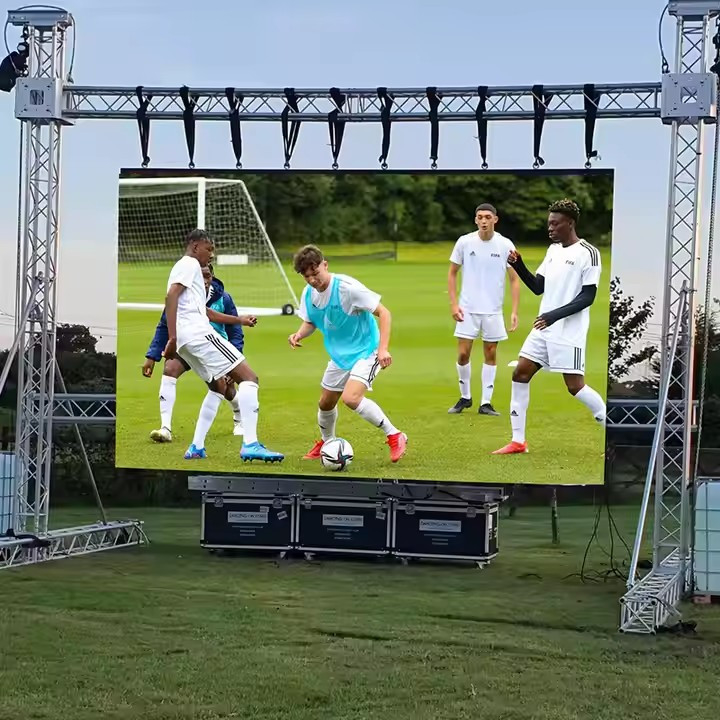

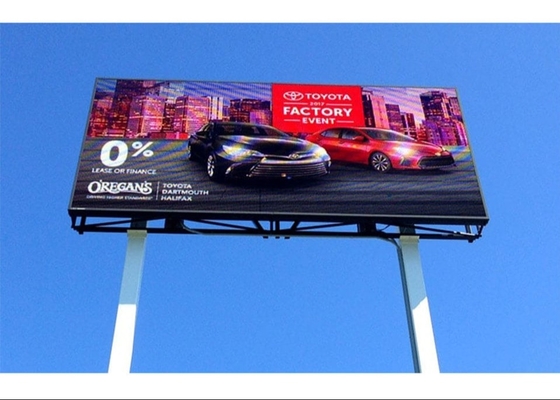

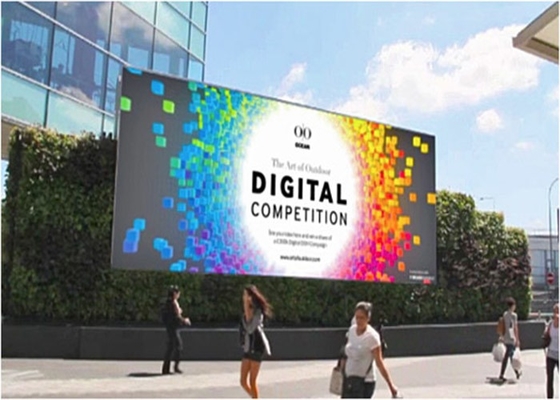

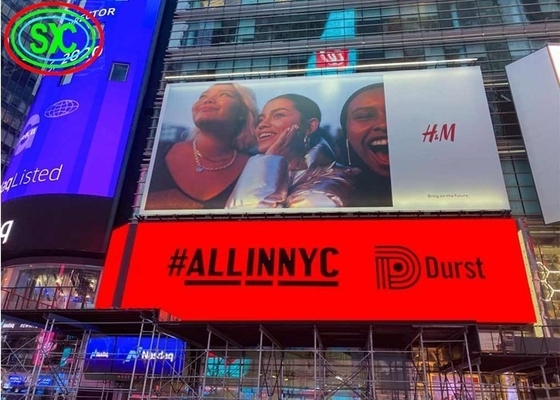

Ideal for outdoor advertisement media, government & enterprise projects, culture & tourism, sports, propaganda imaging, and commercial real estate.

Packaging & Shipping

Packaging: Anti-shaking wooden case

Free Training: 3 days on-site technical training at our Shenzhen factory or remote training via TeamViewer/Skype, including comprehensive user manual.

Installation Service

Check bracket and frame conformity with technical requirements
Instruct technicians in LED module installation and connection
Test and adjust entire panel, examine and repair defective devices
Train buyer's technicians

On-site installation service available at $100/day plus technician's living and travel expenses.

Trade Terms

Hardware: LED display and video controlling system
Technical Material: English version user manual, installation manual and maintenance manual
Service: 7 years free technical support by phone and email
Delivery: Approximately 3-12 working days
Transportation: By sea, air or express
