Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD600-1200 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pixel: | 8mm | Pixel Configuration: | Red Green Blue |
|---|---|---|---|
| Scanning Mode: | 1/4 Scanning Mode | Module Size: | 256x128mm |
| HS Code: | 8528591090 | Application: | Airport,wall,church Wedding,exhibition Stand |
| Driver IC: | MB5024/MB5124 | Warranty: | 2-3 Years |
| Cabinet Size: | 1024x768mm/512x512mm |
Lowest Price P8 Outdoor SMD RGB Full Color LED Display Module 256mmx128mm 1/4 Scan
Introduction:
Our Advantages:
1. Perfect display effect
----- High brightness, high refresh rate, large viewing angle, clear display effect, easy-to-use control system; aluminum alloy material, can be used for both fixed installation and hanging rental.
2. Attractive factory price
----- We are a professional manufacturer with our own factory and production line. Our price is more competitive and the quality is more reliable.
3. Technical training
----- 1. We provide free technical training, including operation training and maintenance training in the factory.
----- 2. We will send engineers to your country through negotiation.
4. CAD drawing and installation
----- 1. We provide free CAD drawings and some other expert suggestions on how to install the display.
----- 2. After negotiation, we will send engineers to your side if the need arises.
5. Warranty policy
----- 1. All products and accessories are tested before shipment.
----- 2. All products are under warranty for 1 to 3 years.
6. Good after-sales service
----- We provide free technical guidance. We have a professional service team; all questions about our products will be answered within 24 hours.
| outdoor SMD P8 | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/m² | ||||
| Module resolution | 32x16 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

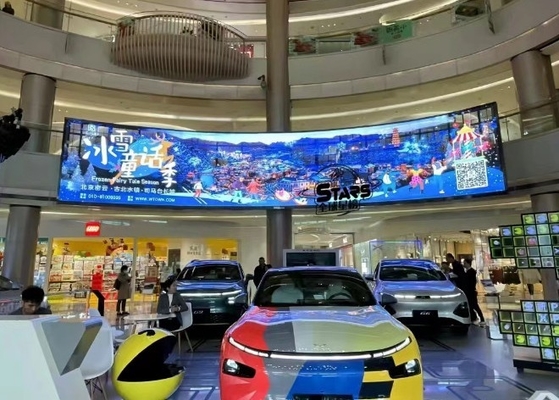

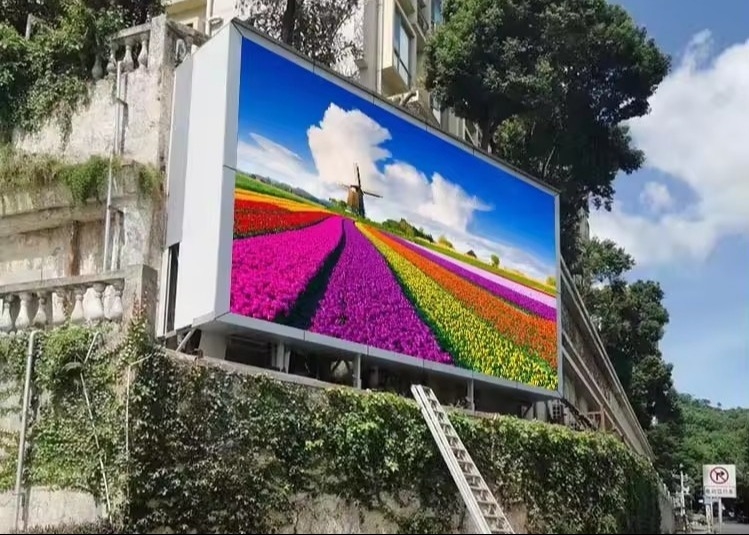

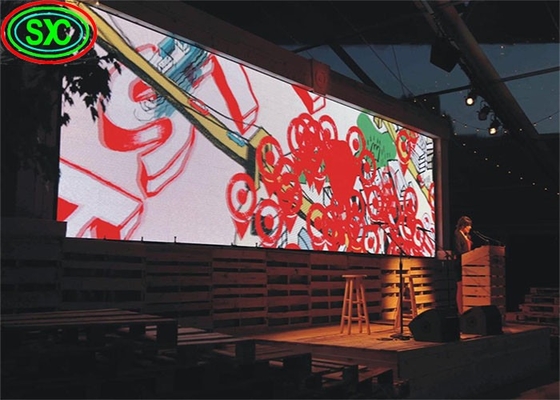

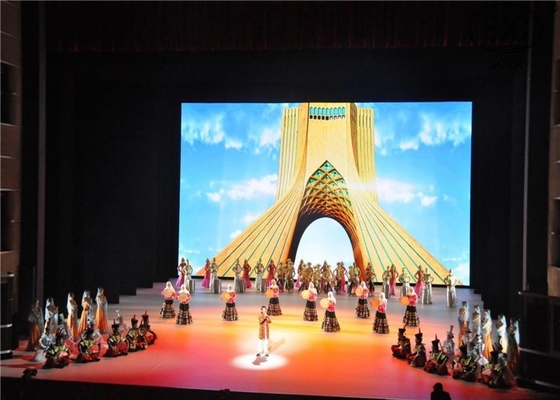

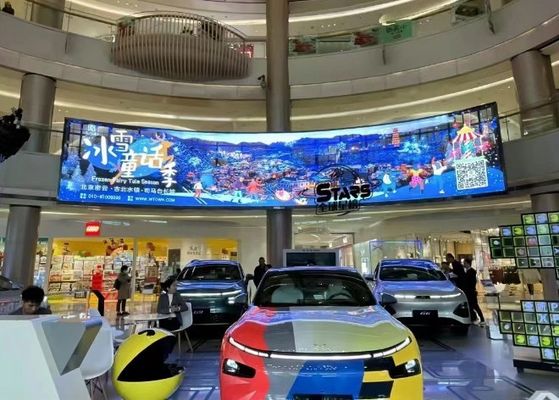

The application of the P8 led display :
Plaza,bank,shopping ceater,hotel,office,public service places ect.
RFQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
