Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mianland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P2 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000sqs/month |
| Brand Name: | RGB LED Display | Brightness: | ≥1200cd/sq |
|---|---|---|---|
| Certifications: | CE,RoHS,FCC,CCC,SAA,TUV,UL | LED Chip: | Epistar |
| Waterproof: | IP34 | Operation Power: | 220V 60HZ |
| Module Size: | 256*128mm | Cabinet Size: | 512*512mm |
| Control System: | LSN | Pixel Density: | 250000dots/sq |
| Resolution: | 128*64 | Scan Mode: | 1/32 |
| LED Type: | SMD2121 | Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10... |

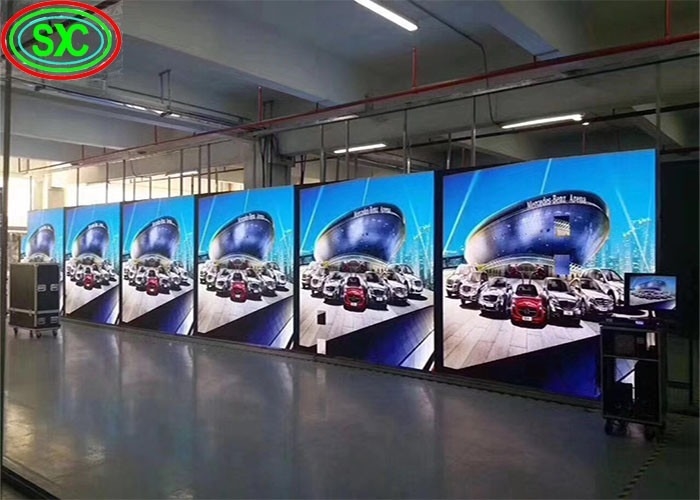

Indoor Full Color LED Display P2 SMD High Resolution 256*128mm Module 1/32 Scan Ip34
Specifications :
| Indoor P2 LED Display | |||||
| Resolution/mm | 2 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 250000/square meter | ||||
| Module resolution | 128x64 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Pre-sale service
1) Displaying video motion pictures in high definition
With 4,096 steps of brightness control for each RED, GREEN and BLUE color,
our system is designed to provide pictures quality similar to that of analog formula, without losing image data.
2) Displaying multi(natural) colors
With 4,096 color grades of each RED, GREEN and BLUE color, our system is designed to
display multi-colors amounting 68.7 billion on the screen.
3) Windows based operating software
Our system is designed to be operated with MS Windows.
4) Providing delicate brightness adjustment
Our system is designed to provide delicate brightness adjustment(by each 0.025% steps)
5) Providing automatic brightness adjustment
Our system is designed to provide automatic brightness adjustment according to
the change of ambiance brightness.
6) Screen size adjustment
Our system is designed to adjust screen size not only to the standard ratio of 4 : 3 or 16 : 9
but also specific size as you want to use
After service
Service 1: if the signs have any problems in 2 years, just take the photos show us, we will send the new items
to you free in 10 days. and we pay the freight.
Service 2 :if you are satisfied with our products and place your second/third/.....order from us , more discounts are waiting for you.
FAQ
1) Q: Are you a factory or trading company?
A:We are a company with our own factory,can accept OEM/ODM .
2) Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,Western Union.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is two whole years after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.
