Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| Price: | 470-600 USD/sqm |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving the down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 sqms/month |
| Brand Name: | SCX | Color: | Full Color |
|---|---|---|---|
| Module Size: | 320*160mm | Waterproof: | IP43 |
| Pixel Density: | 160000dots/sqm | Brightness: | ≥1500cd/sq |
| Indoor Options: | P1.667,P2,P2.5,P3,P3.91,P4,P4.81,P5,P6,P10 | Certifications: | CE,FCC,ISO,UL |

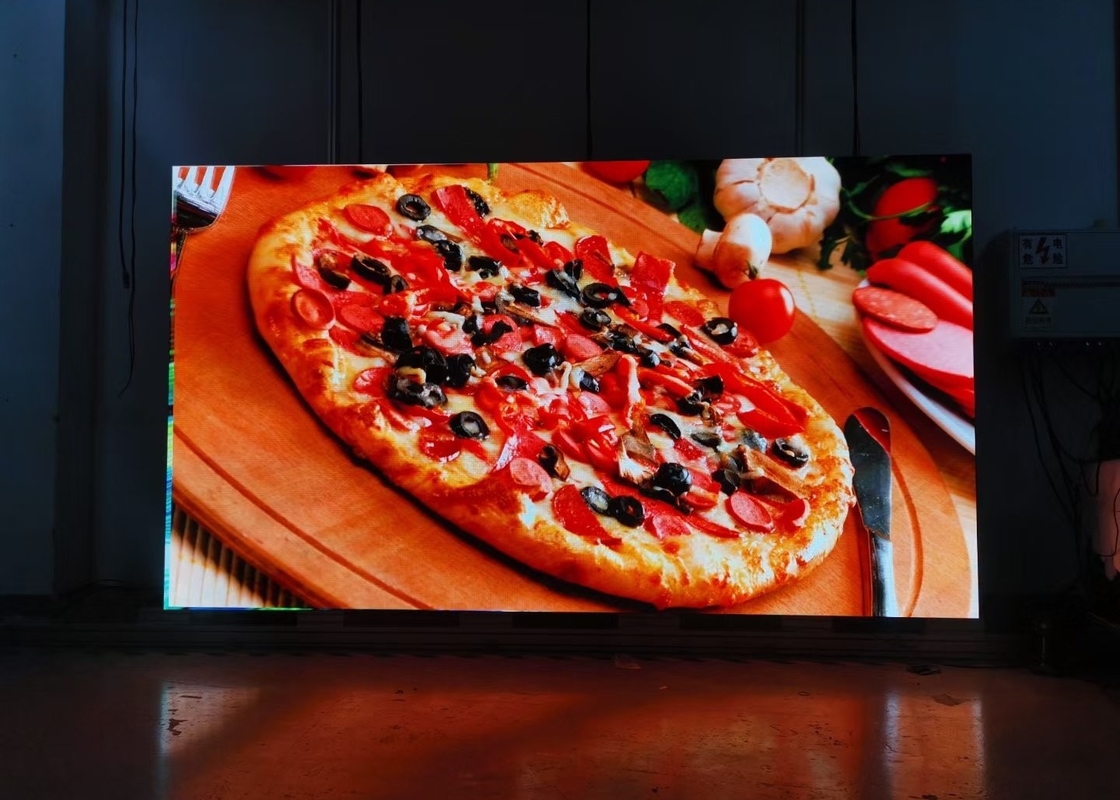

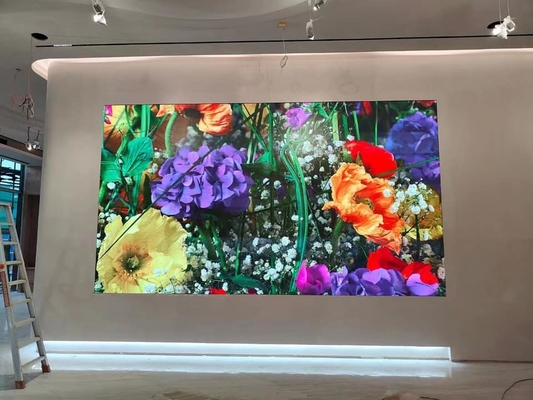

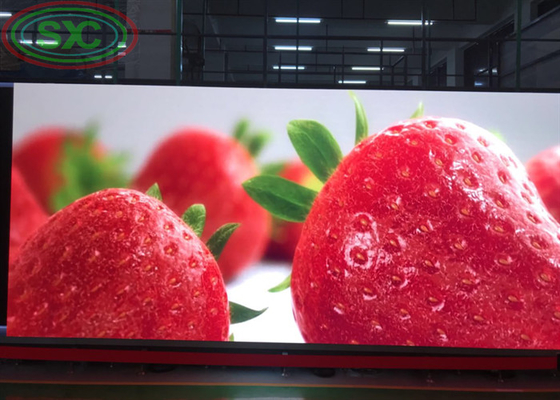

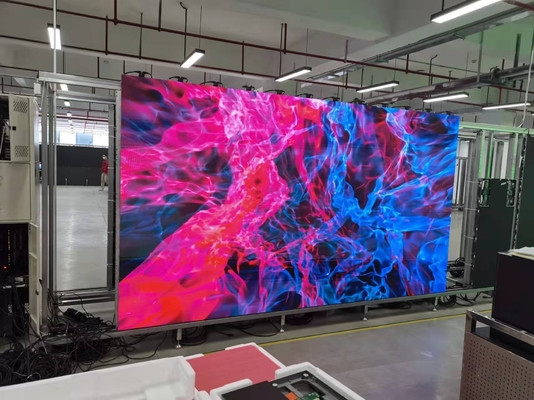

HD Full Color Stage LED Screen Indoor and Outdoor High Resolution P5
1.What we do?
SCXK has been specialized in LED field since 2005. We are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.
We have a professional team and a series of equipments.Every year our products exported overseas and are popular among many foreign countries,also in our own country you can find the many application places.Such as station,airport,church,shopping mall,commercial centure,concert and so on.
From statium to TV station,conference&events,SCXK Electronics provide a wide range of eye-catching and energy saving LED screen solutions to industrial,commercial and governmental markets worldwide.
2.Indoor LED Display series :
Indoor LED displays use high-quality LEDs with high luminous efficiency, low brightness attenuation, high stability and reliability. Super uniform colors. Low cost, high pixel density, more vivid and stable pictures (no flicker). The indoor full-color LED display has an ultra-thin and ultra-light structure, which increases design opportunities and reduces shipping costs. SMD technology brings ultra-wide viewing angles to LED displays; better color performance, higher contrast and higher refresh rates. Ultra-thin rental indoor LED displays are lightweight, and a special hoisting system simplifies service, easy installation, simple configuration and maintenance, and several other enhancements that are unmatched in the industry.
3.Specifications of product:
| HD Full Color Stage LED Screen P5 | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64x32mm | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 5-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1800cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | alternating driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode |
Asynchronous,3G,4G,Wifi |
||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Aging hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP43 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
3.The process of the order:
We are an indoor and outdoor LED display factory with nearly 5 years of professional experience. If you are interested in our products, we will try our best to cooperate with you. First, you can tell us the module size, then our engineers will analyze and do several projects for you to choose according to your requirements, each project has its own advantages and disadvantages, all details including prices are for your reference only, then you can decide to choose the most suitable project for your situation. Once you confirm the order, you will pay us a 30% deposit, you and both of us stamp and sign the contract, then we will produce the goods for you, ensure to provide you with good quality, and deliver within the deadline, service first, believe us, we will feedback to you satisfactory results!
Above all,any questions you can through the online service to get the answer.
Welcome to inquiry us!!!
FAQ
Q1: How can I select your product?
Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
Q2:What if I don't know how to install the screen?
1. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation
place, and we can guide on line.
2. Training 2 people in the factory.
3. We can send our engineers to your country to guide how to install the screen.
Q3:What is the minimum order quantity?
Qty: 1 unit. Different order quantity different price.
Q4:I would like to ask you if it's possible to have my logo on the product.
Logo printing service is available for mass order based on our M.O.Q
Q5:What if I don't know how to maintain the screen?
We will provide you the operation manual, software when you place the order and also we can remote to help you to adjust the software by teamviwer.
Q6: How to deliver the my goods?
It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we guggest to deliver by air, otherwise by sea to save the costs.
Q7: How about your warranty?
We provide 3 year warranty for all of our products and supply life-time maintenance.
Q8: What kind of packaging do you provide?
We provide flight case, wooden case and carton.
Q9: How long will it take me to get the product?
We will send the goods as quick as possible, but oftenly it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.
Q9: What kind of certification do you get?
We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
