Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mianland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P2 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000sqs/month |
| Brand Name: | RGB LED Display | Feature: | GOB Small Pixel Pitch |
|---|---|---|---|
| Brightness: | ≥1200cd/sq | Certifications: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| LED Chip: | Epistar | Module Size: | 256*128mm |
| Cabinet Size: | 512*512mm | Waterproof: | IP34 |
| Operation Power: | 220V 60HZ | Control System: | LSN |
| Pixel Density: | 250000dots/sq | Resolution: | 128*64 |
| Scan Mode: | 1/32 | LED Type: | SMD2121 |
| Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10... |

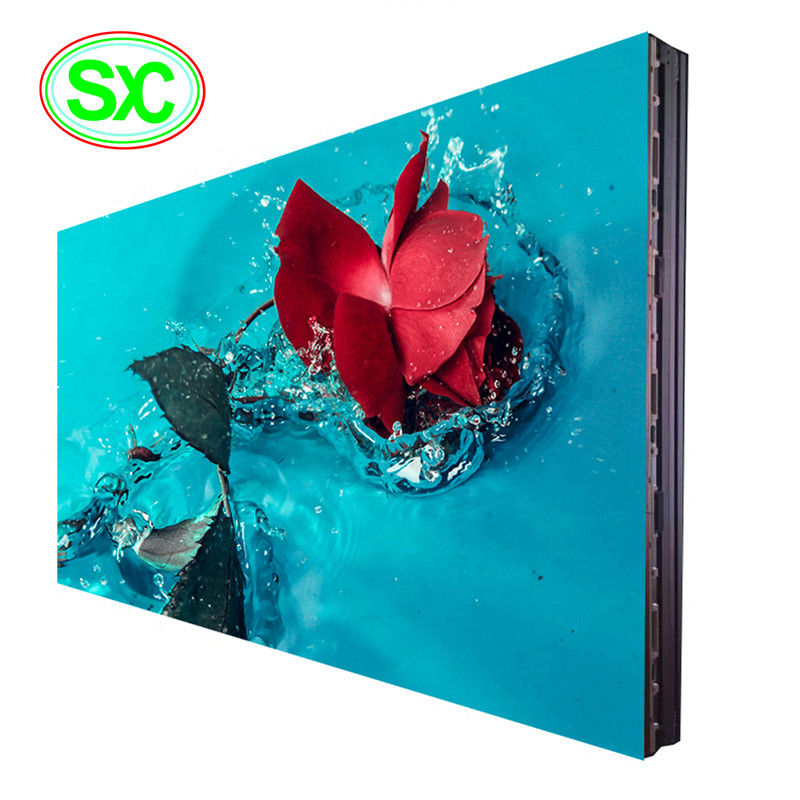

GOB Small pixel pitch P2 IP34 256*128mm Module SMD Indoor Full Color LED Display 1/32 ScanHigh Resolution
Specifications :
| Indoor P2 LED Display | |||||
| Resolution/mm | 2 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 250000/square meter | ||||
| Module resolution | 128x64 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our promises:
1. Diversified products : Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers. 2. Experienced&Professional: 10 years manufacturing experience on LED displays, professional workmanship & design. 3. Best raw materials: Taiwan Epistar LED chip,high quality,high brightness and long life span. 4. Competitive price: 100% factory price,competitive and reasonable price. 5. Strict quality control: 100% testing before packing , make sure our quality before delivery. 6. Quality gurantee: All our LED display screens is more than 100,000 hours life span.
Pre-sale service
Service 1:online 24 hours and if you need the signs very urgently ,we can finish one set signs in 3 days.
the transport time is about 4 days,so total about 1 week you can get it.
Service 2: we can make the professional design for you free. and make the 3D drawing show you how the signs look like when it been finished.
Service 3:Our Qc team will check products'quality/size/style/quanity/accessories/packgae etc after
finishing .if all goods meet customers requirement,we will contact our DHL and ship all items out.
Service 4:After shipping out, we will provide the tracking number to track your goods status.
After service
Service 1: if the signs have any problems in 2 years, just take the photos show us, we will send the new items
to you free in 10 days. and we pay the freight.
Service 2 :if you are satisfied with our products and place your second/third/.....order from us , more discounts are waiting for you.
FAQ
1) Q: Are you a factory or trading company?
A:We are a company with our own factory,can accept OEM/ODM .
2) Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,Western Union.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is two whole years after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.
Delivery and Shipping details
FAQ
Q1.Can I have a sample order for the LED display?
A:Yes,we welcome sample orders to test and check quality.Both for the module or the whole screen.
Q2.What about the lead time?
A:Order less than 100 square meters lead time to take 15 working days
Q3.Do you have any MOQ limit for LED display orders?
A:Low MOQ,1 square meter or a module checking is available
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept EXW FOB CIF DDP and other shipping ways.It usually takes 20~30 days on the sea.a few days for customs clearance
Q5.How to proceed with an order for an LED display?
A:Firstly let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6.Is it OK to print my logo on the products?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer a guarantee for the products?
A:Yes,we offer 1-5 years warranty for our products.
Welcome to inquire us and visit our website!!!
