Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | china |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCXK P4 |
| Minimum Order Quantity: | 1square meter |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 5000sqm per month |
| Dot: | 62500dots/qm | Module Size: | 256mmx128mm |
|---|---|---|---|
| Warranty: | 3 Years | Voltage: | Dc5v |
| Pixel Composing: | 1R1G1B | Brightness: | 7500cd/m2 |
| Highlight: | full color outdoor led display,outdoor full color led screen |
||
High Brightness and 3 years warranty water proof Outdoor Full Color P4 LED Display Screen
We have our outstanding research and develop department and after-sales service workers, the separately design ability.Our product mainly included the RGB led display,outdoor full color led display,indoor full color led display,curtain led display, advertising led display,stage led display,led billboard,bi color led display,s high quality and defintion pantalla led para publicidad ingle color led display,rental led display,stadium led display,led display module,car led sign display,hanging led display,mobile truck led display..
It can be used on the shopping mall,bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on. we adopt many methods and very good after-sales service to sell our product all over the world.. Whenever and wherever we are , we always take the principle that professional makes good quality, provide the perfect product and service for our customer.
The feature of our led display as follows.

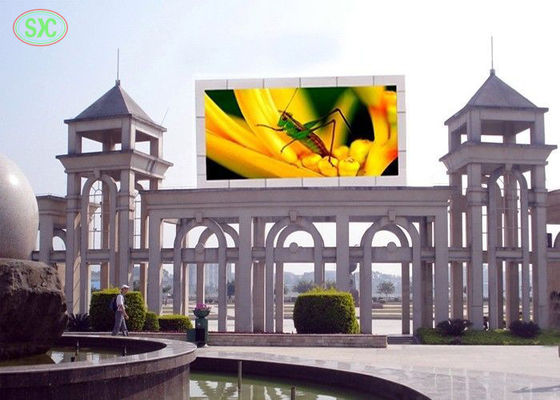

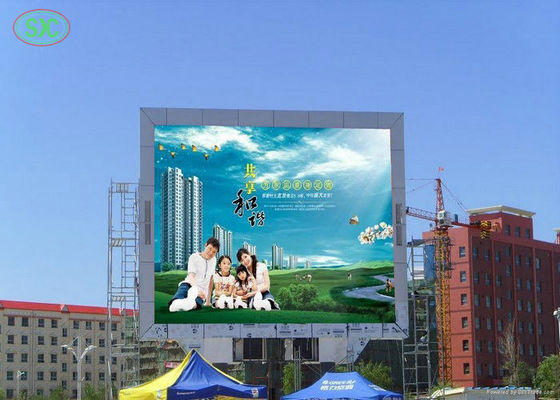

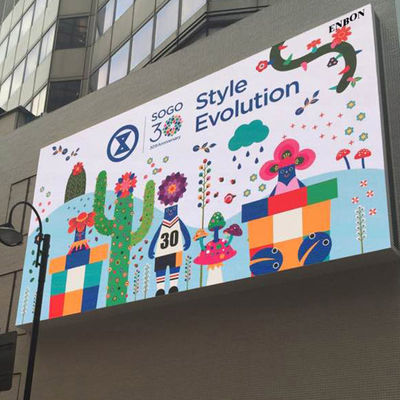

the application of our led display
it can be used on the shopping mall, bank,bus station, train station,center of the downtown,
airport, school, factory ,bus ,taxi and so on.
shenzhen scxk electronic CO,.Ltd has new factory,and about 100 employmees, we have outstanding R&D department and after-sell service workers,and separately design ability, our product mainly included led single dual color display,led indoor full color display,led outdoor full color display,led wireless car used screen. welcome to visit our factory and talk about the business with us .Any feedbacks from you will be highly appreciated!
The outdoor P4 led display parameter.
| outdoor p4 full color hanging led display , 1/8 scanning with die casting aluminium | |||||||||
| LED Lamps | Type | SMD2525(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||

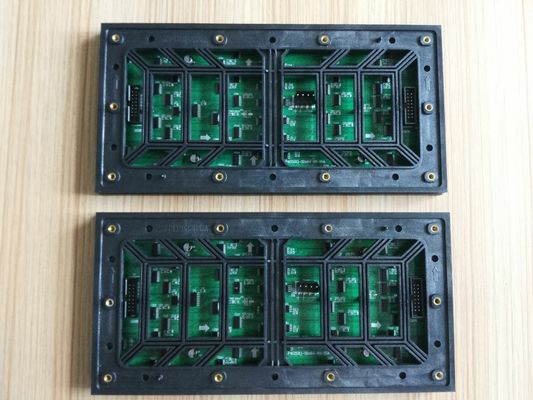

| LED Module | Pixel Pitch | 4mm | |||||||
| Module Size | 256mm x128mm | ||||||||
| Module Resolution | 64dots*32dots | ||||||||
| LED Cabinet | Cabinet Size | 768mmX512mm | |||||||
| Cabinet Resolution | 192pixels *128pixels | ||||||||
| Cabinets Material | die casting aluminium | ||||||||
| LED Display | Pixel Density | 62500pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >5000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
| Best Viewing Distance | 1m~150m | ||||||||
| Max Power Consumption | 1000w/sq.m | ||||||||
| Average Power Consumption | 600 w/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 1024 | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP64 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/8 scan constant current | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control method | Synchronization & Asynchronization | ||||||||
| Control System | Control System | Linsn/Nova/Colorlight | |||||||
| Software | LED Studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system |
Microsoft Windows 7, 98, 2000, XP and Vista |
||||||||
Parking and Shipping
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
