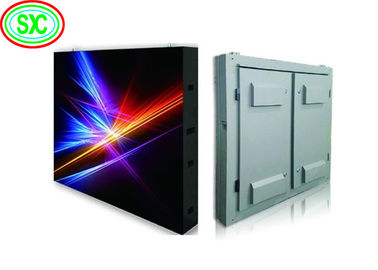

Waterproof Outdoor Full Color LED Display with CE ROHS FC CB IECEE Certificate

Waterproof Outdoor Full Color LED Display with CE ROHS FC CB IECEE Certificate

  • Waterproof Outdoor Full Color LED Display with CE ROHS FC CB IECEE Certificate
  • Waterproof Outdoor Full Color LED Display with CE ROHS FC CB IECEE Certificate
  • Waterproof Outdoor Full Color LED Display with CE ROHS FC CB IECEE Certificate
Waterproof Outdoor Full Color LED Display with CE ROHS FC CB IECEE Certificate
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7 working days after receive your payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Led Type: SMD 3 IN 1 Module Dimension: 320 Mm (W) X 160 Mm (H)
Module Resolution: 32 ×16 Pixel Density: 10000 Dots/sqm
Driving Mode: 1/4 Brightness: ≥6000 Cd
Warranty: 5 Years Color: Full Color
Working Voltage: DC5V,5V
Highlight:

full color outdoor led display

,

outdoor full color led screen

Friendly Cost Waterproof Outdoor Full Color Led Display with CE ROHS FC CB IECEE Certificate


Features

  1. SMD and DIP technology available.
  2. With the against-hitting mask design.
  3. The strong back support.
  4. Easy to assemble and dismantle
  5. 2years warranty and more than 10 years life use
  6. The indoor power supply and More cabinet to be choose





Advantage


1 Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

 2 High brightness, this is very important for South African market, Brazil market, no matter the sunshine spot, our high brightness can work well under the big sunshine.

3 Stable performances, our JiNaite brands can gurantee you this , you have our words, the best sales services before&after sale








Specification



Project classification Conventional display
model P10
Pixel unit module Pixel pitch(mm) 10
Pixel density (nits/m2) 10000
LED type SMD
Resolution of pixel(nits) 32*16
Module size(mm) 320*160
Pixel composing 1R1G1B
Pixel unit cabinet Cabinet size(mm) 960*960
Cabinet Resolution (nits) 96*96
Module arrangement (piece) 3×6
Cabinet structure Water-proof
installation fixed on the back
Cabinet material iron aluminum
Cabinet weight(KG) 60 40
The way the cascade Aviation head
Protect degree IP65 front IP43back
Display parameters Viewing distance(m) 20~50
brightness(cd/m2) 5500~7000
Power consumption (w/m2) 280 ave 630 max
Driving IC 16 a constant flow of chip
Refresh rate(HZ) ≥1920
Display ratio (suggest) 4:3/16:9
Viewing angel(c) H110 V120
System working voltage 88-132VAC176-264VAC 47-63HZ
Other parameter Image adjustment contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Image processing Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
Brightness uniformity The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
Gray/color Red green blue1024 grade10BIT,10.7 billion color
Color temperature/contrast Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
Transmitting Distance The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Input Signal RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Control System PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
Average No Failure Time 5000 hours
Life span 100,000 hours
Out-of Control rate 0.0001
To floor drain current Less than 3.5MA
Control system Synchronized
Operating Environment Temperature

-20°C—65g°C Optional

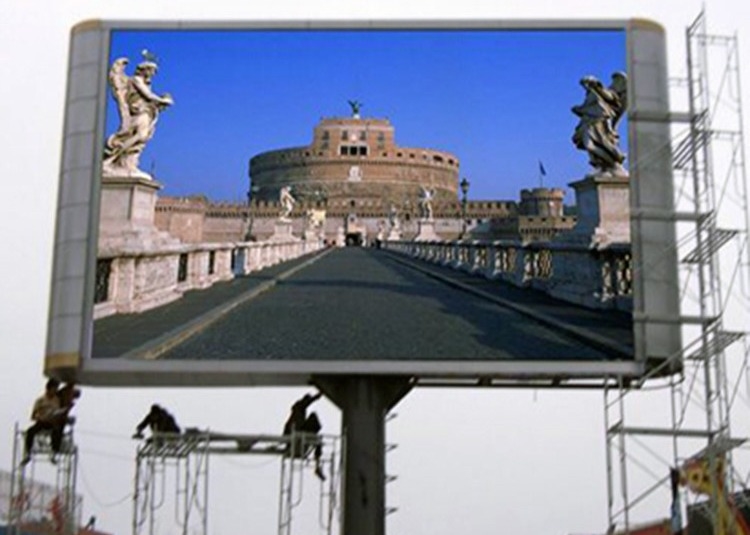

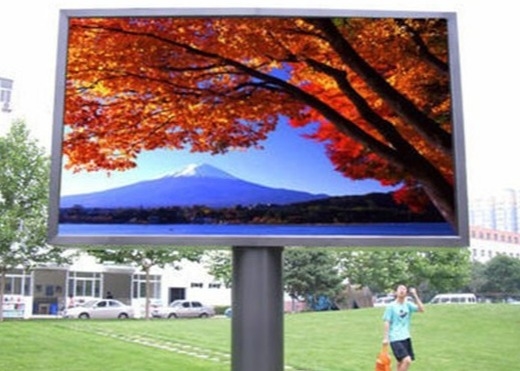

Project



Waterproof Outdoor Full Color LED Display with CE ROHS FC CB IECEE Certificate 0











 Factory Equipment


1: Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
2: Automatic Glue- pouring Machine, Solder Paste Printing Machine,
3: Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
4: Withstand Voltage Tester, Ground Resistance Tester,
5: Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
6: Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
