Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 8 sqm |
|---|---|
| Price: | negotiation |

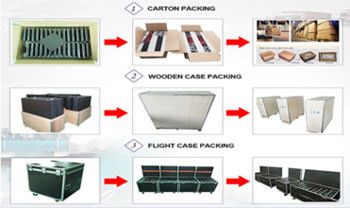

| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T |
| Supply Ability: | 5000 sqm per month |
| Pixels: | 10mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Led Type: | SMD 3535 | Display Function: | Video |
| Waterproof: | IP65 | Frame Frequency: | >=60HZ |
| Average NO Failure: | >=1000hours | Transmiiting Distance: | Internet Cable <100m |
| Refresh Rate: | >=180HZ | Maximum Power: | 600w/㎡ |
| The Optimum: | 200w/㎡ | ||
| Highlight: | advertising led display board,advertising led billboard |
||
P10 High Resolution Outdoor Full Color LED Display 1R1G1B
♦ Our mission:
To be the premier providr of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.
♦ Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Technical specification
| outdoor SMD p10 | |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000m2 |
| Module resolution | 32*16 |
| Module size/mm | 320*160 |
| View distance | ≥10m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Driving mode | Constant driving current |
| Scanning mode | static dring |
| Frame rate | 60Hz |
| Refresh frequency | 3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | >72hours |
| Mean time Between Failure | >500hours |
| life time | >100000hours |
| Envirornment temperature range | operating temperature range -200c-500c |
| Maximun power :/m2 | -<800w |
| Average power:/m2 | <300w |
| Self-check technolog | LEDspot self-check,communication check,power check,temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control,record potential fault send out warning signs to the operators(need customization) |
| Software environment | windows NT,Windows 1999,Windows XP |
| Input power cable | AC110v to220v |
| Signal input | DVI |
| Warranty | 2years quality warranty ,10 years spare parts support |
Installation
FAQ
Q1: What is the payment method?
A1: We support a variety of payment methods,the most common is the TT.
Q2: What's the pixel pitch for Outdoor LED Display Screen?
A2: Outdoor (P6mm / P8mm/P10mm)
Q3: Where is it used for?
A3: Outdoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Our team will be forever here to offer you full supports !!!
Contact Person: Susan_zhang
Tel: +8618344159301
