Place of Origin: | made in china |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | SCXK-P8 |
Minimum Order Quantity: | 5sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | Western Union, T/T, L/C, MoneyGram |
Supply Ability: | 5000sqm per month |
Module Size: | 192mm X192mm | Cabinet Size: | 768 X768mm |
---|---|---|---|
Warranty: | 3 Years | Lifeuse: | 10 Years |
IP: | IP65 | Led Chip: | Epistar Chip |
Power Supply: | Meanwell Or Chuanglian | ||
High Light: | full color led signs outdoor,full color outdoor led display |
IP65 HD Outdoor Full Color LED Display P8 With Steel And Aluminum Cabinet , 3 Years Warranty
Shenzhen scxk electronic CO,.Ltd is a factory,and about 100 employmees, we have outstanding R&D department and after-sell service workers,and separately design ability, our product mainly included led single dual color display,led indoor full color display,led outdoor full color display,led wireless car used screen. welcome to visit our factory and talk about the business with us .Any feedbacks from you will be highly appreciated!
The feature of our led display as follows.
the application of our led display

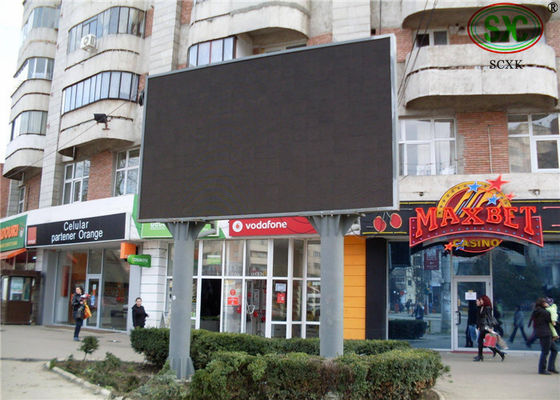

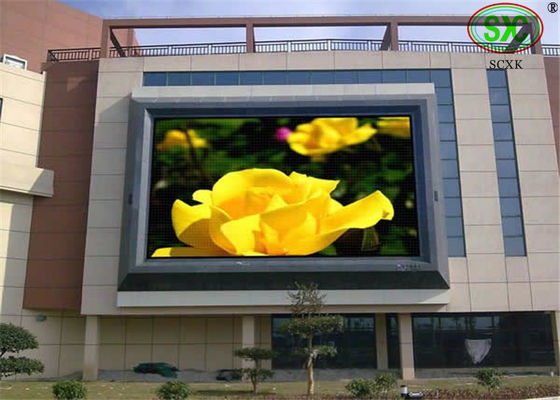

it can be used on the shopping mall, bank,bus station, train station,center of the downtown,airport, school, factory ,bus ,taxi and so on.
HD outdoor full color P8 Led display specification | |||||||||
LED Lamps | Type | SMD3535(High Brightness LEDs) | |||||||
LED Standard | Real Pixel(1R1G1B) | ||||||||
Red Wavelength | 625-630nm | ||||||||
Green Wavelength | 515-530nm | ||||||||
Blue Wavelength | 465-475nm | ||||||||
LED Module | Pixel Pitch | 8mm | |||||||
Module Size | 256mmx128mm | ||||||||
Module Resolution | 32*16dots | ||||||||
LED Cabinet | Cabinet Size | 768mmX768mm | |||||||
Cabinet Resolution | 96pixels *96pixels | ||||||||
Cabinets Material | Sealed Iron Cabinet | ||||||||
LED Display | Pixel Density | 15625pixels/sq.m | |||||||
Drive IC | MBI5124 | ||||||||
Power Supply | Series connection | ||||||||
Brightness | >7500cd/sqm | ||||||||
Display Color | 16.7million | ||||||||
Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
Best Viewing Distance | 6m~200m | ||||||||
Max Power Consumption | 600 w/sq.m | ||||||||
Average Consumption | 300 w/sq.m | ||||||||
Weight | 40Kgs/sq.m | ||||||||
Refresh Rate | 3000hz | ||||||||
Input Voltage | AC220V/50H or AC110V/60H | ||||||||
Output Voltage | DC5V,40A | ||||||||
Grey Scale Levels | 16bit | ||||||||
Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
MTBF | 10,000 hours | ||||||||
Life-span | 100,000 hours | ||||||||
Protection Level | IP65 | ||||||||
Failure leds | less than 0.0003 | ||||||||
Working Temperature | -25℃~65℃ | ||||||||
Drive Mode | 1/4scaning | ||||||||
Working Humidity | 5%~99% | ||||||||
Control System | Control method | Synchronization & Asynchronization | |||||||
Control System | LINSN Control System (sender,receiver,HUB with 75 interface,software) ( within xinxun Asynchronization) | ||||||||
Software | LED Studio (LINSN) | ||||||||
Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
PC Operating system |
Microsoft Windows 7, 98, 2000, XP and Vista |
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Any question,do not hesitate to contact me, Thanks !
