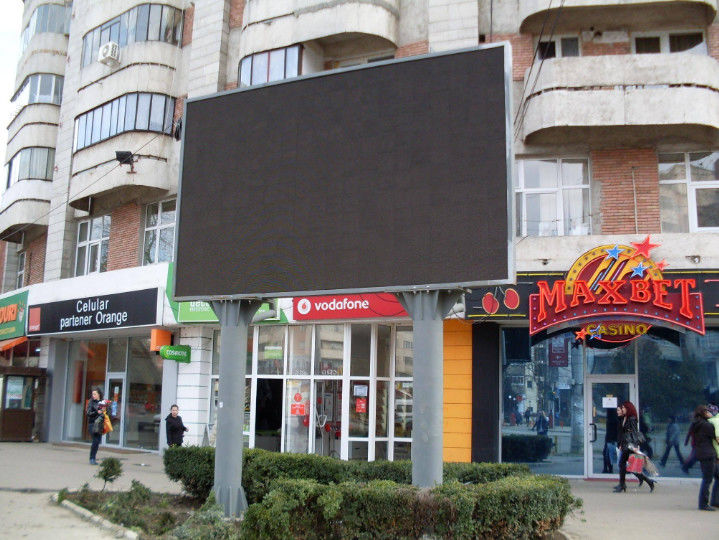

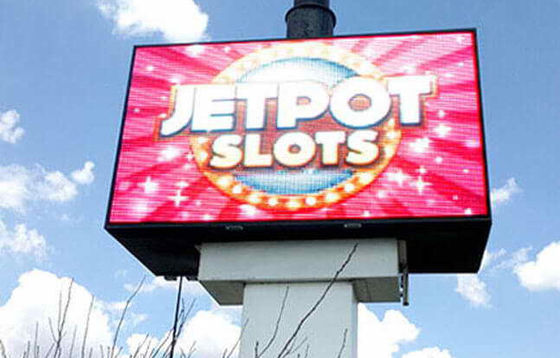

Outdoor P8 led screen IP65 led advertising , Nova Control System 7000Cd brightness

Outdoor P8 led screen IP65 led advertising , Nova Control System 7000Cd brightness

  • Outdoor P8 led screen IP65 led advertising , Nova Control System 7000Cd brightness
  • Outdoor P8 led screen IP65 led advertising , Nova Control System 7000Cd brightness
Outdoor P8 led screen IP65 led advertising , Nova Control System 7000Cd brightness
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: 1-1000sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Density: 15625 Brightness: 7000
Control System: Nova LED Shape & Size: 3mm Smd3535
Module Size: 256*128 Driver Mode: 1/4
Cabinet Size: 1024*768 Gray Scale: 14BITS
Highlight:

led display rgb

,

rgb led screen



P8 outdoor IP65 led advertising screens , high resolution exterior led display LSN Control System





Operating Humidity 10 - 90 % RH

Operating Life 100,000 Hours

MTBF 5000 Hours



Control Mode Synchronous display with control PC by DVI


Place of Origin Guangdong, China (Mainland) Brand Name SCXK Model Number SCXK-ODP10F
Usage outdoor Tube Chip Color Full Color Display Function Video
Pixels 8mm Screen Dimension customized size appearance nice
technology single point revise function words,video,picture and so on quality CE,ROHS,ISO9001
size customized price competitive material import from Japan
manual engineer teach operate easy to control language multiple



Specifications

new product made in china,CE,ROHS certificate,fast delivery,high resolution,high refesh rate,good ad benefit



name technology parameter

1.pixel tube:





pixel pitch:8mm;

primary colors: red +green +blue;

color composing:1R1G1B; full color

2.unit box:



module size:256mm*128mm;

Module resolution:32*16;

cabinet size: 1024mm*768mm;

cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

3.the whole screen:





the optimum viewing angel: horizontal 120°, vertical 120°

the optimum viewing distance:10-550m;

working temperature:-10°C ~ +60°C

relative humidity:≤95%RH;

cabinet weight:40kg/sqm;



4.operating voltage



AC220V±10% or 110V±10% or 380V or 240V or 440V

:average consumption:500W/m2

Max consumption: ≤1100 W/ sqm

5.master system:





PCTV non-linear editing card +DVI display card+ main

controller card+ optic fiber transmission(Optional)



6.main technology parameter:







1)driving mode:1/4

2)refreshing rate:≥1000Hz/s

3)frame frequency:≥100Hz/s

4)gray scale/color:≥16.7M colors(Synchronized)

5)manage gray:≥72bit

6)brightness:≥1500cd/sqm

7)color temperature condition:3500K~9500K,be adjustable

8)adjusting style of brightness: hand movement/auto

9)video signal: RF,S-Video,DVD,VCD,EVD,RGB,RGBHV,YUV,YC,COMPOS

ITION etc. managing ability of signal:≥12bit.against Y revised curve: owns

3pcs above Y curve that can adjustable.

10)master system adopt: PCTV card+ DVI display card +main master card+

optic fiber transmission

11)aver trouble-free time:≥10000hours

12)evenness: between random adjacent pixel ≤0.5mm,module splicing space

<1mm

13)uniformity: strong pixel light, equal module brightness, without the

phenomenon of color spot looking from the right side when it turns to be all

white, and also the clean picture.

14)malfunction dot rate:<0.0001(to be discrete situation)

15)switch power loading:5V/40A

16)display mode of computer:1024×768

17)efficient communication distance:

reticle:100m(without middle relay),multiple mould optic fiber:500m,single

mould optic fiber 20km

18)Operating Environment Operating System / English Windows98/me/2000/

NT/XP
- Hardware configuration, Pentium 300MHz or above, ROM 64 m, standard

VGA Graphics Card 2s56
or above
- Related software Microsoft Media Player, Office 2000, Real Player in the

case of Real Player file
- LED Studio Software
- Control the way asynchronous screen (computing)
- An interface standard Ethernet
- Transmission distance CAT 5 cable: <100 m; single fiber: <10 km

7.software



LED studio



(SCXK)



Led video display



And please see and check main specific technology advantages of our products as below:

1. Firm and high safety ratio of Ox horn socket,convenient to take or carry.

2. Large PCB board emerges heavy current,wide circuit and high brightness and avoids Mosaic phenomenon so that can make sure display work smoothly.

3. PC material that we use has function of retardant fire,avoids using bad quality of expand with heat and contract with cold plastic,and PC material has the firm original pure black,prevents fading from wind,sun and rain.

4. Large module leads less space and better evenness makes display good image.

5. A class of lamp bead has better gloss and high pure degree makes out high clear image.

6. Stainless steel of screw makes IC and current operate smoothly.

7. Heat resistance 90°IC not easy to be harmed makes display longer lifetime.

8. Platoon fan makes normal air convection,easy to work,save too much power cost for customer and extends screen lifetime,but if air conditioner,it will make too low temperature,and as random two cabinet can not combine together with no any space,so the cold air can flow out from the cabinet,at this time air conditioner will be no meaningful,also temperature of high sometimes or low sometimes makes bad effect on IC.

9. 220V Langyu lightning rod installing(outdoor),the hight from lightning rod to the top of display is more than 2.5m,prevents lightning sudden attacking makes display can not work smoothly.And undergrounding construction:the lowest layer is putting copper rod about height 2m to 4m in the deepest,then charcoal 50mm to 100mm in the countdown second layer,and then salt in the countdown third layer to keep ground wet.

Advantages above is just the reason why so many persons select us.
