SMD3535 P10 Outdoor Full Color LED Display 960x960mm Waterproof

Brand Name:	SCXK
Model Number:	P10
MOQ:	6 sqm
Price:	negotiation
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FCC/ISO/UL/CB

Pixels:

10mm

Led Type:

SMD3535

Cabinet:

Iron Or Die-casting Aluminum

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Refresh Rate:

>=180HZ

Module Size:

*160mm

Cabinet Size:

960*960mm

Module Resolution:

32*16

Module Style:

1/4 Scan

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led display smd

outdoor smd led display

Product Description

SMD3535 P10 Outdoor Full Color LED Display

Waterproof 1/4 Scan 960×960mm

Key Specifications

Pixels	10mm
Tube Chip Color	Full color
LED Type	SMD3535
Display Function	Video/Image
Cabinet Material	Iron or Die-casting Aluminum
Frame Frequency	≥60Hz
Average No Failure	≥1000 hours
Refresh Rate	≥180Hz
Module Size	320×160mm
Cabinet Size	960×960mm
Module Resolution	32×16
Module Style	1/4 scan

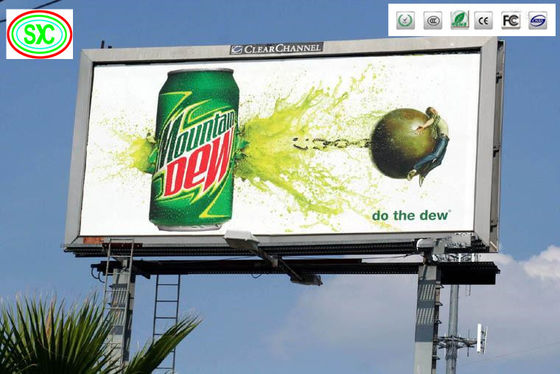

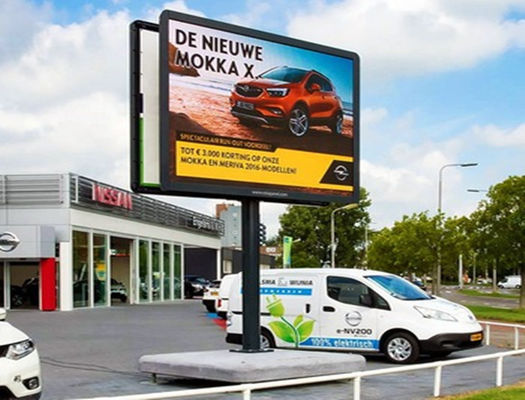

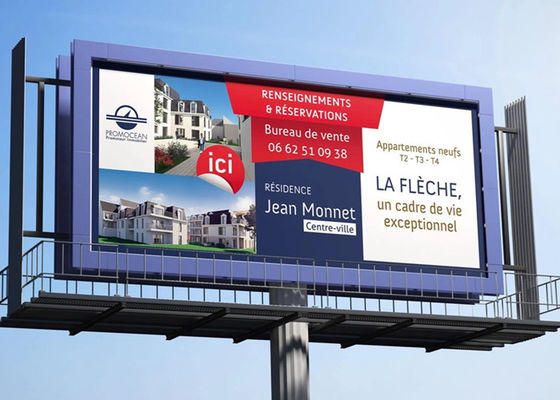

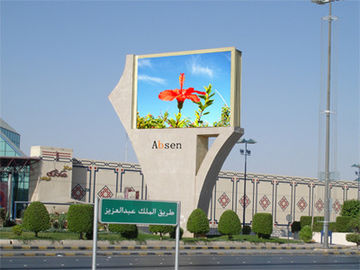

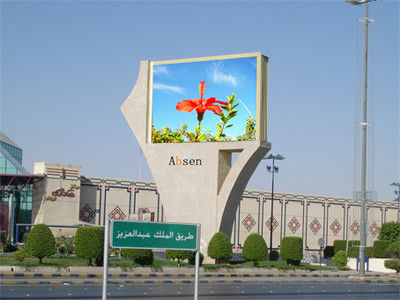

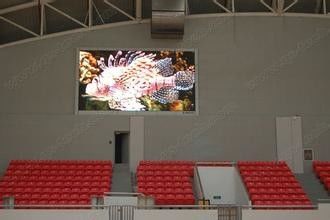

Applications

Stage productions, sports events, and advertising displays
Traffic information systems and public transportation terminals
Shopping centers, department stores, and banking facilities
Stadiums, airports, and exhibition venues
Concerts, festivals, motor shows, and public events

Technical Specifications

Module Specifications

Color type	Real full color
Pixel LED	SMD3535
Resolution rate	32×16
Driving IC	MBI5024
Working voltage	DC5V
Power consumption	200W
Working temperature	-20°C to +50°C

Screen Specifications

Material	Iron/Die-casting aluminum
Size	960×960mm
Resolution rate	96×96
Module quantity	4×6
Density	10000 dots/m²
White balance luminance	≥5000cd/m²
Color temperature	6500K
Viewing angles	110° horizontal / 50° vertical
Protection grade	IP65 (front) / IP43 (rear)
Maximal power/m²	600W
Refresh frequency	≥300Hz/s
Gray grade	16,777,216 colors
MTBF	>5000 hours
Life-span	>100,000 hours

Our Services

Continuous Quality

With over 10 years of LED display manufacturing experience, we maintain continuous quality through regularly updated equipment and standardized modular production.

Competitive Pricing

Our large-scale production capacity and professional technology allow us to offer competitive prices while maintaining high quality standards.

Fast Delivery

We honor our delivery commitments with efficient logistics and emergency inventory procedures when needed.

Comprehensive Service

Pre-sales: We provide expert product recommendations based on your requirements.
After-sales: We track product usage to continuously improve our offerings.

Packaging

Flight case and carton case options available.
