P8.928 LED Dance Floor module 250*250 / full color led dj stage dance floor SMD

P8.928 LED Dance Floor module 250*250 / full color led dj stage dance floor SMD

  • P8.928 LED Dance Floor module 250*250 / full color led dj stage dance floor SMD
  • P8.928 LED Dance Floor module 250*250 / full color led dj stage dance floor SMD
P8.928 LED Dance Floor module 250*250 / full color led dj stage dance floor SMD
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P8.928
Payment & Shipping Terms:
Minimum Order Quantity: 1-1000sqm
Price: negotiation
Packaging Details: flight case, wooden case
Delivery Time: 7-10 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Pixel Density: 12580 Brightness: 2800cd/sqm
Control System: Nova Module Size: 250*250
Driver Mode: 1/7 Operation Power: 220V 60HZ
Display Color: 1.07 Billion Protection Level: IP65
High Light:

interactive dance floor

,

light up dance floor

P8.928 LED Dance Floor module 250*250 / full color led dj stage dance floor SMD



  • Product Description



1.Clear view.

2 .Pixel pitch:8.928mm, effect clear and beautiful.

3.Toughened glass cover and high class appearance.

4.Flat and smooth connection,fast and convenient instalation.

5.Strickly pressure testing and can stand pressure 1000kg/sqm.

6.Semi-outdoor design, IP rating can reach IP 65.

7. Easy clean.



P8.928 LED Dance Floor module 250*250 / full color led dj stage dance floor SMD 0




  • Specifications



Pixel Information Pixel Pitch 8.928mm
Pixel Configuration SMD3528
LED Wavelength Red: 615 nm - 635 nm
Green: 520 nm - 535 nm
Blue: 465 nm - 475 nm
LED Module Module Size(mm) 250 (Width) × 250(Height)
Module Resolution 28 (Width) ×28 (Height)
Cabinet Cabinet Size(mm) 500 (Width) × 500 (Height)
Cabinet Resolution 56(Width) × 56 (Height)
Cabinet Weight 11kg/pc
Cabinet Material Steel
Power Input Voltage 100-240V AC, 50/60Hz
Max Power Consumption 800 Watt/sqm
Avg. Power Consumption 360 Watt/sqm
  Brightness 2800cd/sqm
Brightness Uniformity Luminance Discrepancy < 5%
Best Viewing Angle Horizontal:140°,Vertical:140°
Best Viewing 8.928 m
Ambient Conditions Temperature Range Working:-20deg. to +60deg
Operating Humidity 10%-90%RH
Ingression Protection Grade IP65
Processing Scanning Mode 1/7 scan
Refresh Frequency >1920HZ, Adjustable(depends on control system)
Signal Input DVI, Composite Video for Live Video
Controller

Nova



  • Applications

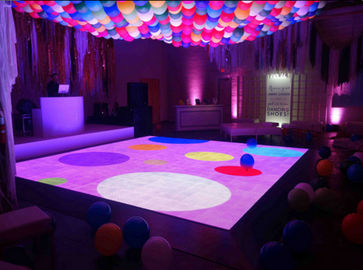

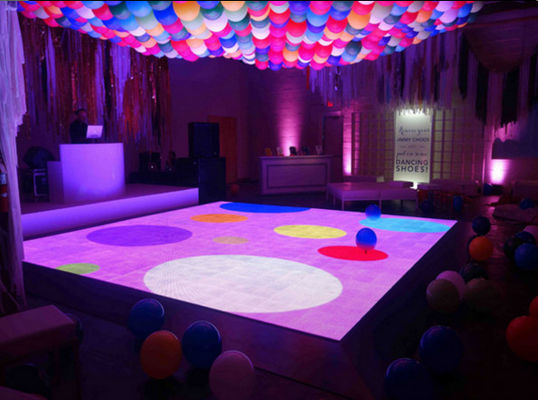

  • as led video dance floor for various stage shows, wedding, party, celebration, etc;
  • to be used in entertainment occasions like nightclubs, bars, disco etc;
  • as led floor for any promotion activities, any commercial activities and even auto shows;
  • also hanged as normal led display screen.​

  • Company Information

Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.


  • Certifications:

FAQ

1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
