Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | Made in china |
| Brand Name: | SCXK |
| Certification: | CE,ROHS, FCC.UL.CUL |
| Model Number: | SCXK-P3 |
| Minimum Order Quantity: | one cabinet sand one module can be avaiable. |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box, flight case, paper box |
| Delivery Time: | within 7-10days |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | Die Cast Aluminum Cabinet | Cabinet Size: | 192mm X192mm |
|---|---|---|---|
| Module Size: | 576mm X576mm | Warranty: | 3 Years |
| Led Light: | SMD2121 | Led Chip: | Epistar |
| Color: | Full Color | Scan Way: | 1/16scan |
| Dot Density: | 111111dots/sqm | Use: | Advertising Publish, Shopping Mall, Welcome Display, Restaurant & Hotel Supplies |
| Specification: | Stretch Bar, Led Video Processor | ||
| Highlight: | led stage display,stage led display |
||

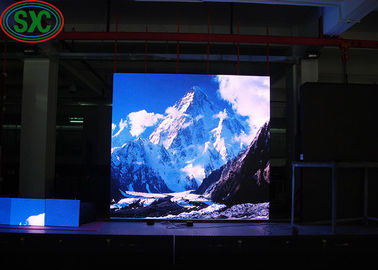

Interior 1/16 scan P3 high definiton stage led screens 64x64dots
Outdoor full-color LED display can be used in outdoor environments such as airports, highways, cultural and leisure plazas, commercial pedestrian streets, residential communities, downtown areas and other outdoor environments, with a variety of real-time signal sources and waterproof, dustproof, anti-static features, and its use is to publicize outdoor advertisements or broadcasting important news, events or TV programs.

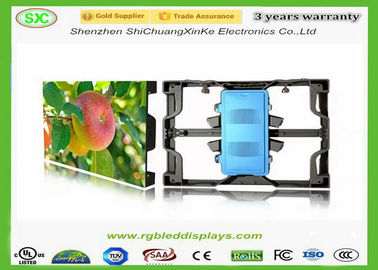

The indoor P3 die cast aluminum cabinet led display parameter.
| LED Lamps | Type | SMD2121 (High Brightness LEDs) | ||||||
| LED Standard | Real Pixel(1R1G1B) | |||||||
| Red Wavelength | 625-630nm | |||||||
| LED Module | Pixel Pitch | 3mm | ||||||
| Module Size | 192mm x192mm | |||||||
| Module Resolution | 64*64dots | |||||||
| LED Cabinet | Cabinet Size | 576mmX576mm | ||||||
| Cabinet Resolution | 192pixels *192pixels | |||||||
| Cabinets Material | Sealed Iron Cabinet | |||||||
| led screen | Pixel Density | 111111pixels/sq.m | ||||||
| Drive IC | MBI5124 | |||||||
| Power Supply | Series connection | |||||||
| Brightness | >2500cd/sqm | |||||||
| Display Color | 16.7million | |||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | |||||||
| Best Viewing Distance | 2.5m~200m | |||||||
| Max Power Consumption | 600 w/sq.m | |||||||
| Weight | 22kgs/sq.m | |||||||
| Refresh Rate | 3000hz | |||||||
| Input Voltage | AC220V/50H or AC110V/60H | |||||||
| Output Voltage | DC5V,40A | |||||||
| Grey Scale Levels | 16bit | |||||||
| Display Colors | R(1024) x G(1024) x B(1024) | |||||||
| MTBF | 10,000 hours | |||||||
| Life-span | 100,000 hours | |||||||
| Drive Mode | 1/32 scaning | |||||||
| Working Humidity | 10%~99% | |||||||
| Control System | Control method | Synchronization & Asynchronization | ||||||
| Control System | (software) linsn | |||||||
| Software | LED Studio | |||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | |||||||
Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
Some times ,you will hang them,so the hang beam is available. Namely, it can be used as rental and hanging .No matter what problems you meet ,just feel free to contact us .Sherlock will be always here to service you.
1:What is the warranty of your led display?
A:We offer 3 years warranty.and more than 100000 hours screen life span
2:Can it play HD video?
A:Yes,it have HD video function with Novastar controlling system.
3:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 day
4:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.
5:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
