P8 SMD Outdoor Building LED Screen 8mm Pixel Full Color Video Display

Brand Name:	SCXK
Model Number:	P8
MOQ:	2sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/CB

Pixels:

8mm

Tube Chip Color:

Full Color

Display Function:

Video

Cabinet Size:

320mm*160mm

Working Voltage:

DC5V

Warranty Time:

3 Years

Dot Density:

15625

Driving Mode:

1/4scaning

Certificates:

CE, RoHs, FCC, ISO, CB

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

smd led display

outdoor smd led display

Product Description

Epistar P8 SMD Outdoor LED Screen Display for Events Advertising Full Color

Product Attributes

Attribute	Value
Pixels	8mm
Tube Chip Color	Full color
Display Function	Video
Cabinet Size	320mm*160mm
Working Voltage	DC5V
Warranty Time	3 years
Dot Density	15625
Driving Mode	1/4 scanning
Certificates	CE, RoHs, FCC, ISO, CB

Product Description

Epistar P8 SMD Outdoor LED Display Screen with Nova System

P8 SMD Outdoor Full Color LED Display Screen

8mm pixel pitch, 1R1G1B, 15625 dots/sqm, P8 SMD Outdoor Full Color LED Display Screen delivers high brightness and energy efficiency, capable of displaying videos, animations, and messages to maximize audience engagement. This versatile display is suitable for various outdoor applications.

Key Advantages

High-definition display adjustable for DVD, TV, dynamic images, VCRs, graphs, text, and animations with 24/7 operation capability. Features sharp, vibrant colors synchronized with computer monitors. Built with waterproof, sun-resistant, anti-static, damp-proof, freeze-resistant, and thunder-proof protection.
Superior quality with excellent light consistency, effectively eliminating mosaic effects.
Crisp, detailed, and realistic display for both images and text.
Wide viewing angles (110° horizontal, 50° vertical) with consistent picture quality and no color shift.
Modular design allows individual LED lamp replacement, reducing maintenance costs and simplifying repairs.

Technical Specifications

LED Lamps	SMD3535 (High Brightness LEDs)
LED Standard	Real Pixel (1R1G1B)
Red Wavelength	625-630nm
Green Wavelength	515-530nm
Blue Wavelength	465-475nm
Pixel Pitch	8mm
Module Size	320mm x 160mm
Module Resolution	32dots x 16dots
Cabinet Size	960mm x 960mm
Cabinet Resolution	120pixels x 120pixels
Cabinet Material	Iron
Pixel Density	15625pixels/sq.m
Brightness	>5000cd/sqm
Viewing Angle	110°(H), 50°(V)
Best Viewing Distance	1m~150m
Power Consumption	Max: 1000w/sq.m, Avg: 280w/sq.m
Refresh Rate	3000hz
Input Voltage	AC220V/50H or AC110V/60H
Output Voltage	DC5V, 40A
Grey Scale Levels	1024
Display Colors	16.7 million (R1024 x G1024 x B1024)
MTBF	10,000 hours
Lifespan	100,000 hours
Protection Level	IP64
Working Temperature	-25℃~65℃
Working Humidity	10%~99%

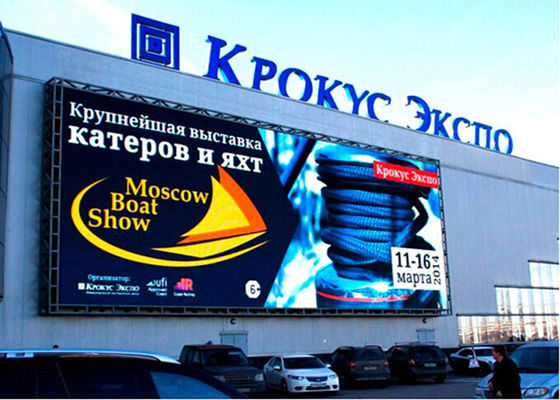

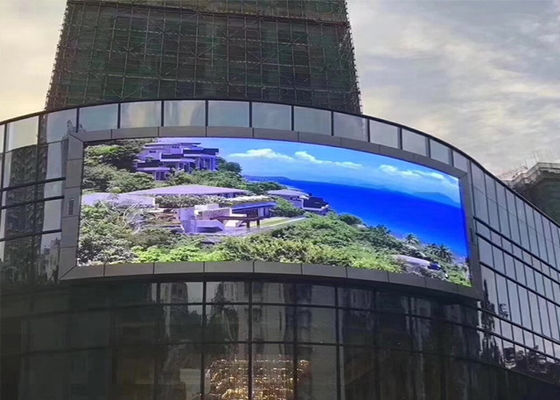

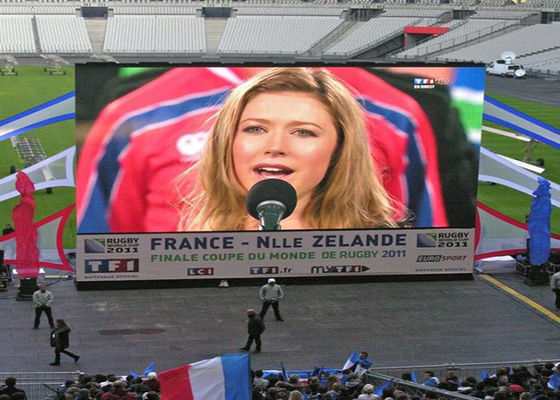

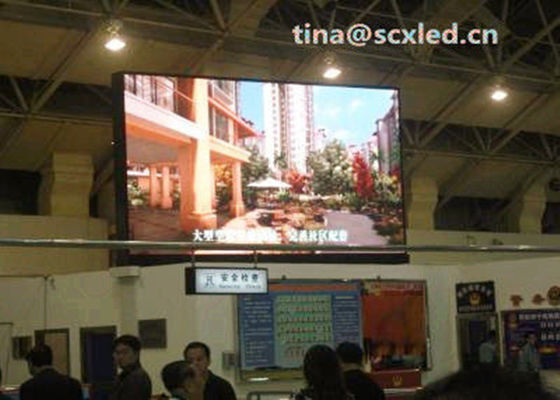

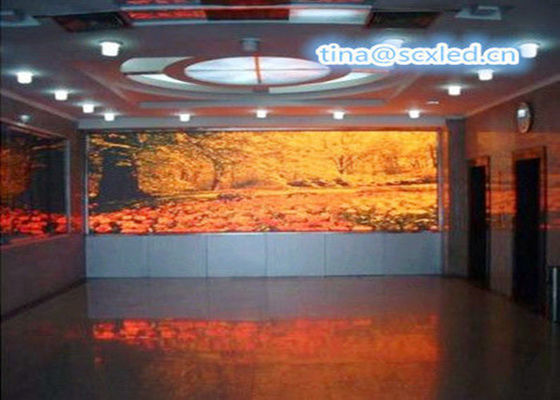

Applications

Packaging and Shipping

Available in wooden cases or flight cases. Multiple shipping options including sea, air, or DHL.

Service Commitment

Fast Delivery: Guaranteed delivery timelines with emergency inventory procedures when needed.

Perfect Service: Comprehensive pre-sales consultation and dedicated after-sales support with product usage tracking.
