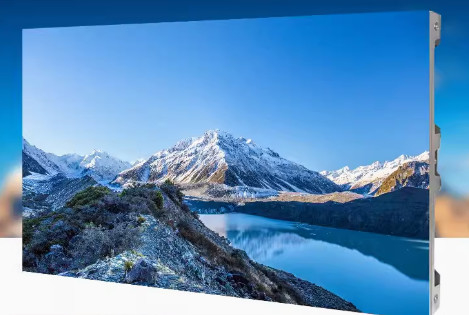

Outdoor Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty

Brand Name:	SCXK
Model Number:	P10
MOQ:	2sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FCC/ISO/UL/CB

Pixels:

10mm

Led Type:

SMD3535

Cabinet:

Die-casting Aluminum/iron

Cabinet Size:

320mm*160mm

Working Voltage:

DC5V

Warranty Time:

3 Years

Dot Density:

10000

Driving Mode:

1/4 Scaning

Certificates:

CE, RoHs, FCC, ISO

Piexl Dots:

32*16

Screen Size:

960*960mm

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led display smd

smd led display

Product Description

Slim Outdoor Full Color P10 P6 P8 SMD LED Screen Rental with 3 Years Warranty

Product Specifications

Attribute	Value
Pixels	10mm
Led Type	SMD3535
Display Function	Video/Image
Cabinet	Die-casting aluminum/iron
Cabinet Size	320mm*160mm
Working Voltage	DC5V
Warranty Time	3 years
Dot Density	10000
Driving Mode	1/4 scaning
Certificates	CE, RoHs, FCC, ISO
Pixel Dots	32*16
Screen Size	960*960mm

Premium Features

LED: International brand components with wide viewing angle, high brightness, minimal attenuation, excellent heat dissipation, and vivid colors
Driving IC: Premium brands including Taiwan MBI and Japanese Toshiba to prevent dark bright or virtual light defects
Power Supply: Industrial-strength with 20% maximum power reserve and less than 5% voltage fluctuation
Connector: Aerospace-grade brands ensure stable power and signal transmission
PCB Board: Advanced 4-layer design
Easy Installation: 100 cabinets can be installed in one hour by one person; cabinet replacement takes under 50 seconds

Technical Specifications

Module	P6.67	P8	P10
Module size (mm)	320x160	320x160	320x160
Density of pixel (dots/m²)	22,478	15,625	10,000
LED encapsulation	SMD3535	SMD3535	SMD3535
Resolution of module	48X24	40X20	32X16
Optimum viewing distance	6.67-155m	8-185m	10-200m
View angle (°)	140 H,120 V	140 H,120 V	110H,60V
Max power consumption (W/M²)	1100	1000	1000
Size of cabinet (mm)	640X640	640X640	640X640
Resolution of cabinet	96x96	80x80	64x64
Weight of cabinet (kg)	15	15	15
Driving method	1/8 scan constant current	1/4 scan constant current	1/4 scan constant current
Refresh rate (Hz/S)	≥2000	≥2000	≥2000
Luminance of white balance (nits)	≥5000	≥6000	≥5500

Additional Specifications

Operation Temperature: -30°C to +50°C

Working Voltage: 110-220 VAC ±10%

Grey Scale/Color: Displays ≥16.7M colors (synchronized)

Brightness Adjustment: 256 manual levels per color, 100 automatic levels per color

Input Signal: RF, S-Video, RGB, RGBH, YUV, YC & Composition, etc.

Control System: Linsn (sending card, receiving cards and Hubs)

MTBF: >50,000 hours

Life Span: >100,000 hours

Defect Dot Rate: <0.0001

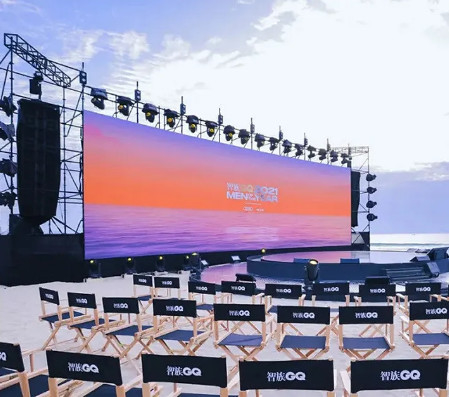

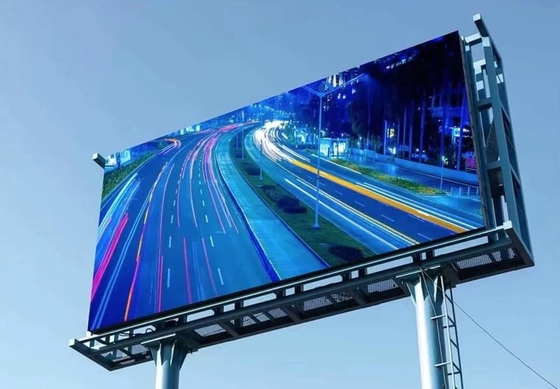

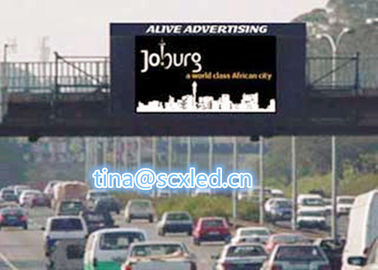

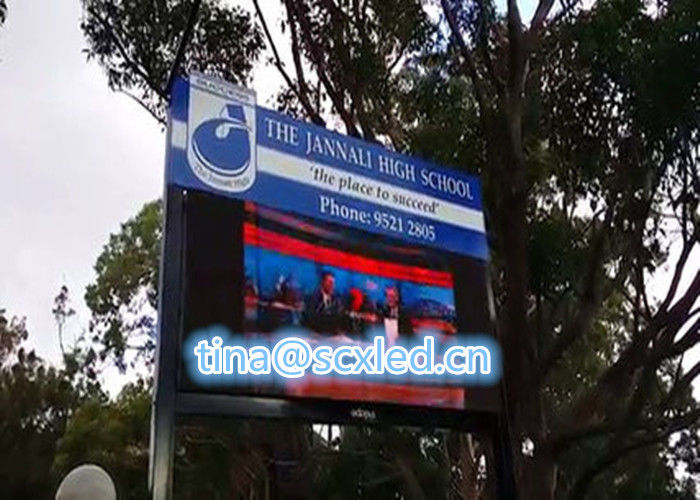

Product Images

Customer Support & Warranty

Guidance Service: Online support for installation and usage; for large projects, we provide one week of free training or on-site guidance (customer bears relevant costs)
Warranty Period: 3 years after shipment
Maintenance Principles: Timely response and problem resolution
Maintenance Terms: Free maintenance during warranty period; after warranty, only material costs are charged

About Our Company

SCXK has specialized in LED technology since 2005. As a leading manufacturer based in Shenzhen, China, we provide comprehensive technical solutions for full-color indoor and outdoor LED displays, rental LED displays, and LED modules.
