P10 Outdoor Waterproof SMD LED Screen 10mm Pixels 3 Years Warranty

Brand Name:	SCXK
Model Number:	P10
MOQ:	2 sqm
Price:	negotiation
Payment Terms:	Western Union,MoneyGram,D/P,T/T
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FCC/ISO/UL/CB

Pixels:

10mm

Tube Chip Color:

Full Color

Led Type:

SMD2121

Cabinet:

Die-casting Aluminum/iron

Cabinet Size:

320mm*160mm

Working Voltage:

DC5V

Warranty Time:

3 Years

Dot Density:

10000

Driving Mode:

1/4 Scaning

Certificates:

CE,RoHs,FCC,ISO,CB

Piexl Dots:

32*16

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led display smd

outdoor smd led display

Product Description

P10 Outdoor Waterproof Mounted LED Advertising Billboards With 3 Years Warranty

Product Attributes

Attribute	Value
Pixels	10mm
Tube Chip Color	Full color
Led Type	SMD2121
Cabinet	die-casting aluminum/iron
Cabinet size	320mm*160mm
Working voltage	DC5V
Warranty Time	3 years
Dot density	10000
Driving mode	1/4 scaning
Certificates	CE,RoHs,FCC,ISO,CB
Pixel dots	32*16

Main Features

Super-light weight and Ultra-thin: only 8 kg in weight for 500x500mm panel, 14kg for 500x100mm panel, 80 mm in thickness
With special designed mask and plastic frame, the surface is very smooth and viewing angle is very large
With driver IC MBI 5124 from Taiwan, it's of high refresh rate of 1920 hHz/s. The driver IC can be upgraded to ICN2038 with a refresh rate over 3840 Hz/s
With fast lock system, easy to install and dismantle
Flexible installation, can be stacked on floor or hung on truss
Adjustable curve. With angle regulator, the arc can be adjusted to 10 degree concave to 10 degree convex
The same panel is compatible with P3.91, P4.81, P5.95 and P6.25 outdoor and indoor LED display

Product Specification

Specification	Value
Lamp size	3535
Resolution/mm	10
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	10000/m²
Module resolution	32x16
Module size/mm	320x160
View distance	≥10m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	constant driving static
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours

Key Advantages

High brightness and high refresh rate, highly durable
Die casting Aluminum cabinets
Super Slim & Light Weight
Easy to maintain and fast installation
Low power consumption and long lifespan

Our Service

Guidance service: We provide online support for installation and usage. For large projects, we offer free training or on-site guidance (costs may apply)
Warranty period: 2 years after shipment
Maintenance principles: Quick response and problem resolution
Maintenance terms: Free maintenance during warranty period, material costs only after warranty

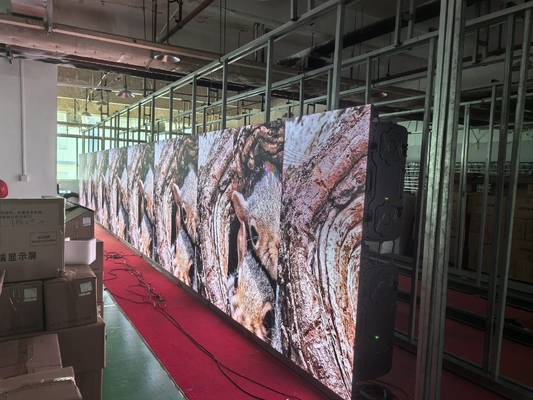

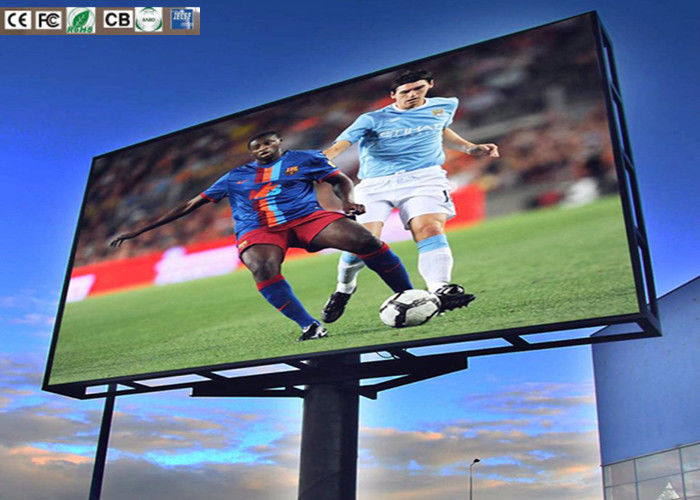

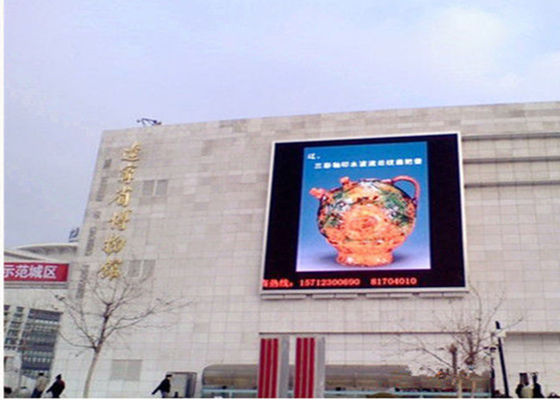

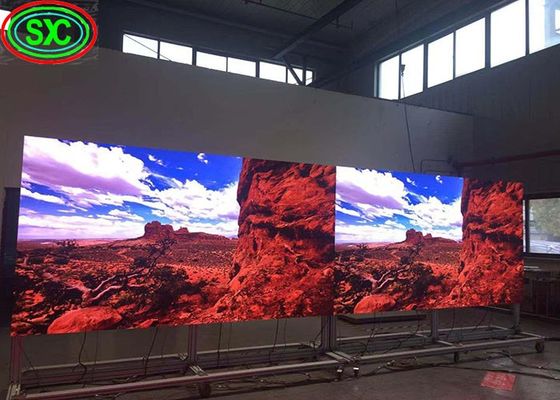

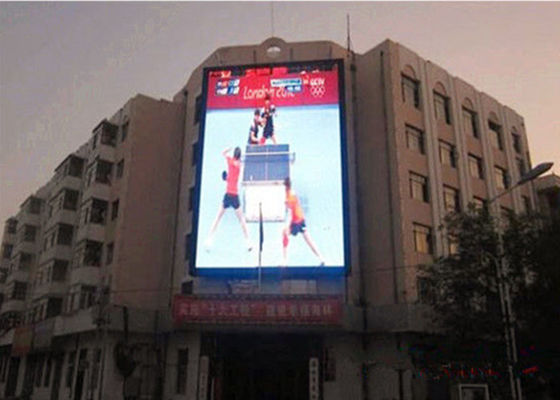

Product Images

Key Advantages

High brightness and high refresh rate, highly durable
Die casting Aluminum cabinets
Super Slim & Light Weight
Easy to maintain and fast installation
Low power consumption and long lifespan

Our Service

Guidance service: We provide online support for installation and usage. For large projects, we offer free training or on-site guidance (costs may apply)
Warranty period: 2 years after shipment
Maintenance principles: Quick response and problem resolution
Maintenance terms: Free maintenance during warranty period, material costs only after warranty
