Sports Stadium Advertising Scoreboard P4.81 LED Video Wall Rental 1R1G1B

Product Details:

Place of Origin:	China ,Guang Dong
Brand Name:	Shichuangxinke
Certification:	CE RoHS FCC CCC TUV UL
Model Number:	SCXK-P4.81

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meters
Price:	USD1200-1400per square meters
Packaging Details:	wooden box flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after deposit payment received
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Resolution/mm:	4.81	Pixel Configuration:	1R1G1B
Scanning Mode:	1/13 Scanning	Module Size:	250x250
Cabinet Size:	500x500mm	Certificates:	CE RoHS FCC CCC UL
Material:	Aluminum/Iron	Warranty:	3-5 Years
Application:	Stadium,airport,shopping Mall,street Advertising
High Light:	led video screen rental , rental led display screen

Sports Stadium Advertising Scoreboard P4.81 LED Video Wall Rental 1R1G1B

Stadium Advertising Features:

Easy Move;
Light weight, Good Heat Dissipation, Low Power Consumption, Convenient Installation,
Accurate position of the locating dowel makes the surface between cabinets flat;
Made through CNC, Assembly accuracy 0.1mm, Seamless Assembly;
No granular spots and mosiac on the screen, High-degree of color coordinates;
Clearer and vivider piture, Seamless, No chromatic;
Large viewing angle, Soft image, High resolution;
Multi-layer circuit PCB, Lower consumption, Fast Heat-emmiting, Longlife, High stability;
Aluminum Cabinet, Lighter and Slimmer, High accuracy;
Modules can be released from the whole screens to repair;
Working Noise: Less than 40DB, Have no influence on the viewing effect;
SMD2121 LED, Ultra-low decay, High stability, High color coordinates, Weather resistance;
High contrast ratio up to 5000:1;
SMD full color led chip.

Stadium Advertising Specifications :

Stadium Advertising SMD P4.81
Resolution/mm	4.81
Pixel configuration	1R1G1B
Pixel density/pixels/m²	43222/m²
Module resolution	52z52
Module size/mm	250x250mm
View distance	14-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>7500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/13 SCANNING
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted
	255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Service goal: Fast, In time, Customer first
1, Free inquiry before and after sell.
2, Warranty: 2 years.
3, Maintain and repair. Respond in time (within 4 hours). Repair within 24 hours for common failure, 72 hours for sever failure. Maintain regularly.
4, Provide spare parts and technical tolls for long-term.
5, Technology support for important action and programs.
6, Free system upgrade.
7, Free training.

Product usage:
The technical parameters is only for P4.81 rental led display

Product summary:
P4.81screen in the stage performance of the special effects have been used to create the most incisive, magnificent, very modern scene to personally on the scene visual feast.
P4.81 rental led display adopt SMD2525 THREE IN ONE lamp . More clear and with high refresh .
P4.81 die casting cabinet can be 15 degree curve design
p4.81 led display Adopt Constant current driver chip and input buffer chip. It can display video animation, image text information, etc.. By LED control System

Trade Terms:

1. Payment: T/T, 40% deposits, balance to be paid before delivering

2. Shipping freight are quoted under your requests

3. Shipping port: Shenzhen, Mainland China

4. MOQ: 1sqm

Our Services:

1. Your inquiry related to our products or price will be replied in 24hrs

2. OEM&ODM,any your customized lightings we can help you to design and put into product

3. Distributoership are offered for your unique design and some our current models

4. Protection of your sales area,ideas of design and all your private information

5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries : Brazil , Chile , Argentina, Poland, Europe , US america .

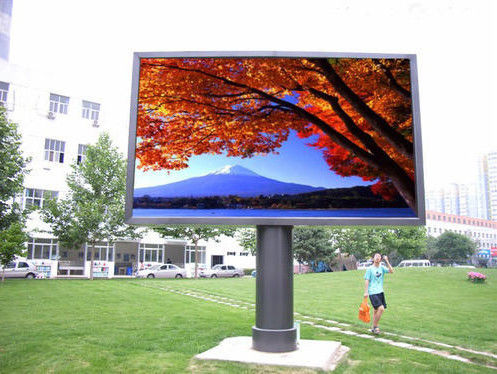

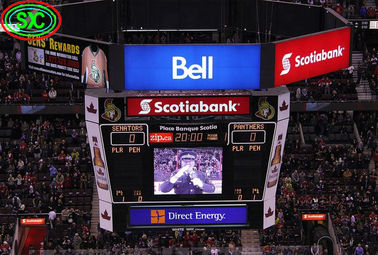

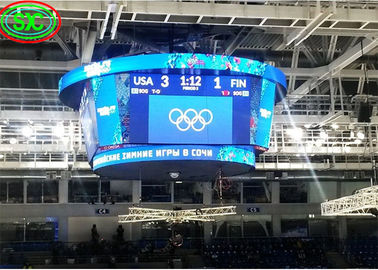

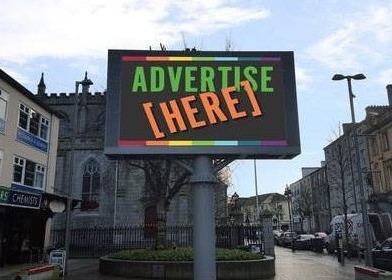

Our project:

Sports Stadium Advertising Scoreboard P4.81 LED Video Wall Rental 1R1G1B 5

Sports Stadium Advertising Scoreboard P4.81 LED Video Wall Rental 1R1G1B 6

Package and Delivery:

FAQ:

Q1: What's the warranty of your LED Display Screen ?

A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?

A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q3: Whats your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?

A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use ONBON or XIXUN control system.

Q5: How can you ensure the led display product quality?

A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, we will refund you .

Welcome to visit our website and inquire us more info,waiting for you all the time!!!
