Waterproof P6 Outdoor Full Color LED Video Wall 6mm Pixel IP66

Brand Name:	SCXK
Model Number:	P6
MOQ:	5 sqm
Price:	negotiation
Payment Terms:	Western Union,MoneyGram,D/P,T/T
Supply Ability:	5000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FCC/ISO/UL/CB

Pixels:

6mm

Tube Chip Color:

Full Color

Cabinet:

Iron Or Aluminum For Options

Pixel Configuration:

1R1G1B

Warranty:

3 Years

Pixel Density:

27778

Packaging Details:

flight case/wooden case/carton

Highlight:

led screen module

led sign module

Product Description

P6 Outdoor Commercial Full Color Advertising LED Video Wall Digital Billboards

Product Attributes

Attribute	Value
Pixels	6mm
Tube Chip Color	Full color
Cabinet	Iron or Aluminum For Options
Pixel configuration	1R1G1B
Warranty	3 years
Pixel density	27778

Product Description

P6 Outdoor Commercial Advertising LED Video Wall Digital Billboards 192*192mm

Product Function Introduction

High intensity and adjustable brightness to meet customer requirements based on environment
Excellent quality with superior light consistency, effectively solving mosaic problems
Clear, exquisite and realistic display for both pictures and characters
Wide viewing angles: 110° horizontal, 60° vertical
Individual LED lamp repair capability reduces maintenance costs and simplifies repairs

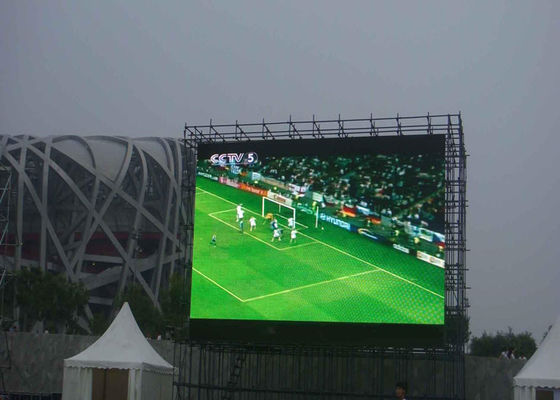

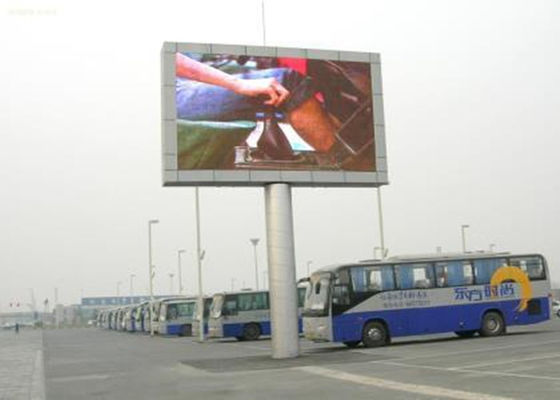

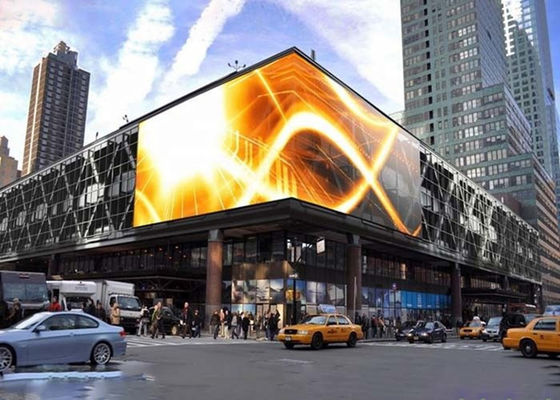

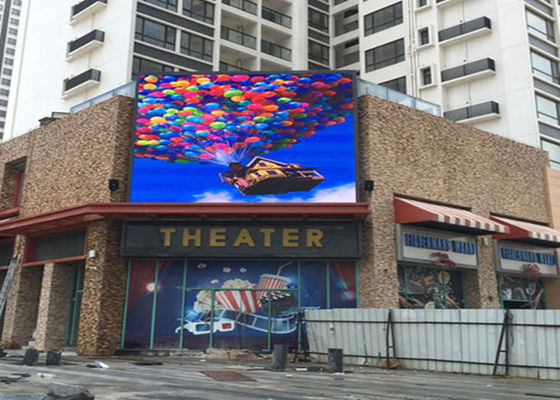

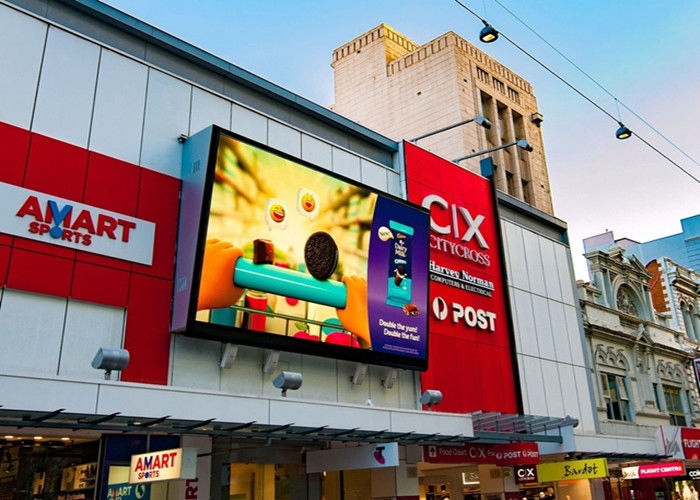

Ideal for sports venues, advertising, banks, stock exchanges, stations, ports, and indoor P6 displays

Features

3-stage aging process for reliability
Rigorous testing including salt spray, high voltage, temperature variation, waterproof, and vibration tests
Dual-channel heat dissipation for long service life and low attenuation
IP66 protection rating with patented waterproof and dustproof mask design
Anti-UV module mask and anti-oxidation frame prevent deformation under sunlight
Energy efficient design suitable for all outdoor weather conditions
High protection grade (IP65) for extreme climates from Arctic to desert regions
Lightweight design suitable for rental and mobile applications
Perfect for night clubs, entertainment events, press conferences, stadiums, stage backgrounds, TV shows, and concerts

Specifications

Parameter	Value
Resolution/mm	6
Pixel configuration	1R1G1B
Pixel density/pixels/m²	27778/m²
Module Resolution	32*32
Module size/mm	192x192mm
View distance	6-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>5500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120°
Vertical view angle	60°
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/13 SCANNING
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted (255 steps, no grey loss)
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white (brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check, temperature monitor (customizable)
Remote monitoring	Remote supervision and control, record potential fault, send warnings (customizable)
Software environment	WindowsNT, Windows1999, WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity (chromaticity coordinate)	±0.003
Power supply request	AC85-264V (50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof, dustproof, high temperature protection, anti-corrosion, anti-burning, anti-static, anti-vibration
Humidity (working)	10-95%
Humidity (storing)	10-95%
