High Definition SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard

High Definition SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard

  • High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard
  • High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard
  • High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard
  • High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard
High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard
Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixels: 4mm Tube Chip Color: Full Color
Cabinet: Steel Or Aluminum For Options Pixel Configuration: 1R1G1B
Warranty: 3 Years Brand: SCXK
High Light:

led screen module

,

led sign module

High Definition SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard







P4 Indoor Full Color LED Display Product Details



1.SMD 3 in 1 LED with wide viewing angle and great color uniformity;


2.Using high-quality LED chips, with high stability and reliability;



3.LED cabinet can be customized as your LED display size;


4.The cabinet can be simple cabinet or with the backdoor as your request;


5.Back service or magnet front service are available;



6.Adopt advanced production and processing technology to ensure the display quality and service life (100,000 hours);


7.Excellent service including free technical support,when in the warranty or out of the warranty;


8. Based on CE, FCC,ROHS Certification.



P4 Indoor Full Color LED Display

indoor SMD P4
Lamp size 2121
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 128x128
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard 0

High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard 1

Factory Show



High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard 2

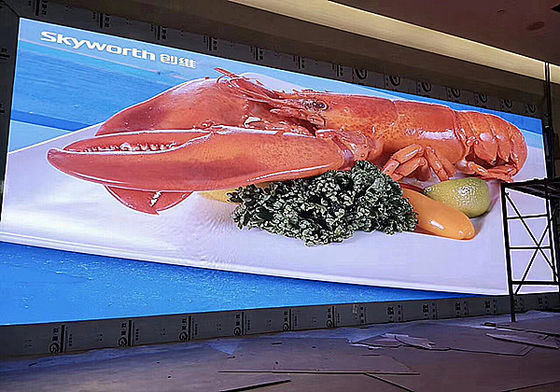

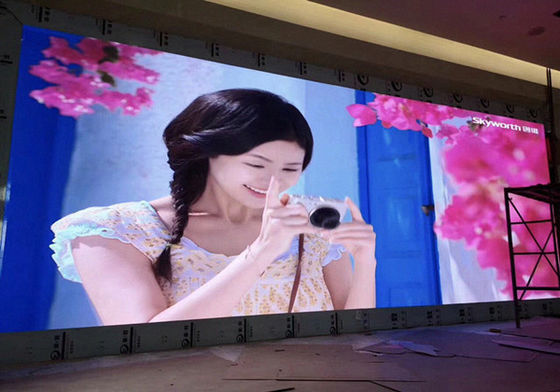

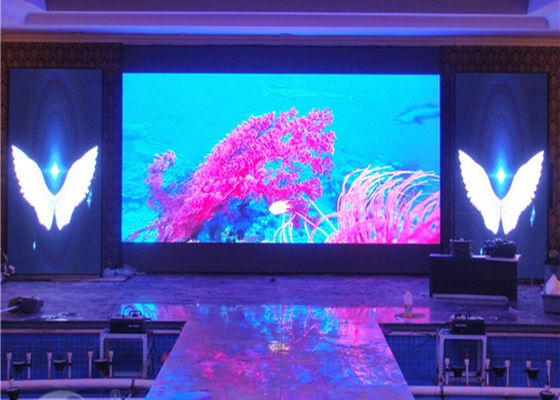

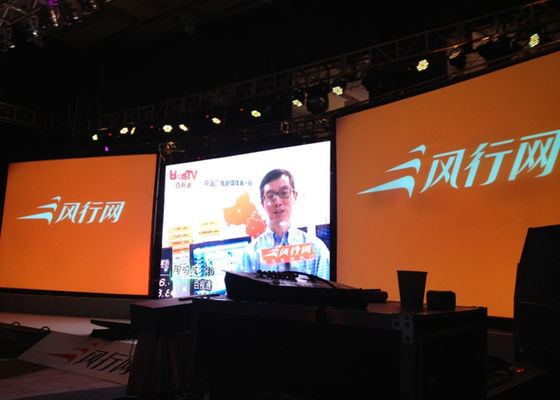

Project

High Definition  SMD2121 Stage Background Led Screen , Indoor LED Video Wall Displays Billboard 3



Q1:What's the min order quantity?

A: LED screen 1 sqm / LED module 100pcs

Q2: What is the payment method?

A:We support a variety of payment methods. Normally by T/T,30% down payment,70% balance paid before shipping.

Q3: Is it ok to print my logo on led display product?

A: Yes, of course. If you need, pls inform us before our production.

Q4: How long is the delivery time?

A: It's about 15-25days after confirmation of the order.

Q5: How do you ship the goods and how long does take to arrive?

A: We usually ship by sea or air. By sea is about 30-40days; by air is about 3-7days.

Q6: What's the control system do you use?

A: Our standard control system is Linsn or Novastar. Also support other controlling system, like Huidu,Sheenled,Colorlight etc.

Q7: Do you have any certification for LED display?

A: Yes, we have CE,ROHS,FCC certification.

Q8: How about the guarantee of led display?

A: We guarantee all our displays, modules, spare parts for two years.

During this time, we will replace or remand our goods for free if there is something wrong with them.
